Einstar 2

Name: Einstar 2
Brand: SHINING 3D
SKU: C011274
Price: 1050.00 GBP
Availability: InStock

Brands: SHINING 3D

£1,050.00 (excl. VAT)

The EINSTAR 2 is a lightweight wireless handheld 3D scanner designed for fast, accurate, and user-friendly scanning. Featuring hybrid blue laser and infrared VCSEL technology, it delivers high-resolution full-color 3D scans for reverse engineering, 3D printing, design, education, automotive, and creative applications. Its compact wireless design and advanced tracking make professional-quality scanning more accessible than ever.

Product successfully added to the Quote List

Compare

Add to wishlist

SKU: C011274 Categories: 3D SCANNERS, 3D Scanning, Digital Fabrication Brand: SHINING 3D

Description
About Brand

Description

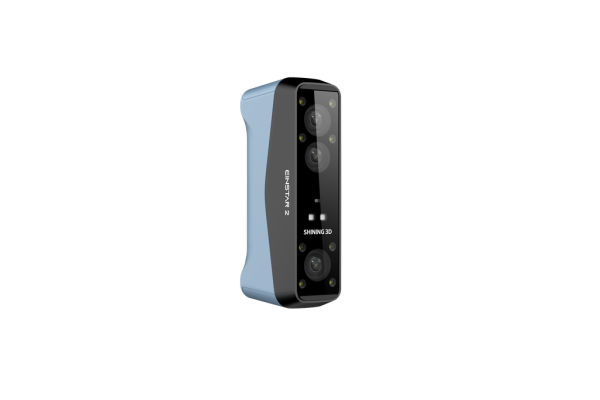

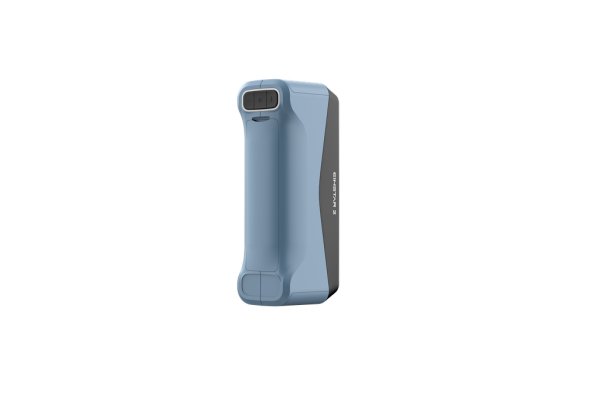

Shining 3D EINSTAR 2 3D Scanner

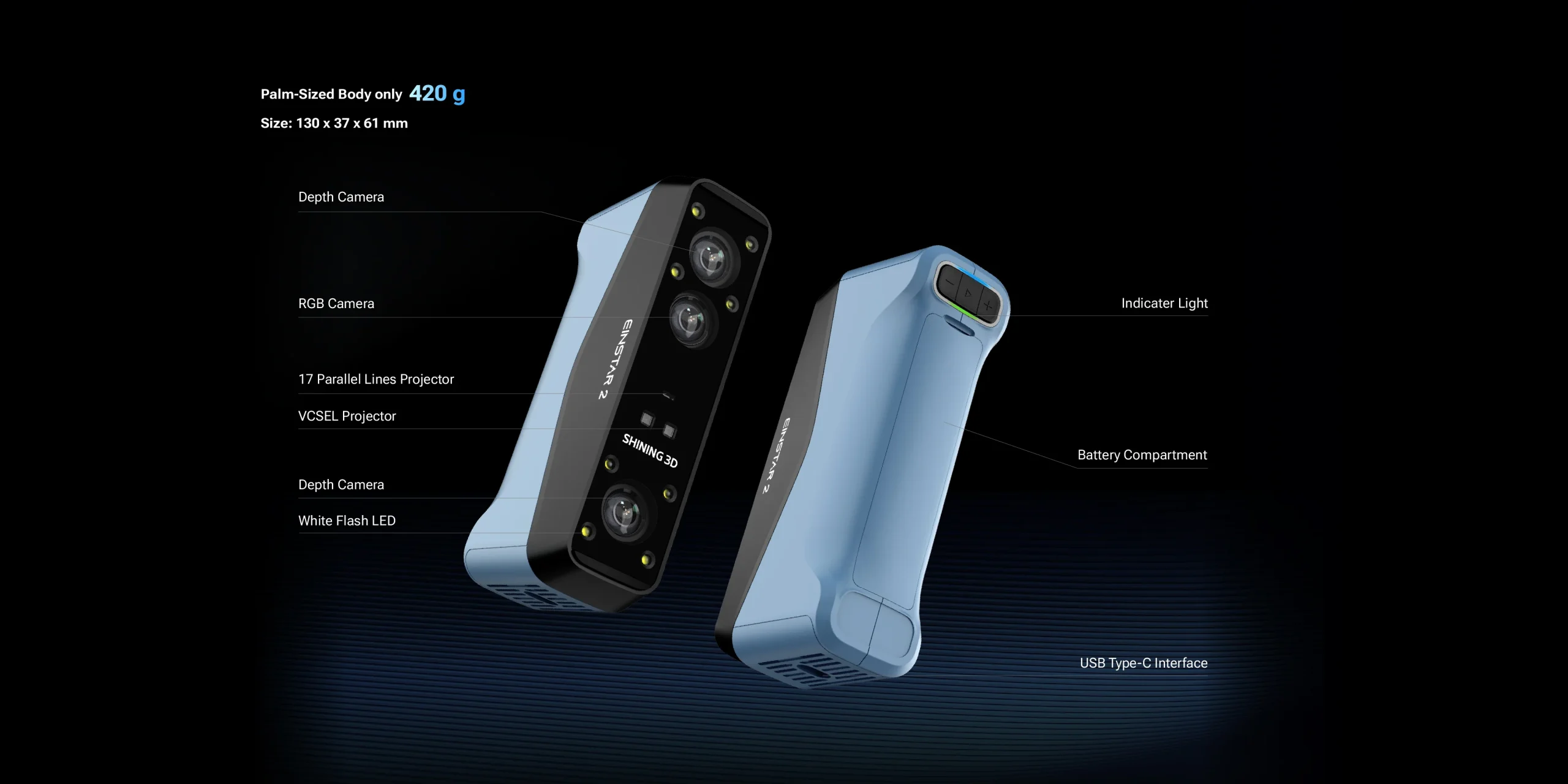

Shining 3D EINSTAR 2 3D Scanner Features

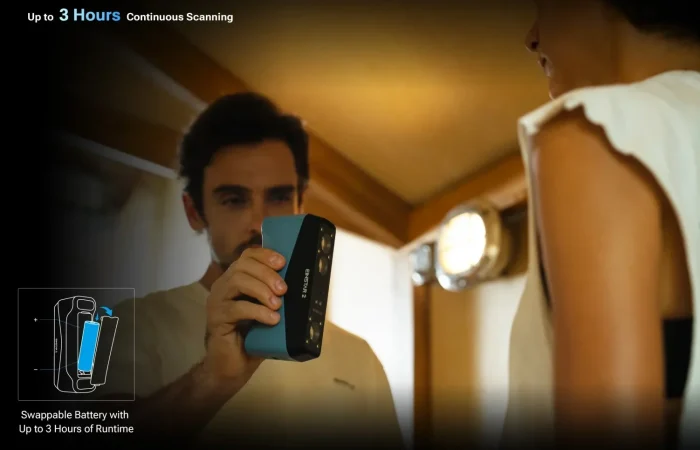

EINSTAR 2 Truly Wireless

Truly Wireless

The swappable built-in battery provides up to 3 hours of continuous scanning without interruption. Enjoy complete freedom with no cables, no extra hub, just effortless scanning wherever inspiration takes you.

Cable connection is also available if needed.

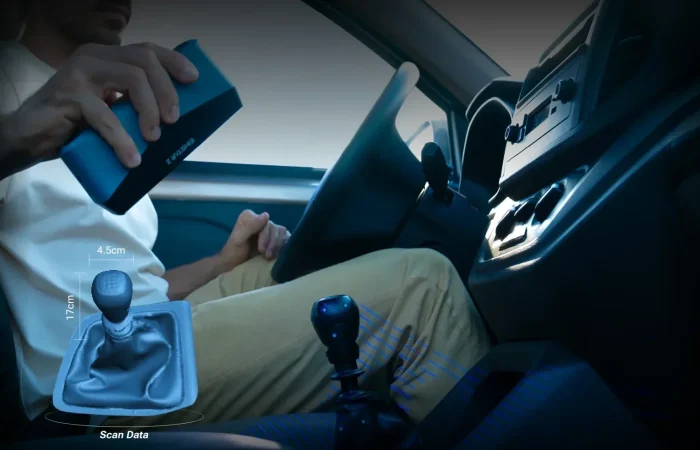

EINSTAR 2 Palm Sized Scanning

Palm Sized Scanning

Compact, lightweight, and ergonomically designed for ease of use. With its updated structure and reduced weight of just 420 g, it is the perfect portable 3D scanning companion.

No Spraying Needed

EINSTAR 2 can easily scan a variety of materials, allowing direct scanning of black or reflective surfaces without the need for spray. Save time, avoid mess, and achieve precise results instantly.

EINSTAR 2 17 Parallel Laser Lines

17 Parallel Laser Lines

Your go-to solution for high-resolution scanning of fine details in small objects.
The dense array of 17 parallel lines enhances efficiency for medium-sized scans, cutting time and effort.
Improved performance on reflective and metallic surfaces.
High-speed scanning of up to 90 fps.

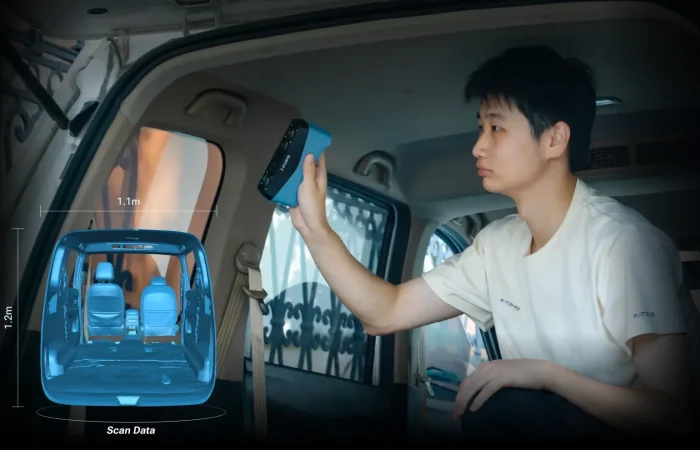

EINSTAR 2 IR VCSEL

IR VCSEL

Higher-resolution cameras for cleaner point cloud data.
Efficient large-object capture with abundant data in a single scan.
Stronger performance with black surfaces and outdoor environments.
Fast scanning of up to 20 fps.

Scanning Outdoor

With strong performance in varied lighting and challenging settings, EINSTAR 2 enables dependable 3D scanning anywhere — not just in the studio. Take it outdoors with confidence: Laser HD mode functions in lighting up to 110,000 Lux, and IR Rapid mode up to 70,000 Lux, ensuring crisp, accurate data even under bright conditions.

Realism as you can see: The integrated RGB camera captures vibrant, true-to-life colours in every scan, making it ideal for art digitization and creating immersive VR/AR experiences.

Lifelike Portrait Scanning: Using infrared light for a safe and comfortable experience, it captures full-body data in just 60 seconds.

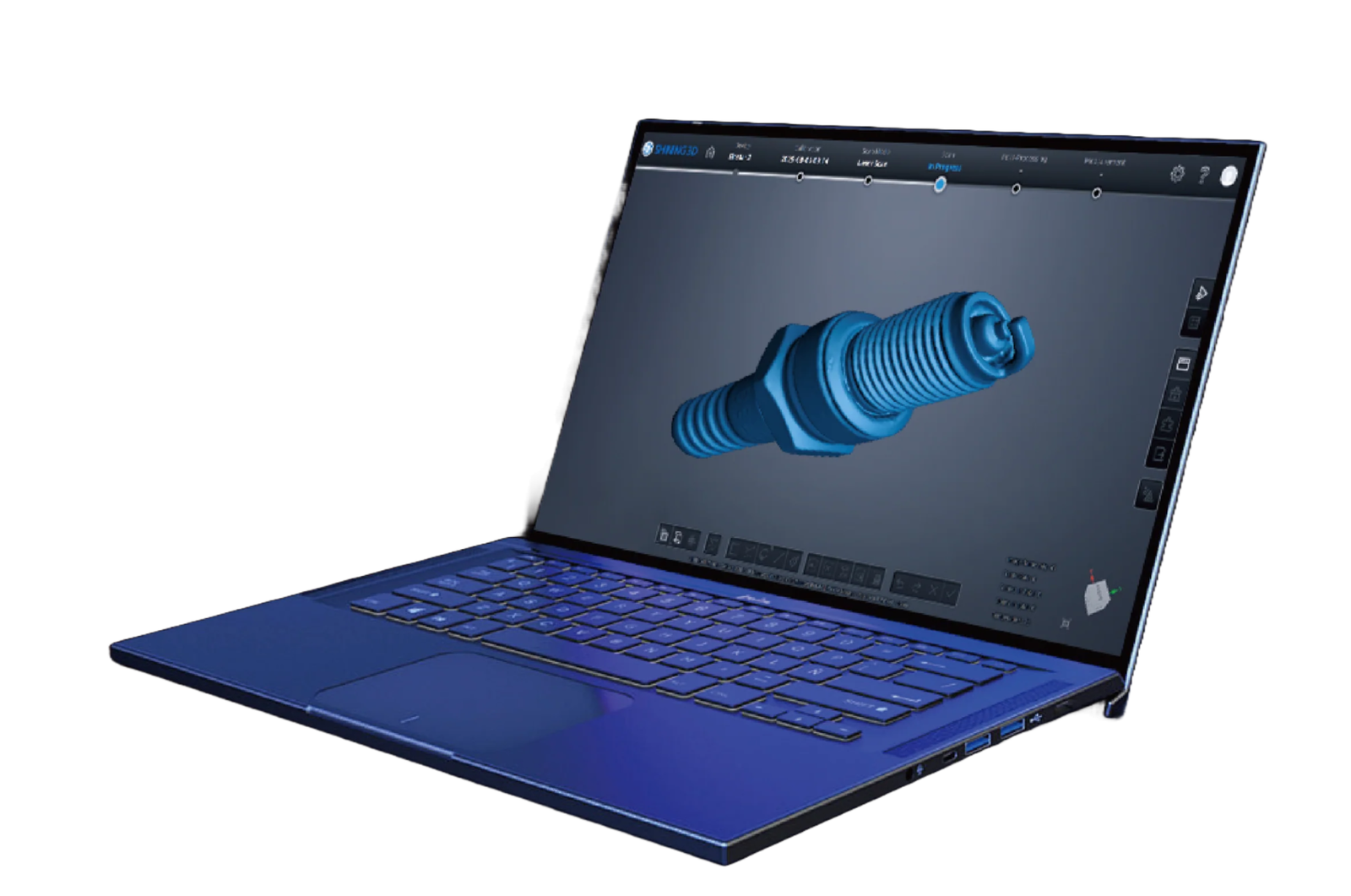

EXStar Hub

EXStar Hub is a user-friendly software platform designed for EINSTAR Rockit and EINSTAR 2, offering a unified interface that streamlines workflows, minimises system load, and boosts performance. It enables faster scanning, improved mobility, and reduced operating costs. With enhanced visuals and simplified controls, EXStar Hub also delivers powerful tools for model processing and refinement.

Shining 3D EINSTAR 2 FAQ

What is the advantage of the 17 parallel laser lines compared to other laser patterns?

The 17 parallel laser lines are a SHINING 3D innovation, offering an ideal balance between speed and detail. Compared to a 7-line pattern, it provides high-quality detail while expanding the scanning range for medium-sized objects, completing scans more quickly. This design serves as a cost-effective middle ground between parallel-line and crossed-line systems, giving EINSTAR 2 versatile scanning capabilities similar to scanners with multiple dedicated laser sources.

What is the object type and size EINSTAR 2 can scan?

From small details of 5 mm to large scenes of 10 m, EINSTAR 2 is up to the task. It offers two modes: laser mode for small to medium objects and infrared mode for larger items and expansive areas. This versatility enables it to handle a wide range of materials, including black and reflective surfaces.

What is the PC configuration required?

Windows 11 Professional 22H2, 64-bit
Graphics card: NVIDIA GeForce RTX 3060 Laptop GPU or above
VRAM: 6 GB or above
RAM minimum: 32 GB DDR5 dual-channel
RAM recommended: 64 GB or above DDR5 dual-channel
Interface: USB 3.0
Processor: 13th Gen Intel Core i7-13700H or above
For a smooth marker-free laser scan experience, 64 GB RAM is necessary.

About Brand

SHINING 3D

SHINING 3D develops high-accuracy 3D scanning, metrology and digital dentistry solutions for a wide range of users, from engineers and designers to educators and dental professionals. Its hardware and software help capture real-world objects accurately, supporting reverse engineering, inspection, design and scan-to-print workflows.
