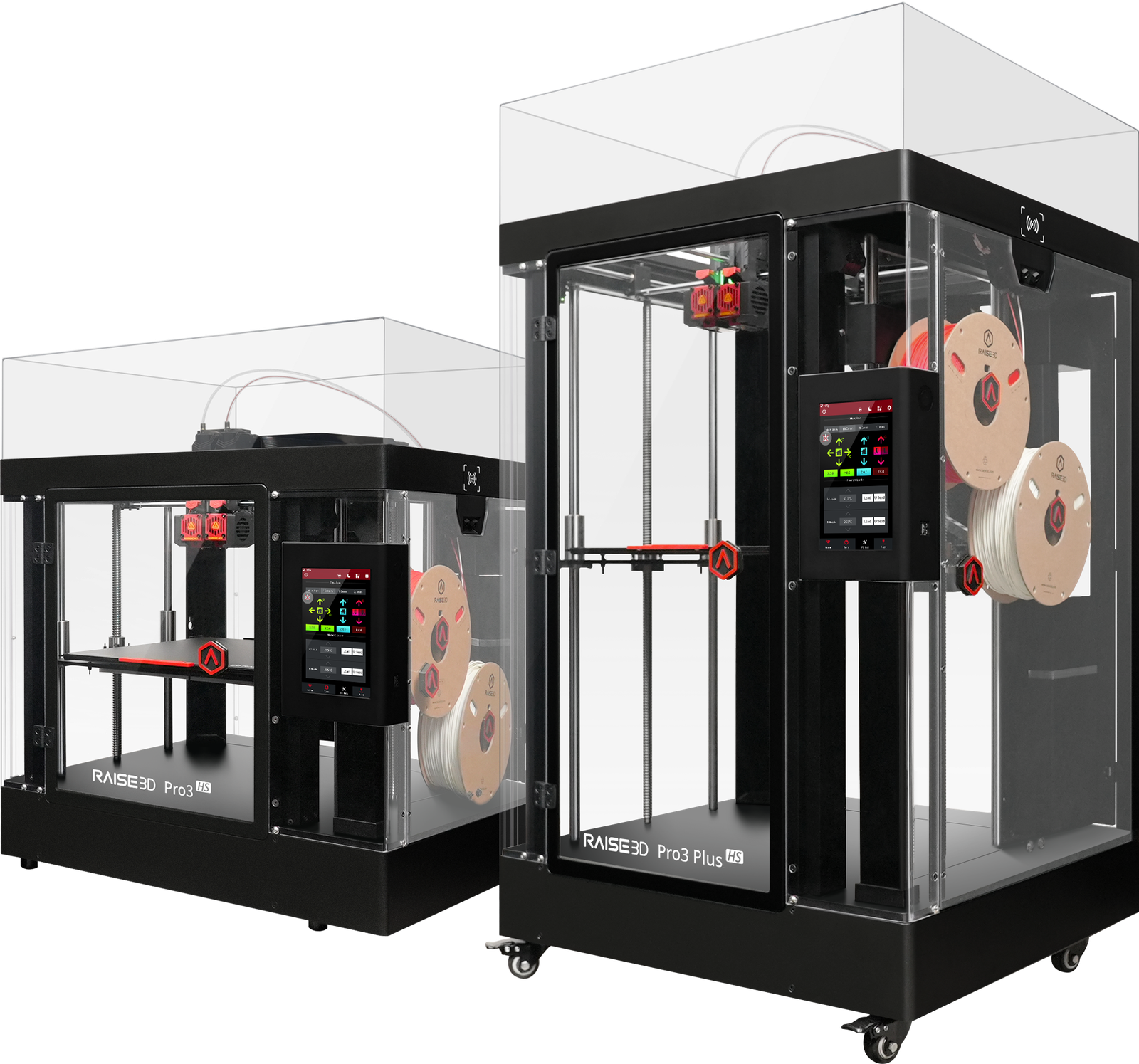

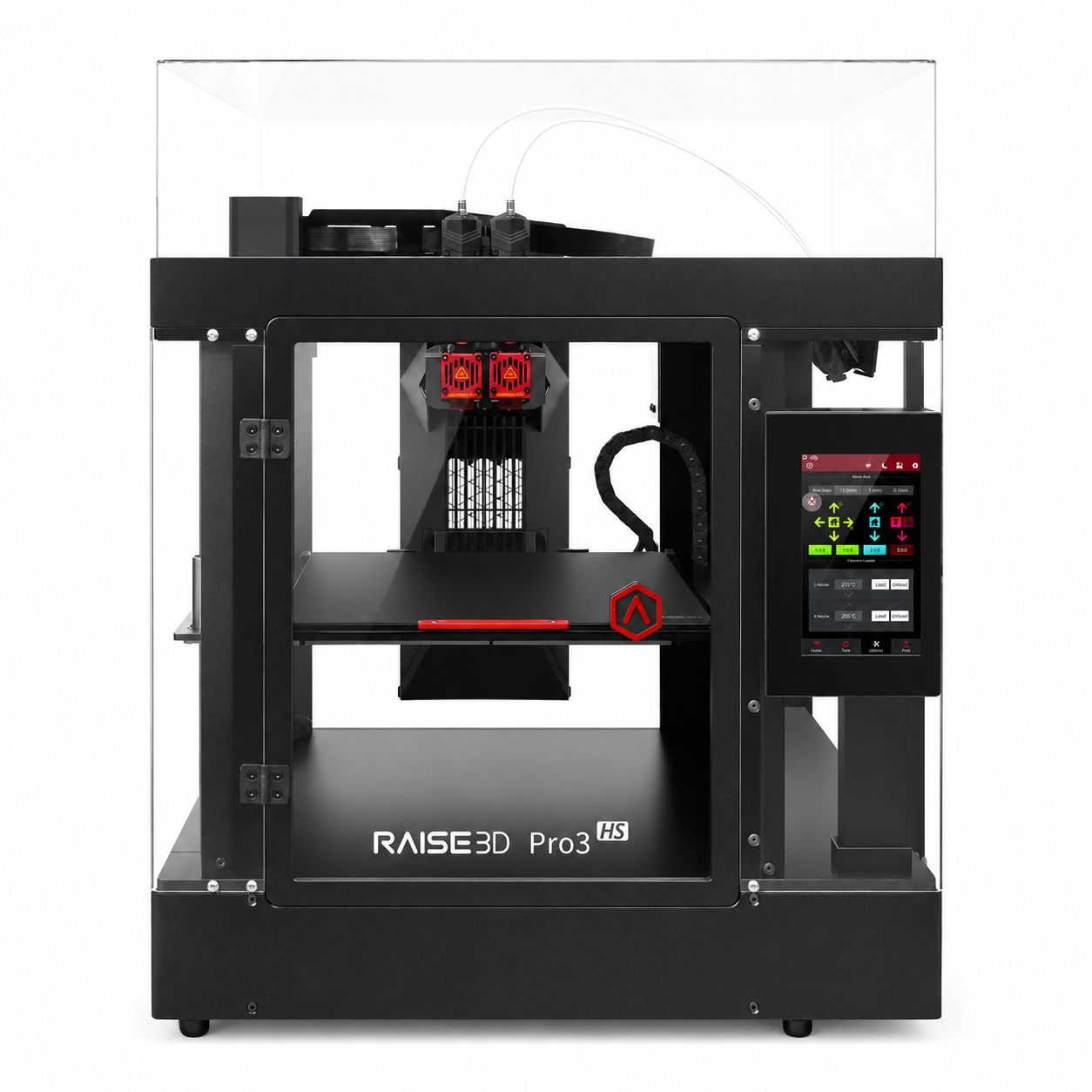

Raise3D Pro3 HS Series

• Built-in Hyper FFF® Technology:

• Motion Control System Upgrade:

• New Printing Build Plate:

• 2.5kg Large Roll Storage Boxes (sold separately):

• Hyper Core® Filament and New Hot-end Come in the Box:

• Automatic Filament Identification: The Pro3 HS Series is equipped with an RFID sensor to prevent incorrect material usage. This feature will be available once the spools support RFID tagging.

Automatic Filament Switching:

High Speed Printing with High Performance Composite Materials

The Raise3D Pro3 HS Series supports 200-300 mm/s high-speed printing of composite materials, including the Hyper Core and Industrial high performance materials for end-use applications, meeting the high standards and requirements from users, enhancing both production efficiency and product quality. As a result of this high performance composite material support, the resulting printed parts perform effectively even in the most demanding end-use applications.

• High Performance Composite Materials
• Open Filament Program

Enhanced Speed and Accuracy for Industrial Applications

The Raise3D Pro3 HS Series incorporates Hyper FFF® technology for precise and reliable high-speed printing with Hyper Speed technology providing a high-flowrate hot end and active vibration reduction algorithm. Capable of printing at standard speeds of 300 mm/s, the Pro3 HS Series is equipped with a closed-loop stepper motor in the transmission system, enhancing extruder movement control to achieve more precise high-speed printing without losing steps. The new build plate offers uniform magnetic adhesion, reducing model warping. An optimized coupling enhances motion stability, while the robust all-metal frame ensures smooth movement and precise positioning, resulting in high-quality prints.

• Built-in Hyper FFF® Technology
• Closed-loop Stepper Motor
• Optimized Couplings
• New Printing Build Plate
• Tried and Tested All-Metal Framework

Maximize Production Efficiency with Minimal Manual Intervention

The Raise3D Pro3 HS Series features an auto filament switching function, enabling uninterrupted production. With the capability to print using two larger 2.5 kg filament spools, this machine can now continuously print with up to 5 kg of material. The newly added RFID filament sensor identifies the filament and verifies the necessary parameters to prevent incorrect material usage. Additionally, the auto filament unloading function reduces manual intervention, resulting in higher production efficiency and less labor involvement.

• 2.5 kg Large Roll Storage Boxes
• Auto Filament Switching
• New RFID Filament Sensor
• Auto Filament Unloading

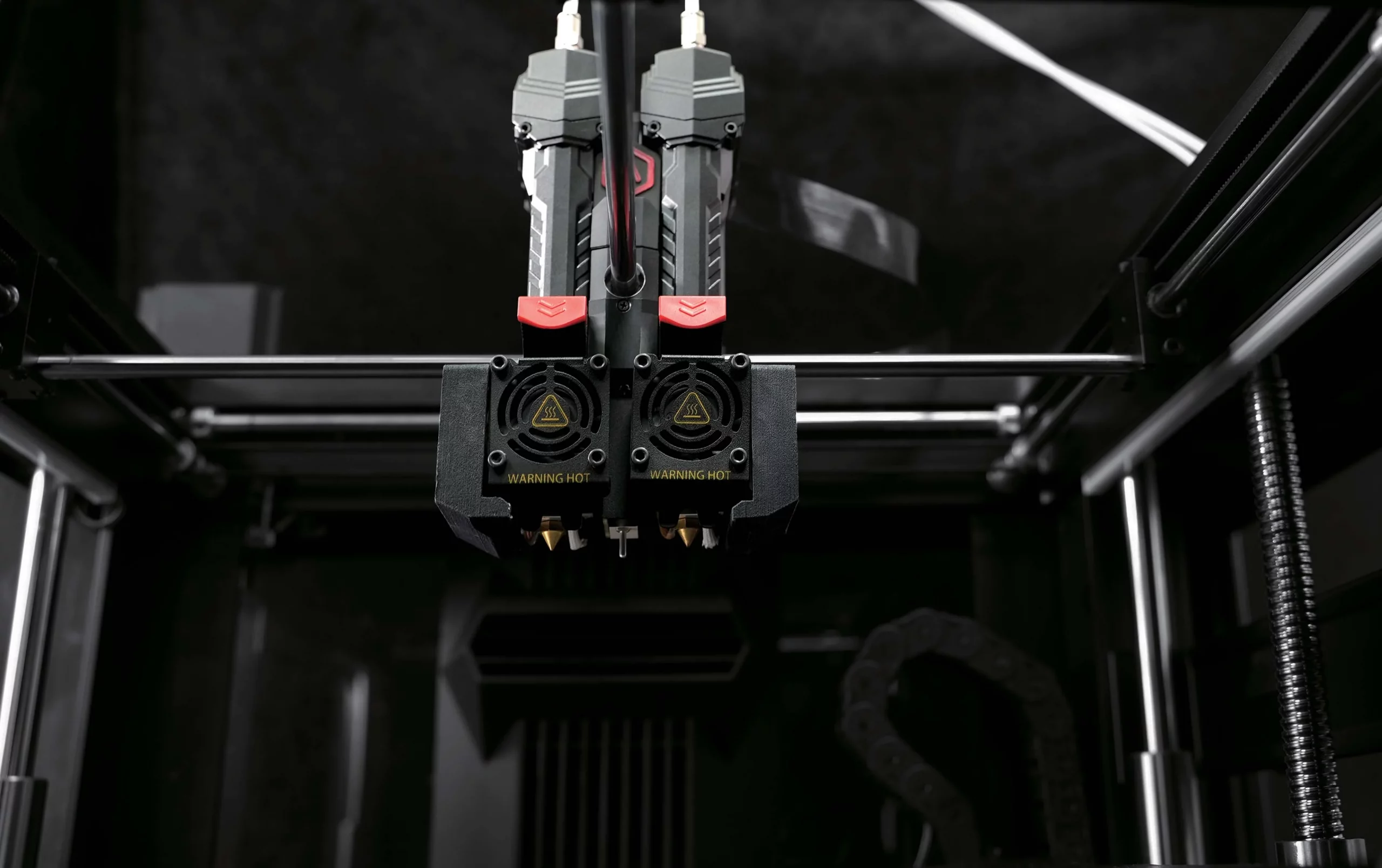

Independent Modular Extruder with Detachable Hot End

• The Pro3 Series is equipped with an independent modular extruder with a dual extrusion structure. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow convenient disassembly and replacement of components.
• The hot end of the Pro3 Series is easy to remove, facilitating the replacement and maintenance of the hot end.
• Users can also easily take off the front cover of the extruder to accurately locate common printing impediments such as filament jams.

Auto Bed Leveling

Auto bed leveling improves bed adhesion and allows the extruder to adjust to even the most minor of surface contour changes for better final print quality.

Flexible Build Plate

The flexible build plate can be bent to easily remove 3D printed parts while minimizing potential damage to the final print. The Pro3 Series is also compatible with metal build plate, and high temperature build plate made of 100% pure borosilicate glass.

Air Flow Manager & HEPA Air Filter

• The Air Flow Manager of the Pro3 Series improves heat dissipation and air circulation, and creates a stable environment inside the print chamber. Equipped with a HEPA air filter, Air Flow Manager can also filter and clean the air inside the chamber.
• The Pro3 Series uses HEPA air filtration to clean the air of any particles (including nano-particles) released during the 3D printing process. The HEPA air operates silently, quietly working in the background of any work area.

Lightweight Cable with Digital Temperature Measurement

The Pro3 Series replaces the drag chain cable with a lightweight cable, to reduce the weight of the extruder and keep the center of gravity in the middle during printing for more stable print quality. The Pro3 Series also uses digital temperature measurement, for accurate and anti-jamming temperature reading.

EVE Smart Assistant

• The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job.
• It has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time.
• It also helps reduce maintenance time and communication costs for an efficient maintenance process.

Raise3D Pro3 HS Series Technical Specifications:
