BCN3D EPSILON (W27) Special Bundle Offer!
£6,533.46 Original price was: £6,533.46.£5,445.00Current price is: £5,445.00. (excl. VAT)
BCN3D EPSILON (W27) Special Bundle Offer!
Sale
£6,533.46 Original price was: £6,533.46.£5,445.00Current price is: £5,445.00. (excl. VAT)
Special Bundle Offer includes the W27 3D Printer + £500 RRP worth of any filament or accessories for FREE!
Once you place your order online we will contact you within 24 hours to confirm your selection of free materials and accessories. For any queries in the meantime please contact us at info@dream3d.co.uk

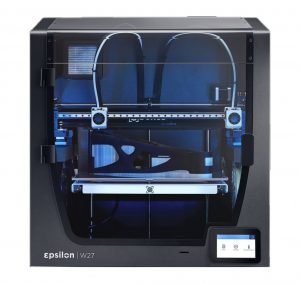

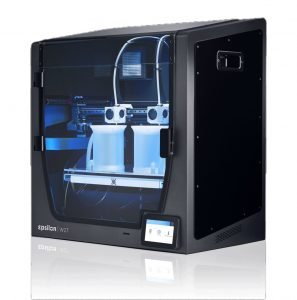

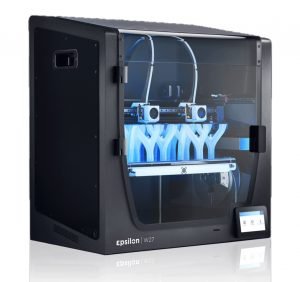

The BCN3D Epsilon is a powerful professional 3D printer, designed to deliver medium-scale parts with industrial-grade materials, thanks to features such as its passive heated chamber/full enclosure and powered by Independent Dual Extruder (IDEX) system, the BCN3D Epsilon delivers exceptionally strong functional parts with quality and precision.
Please scroll down to find full product specs, features, videos and more 👇
£6,533.46 Original price was: £6,533.46.£5,445.00Current price is: £5,445.00. (excl. VAT)
Availability: 2 in stock
Sale
£6,533.46 Original price was: £6,533.46.£5,445.00Current price is: £5,445.00. (excl. VAT)
Need help? info@dream3d.co.uk / 02070888163
Availability: 2 in stock
Buying in bulk or multiple items?
Ongoing Tech Support
Thousands of products available for next day delivery
Product Details
Pictures & Videos
Buying Options
Product details
Developed to enable innovators -from manufacturers to engineers to designers-, to easily create functional parts, prototypes, manufacturing jigs and tools; and anything else you can imagine, with the highest throughput for maximum efficiency.
Key Features:
-Printing volume: 420mm x 300mm x 220mm
-High-performance extruder from Bondtech
-IDEX system for independent dual extruder 3D printing allowing for multiple print modes
-Low volume production: With the duplication and mirror printing strategies
combined with the best industrial materials.
-End-use parts: Able to print with fiber filled materials providing the best resistance and endurance.
-Tooling: Able to print with different nozzles providing ultra-resistant parts.
-Prototyping: Able to print with ABS, PP, and PA for the best prototypes or concepts.
-Prototyping applications and fabrication of small-batch projects with the most advanced materials. Including the IDEX technology and the duplication and mirror modes, BCN3D Epsilon is able to provide the best number of solutions for different markets.
Multiple Print Modes
The Independent Dual Extrusion (IDEX) technology, which allows print in multiple print modes such as Single mode, Duplication mode, Mirror mode, Multi-material/Multi-colour mode and Soluble Supports mode – the BCN3D Epsilon turns out to be the perfect tool for cost-effective batch production.
Print soluble supports
Avoid geometric limitations and print the most challenging parts thanks to soluble supports. Just immerse the model into water and watch the supports vanish. Print at large scale using water-soluble supports, or fit multiple parts on a build plate, so you can get the dimensions you designed for.
High Performance Extrusion System
Bondtech™ Extruders and e3D™Hotends – using the high-tech Dual Drive Gears by Bondtech and e3D™ hotends, the BCN3D Epsilon offers a solid and reliable outcome, no matter the filament used.
Specifications
TECHNOLOGY | Fused Filament Fabrication (FFF) |
---|---|
PRINT HEAD | Independent Dual Extruder (IDEX) |
BUILD VOLUME | 420mm x 300mm x 220mm (X, Y, Z) |
FILAMENT DIAMETER | 2.85 mm |
LAYER RESOLUTION | 0.05mm – 0.5mm (depending on the nozzle diameter) / 0.05mm – 0.5mm (custom profiles) |
STEP ACCURACY X, Y, Z | 12.5 microns / 12.5 microns / 1 micron |
BUILD PLATE | Heated |
MATERIAL TYPES | Standard materials: PLA, PET-G, TPU 98A, PVA / Technical materials: ABS, PP, PA / Composite materials (only with Hotend X): PP GF30, PAHT CF15 |
BUILD PLATE TEMPERATURE | 120°C Maximum |
BUILD CHAMBER TEMPERATURE | 60°C (depending on operating temperature) |
EXTRUDER TEMPERATURE | 300°C Maximum |
BUILD PLATE LEVELING | Mechanical/Auto leveling |
NOZZLE DIAMETER | 0.4mm (installed) / 0.6mm / 0.8mm / 1.0mm / Hotend X: 0.6mm |
OPERATING SOUND | 49 dB(A) |
MAXIMUM POWER CONSUMPTION | 840W |
CONNECTIVITY | Wireless connectivity |
DISPLAY | Colour touchscreen |
Physical Dimensions
DIMENSIONS | 690mm (W) x 530mm (D) x 750mm (H) |
---|---|
NET WEIGHT | 33 kg (without filament spools) |
SHIPPING WEIGHT | 46 kg |
SHIPPING BOX DIMENSIONS | 800mm (W) x 600mm (D) x 1090mm (H) |
Software
SUPPLIED SOFTWARE | BCN3D Cura (recommended), Simplify3D, Slic3r |
---|---|
SUPPORTED OS | MacOS, Windows and Linux |
WIRELESS CONNECTIVITY | BCN3D Cloud |
FILE TYPES | *.gcode |
Warranty and service
WARRANTY PERIOD | 1 year |
---|
Buying Options
Debit/Credit Card (VISA/MASTERCARD/MAESTRO/AMERICAN EXPRESS)
Business Account Credit Terms – between 30-60 days – Please email us at Orders@Dream3D.co.uk
PayPal
Klarna
stripe
Bank Transfer – Please email us at Orders@Dream3D.co.uk
Business Finance Lease – Please email us at Orders@Dream3D.co.uk to find out more
