D1000 is embedded with new smart auto-rising dual-extruder kit hotend temperature up to 420 ℃, The hotend
can be replaced to different size one fastly. it is able to print not only huge PLA +water solubility materials PVA
for prototype with fastest speed, but also ABS, PC, Nylon, Carbon Fiber, Flexible and more high performance
material for direct application. The dual-hotend is easy to maintain and affordable to replace.

Outage Restore & Filament Detection

The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power on. No trace!

The printer will avoid invalid printing by stoping print and warning when filament runs out.

Linear rail and Servo motors

When it reachs to 1000mm+ length, small rail have big deflection. The D1000 accurate linear rail structure is very thick and strong. It won’t deform or loss precision after print head million times shock.

With servo motors, timeliness, fast response, no inertia, no delay. closed-loop control of position overcome the problem of lossing step. heat and noise are significantly reduced. It gives print model ultra high performance with high speed.

Hot Chamber + Filament Dry Room

60°C hot chamber ensures print quality for high performance materials. The fully enclosed chamber can block all external interference. Also this frame can reduce noises, at the same time to provide constant temperature, so that the model won’t deform.

The filament dry room provides chamber temperatures of 45°C and 65°C to dry 2*5kg/roll filament like PLA, nylon, PC, ABS and other materials with water absorption.

HEPA Air Filter

The air filter system can adsorb impurities and gases that generated by printing special filament like ABS, Nylon, PC, more safe and environmental protection which is more suitable for house, school, office space.

Camera Control Technology

Camera control technology allow customers to control printing process on speed,pause,temp.etc with an APP remotely, which can get best printing quality with shortest time without failure. A very useful feature on large model and long time printing.

Auto Leveling Platform

Use of 100 points through the high precision servo probe to save the level of platform flatness data at the initial, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.

Faurecia is a global advanced automotive system engineering and equipment supplier. They use the CreatBot 3D printer D1000 model to design and develop automotive seat molds, and are widely used in Audi, VW, NISSAN and GM motors.

The molds in the video is their typical 3D printing product produced with D1000 3D printer. The Bowl and lid are required withstand 100MPa, we choose Nylon-carbon fiber materials for the production with 50% infill. Finally the prints performance are excllet and passed their strict testing!

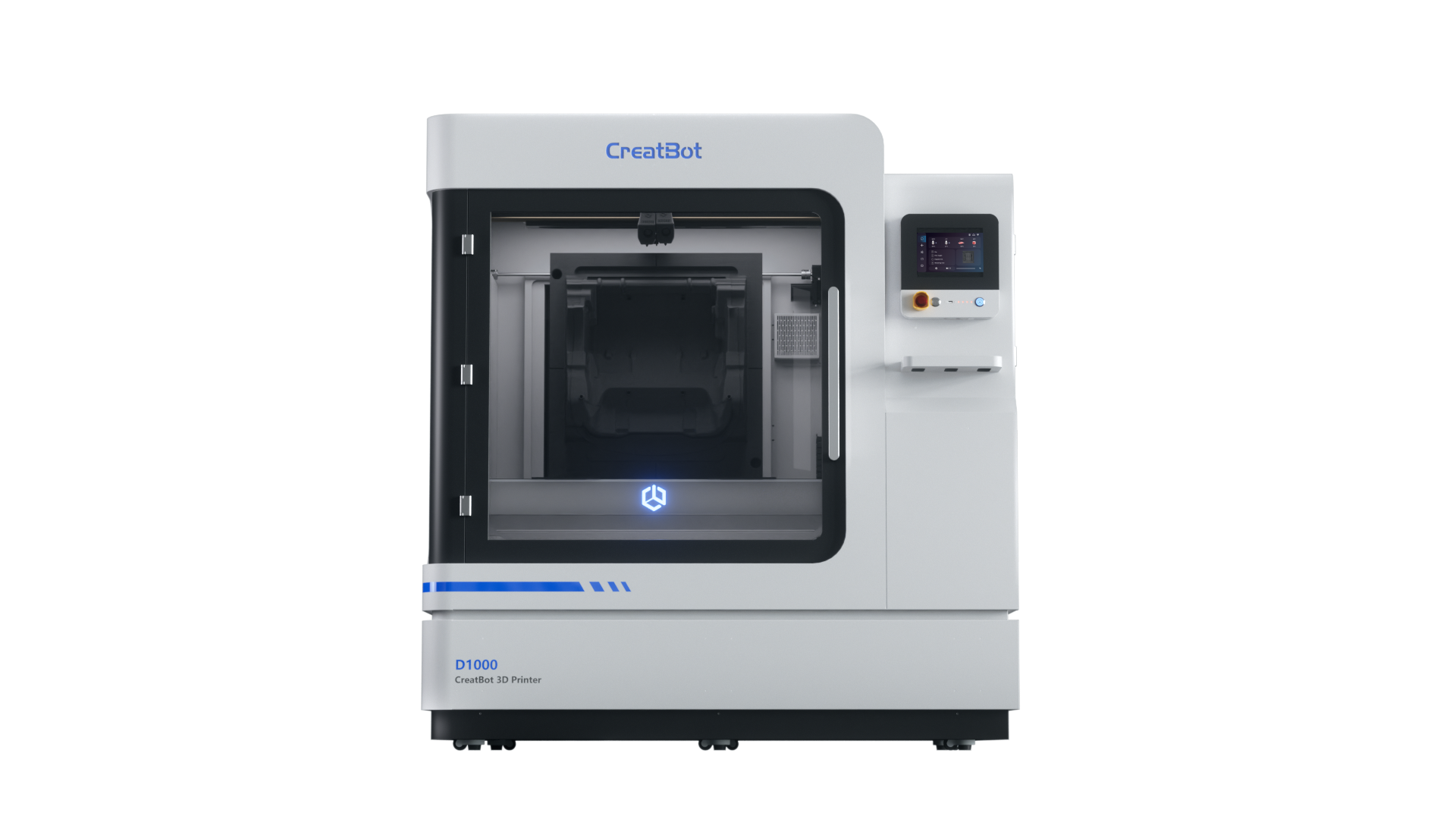

The D1000 is an industrial 3d printer that responds to market demand and is embedded with a new smart dual extruder kit, an enclosed heated chamber, automatic leveling system and camera control for big, impressive, prints.

Camera control technology allow customers to control printing process with an APP, which can get best printing quality with shortest time without failure.

With a fast-heating platform and hot chamber this high-resolution large-print workhorse produces incredible results with high-quality materials.

CreatBot D1000 sets a new standard in additive manufacturing and extends the material capabilities of large-scale 3d printers, it brings the possible to greatly reduce cost and time for more companies.

Download User Manual: creatbot.com/downloads/CreatBot_User_Manual_V7.3_D1000_en.pdf

Specifications:
