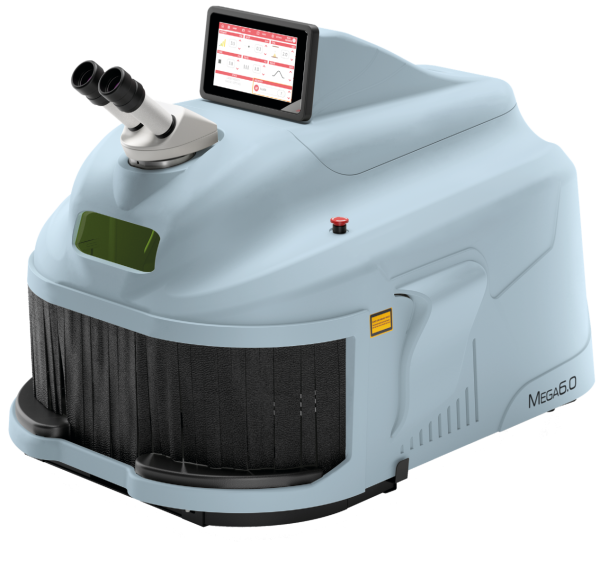

Elettrolaser Mega 5.0 Laser Welder

The Mega 5.0 is a professional desktop laser welder equipped with a large welding chamber and a double cooling system specifically designed for productive workshops and laboratories that work for long periods of time and need the extra power and speed.

Please scroll down to find full product specs, features, videos and more



Categories: , , , , Brand:
Description

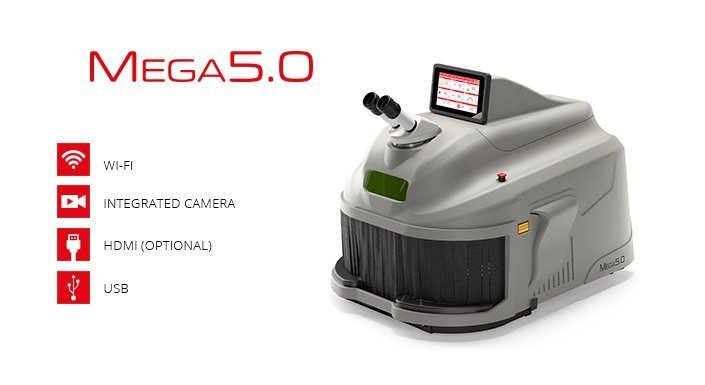

Introducing the Mega 5.0 – the new and improved MegaHIT

The Mega 5.0 is a professional desktop laser welder equipped with a large welding chamber and a double cooling system specifically designed for productive workshops and laboratories that work for long periods of time and need the extra power and speed.

Weld precious metals, fix porosity, repair, and manufacture watches/ jewellery/ eyewear plus much more effortlessly with the Mega 5.0

Main features:

  • Low maintenance
  • 3-years warranty
  • NEW highly resistant and eco-friendly outer shell
  • 7″ colour touch screen
  • High-quality integrated camera
  • 100 programmable memories
  • 10x Leica microscope
  • An improved safety shutter for optical safety
  • Internal joystick inside the welding chamber
  • Powerful LED lights for clearer vision
  • HDMI / USB as standard

Optional:

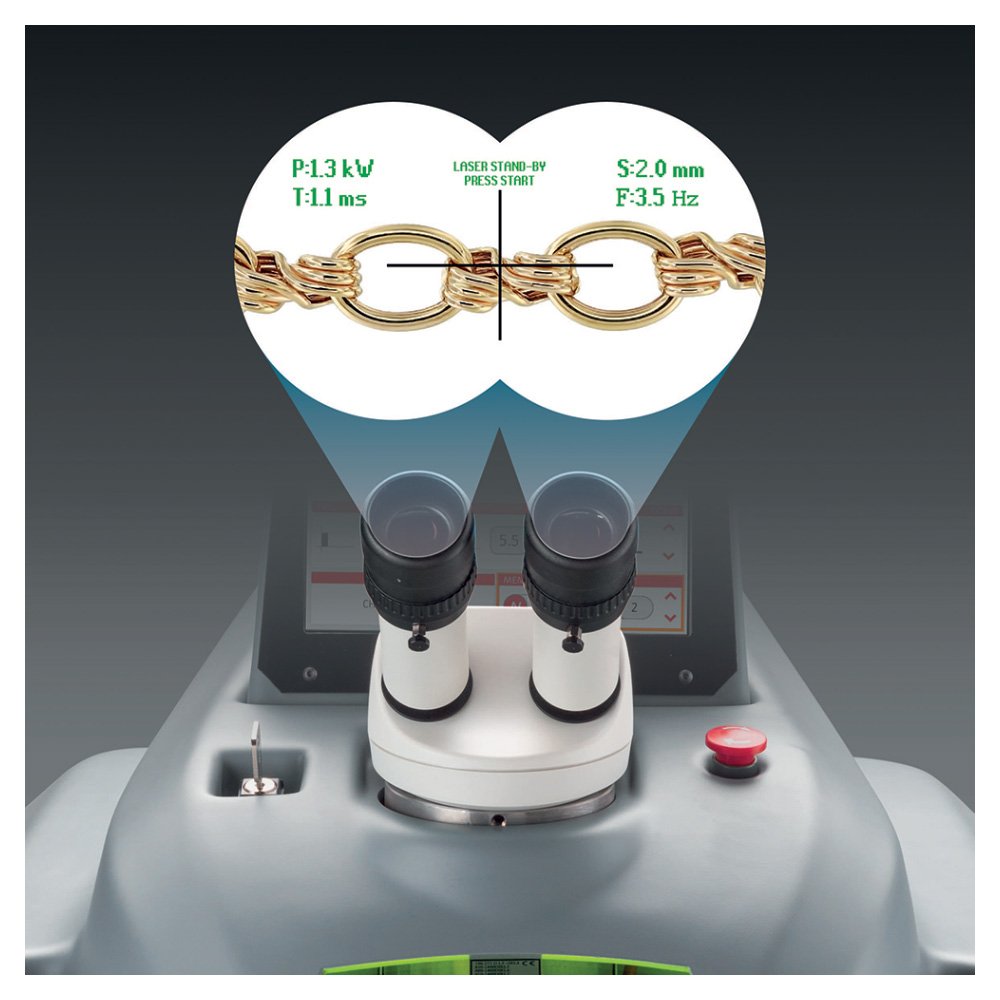

IPM (Integrated Parameters into Microscope)IPM (Integrated Parameters into the Microscope – this feature is an ultra modern way of using the laser with a floating display of the parameters, making them visible to the operator through the microscope so there is no need to look away and therefore increasing your productivity and comfort of use.

3D vision – optional module

The Mega 5.0 can also be equipped with an innovative 3D vision system for stereoscopic viewing of the welding area

  • Facilitates good posture
  • Reduces eye strain
  • Comfortable viewing

MEGA 5.0 3D laser welder







Specifications:

MEGA 5.0
LASER SOURCE AND WAVELENGTHNd: YAG 1064 nm
AVERAGE POWER100 w
PEAK POWER9 kW
ENERGY230 J
IMPULSE TIME0,1 ÷ 25 ms
PULSE FREQUENCY0,5 ÷ 30 Hz
SPOT DIAMETER0,2 ÷ 2,0 mm
SPOT SETTINGMotorised
WAVE PROGRAMSPulse Shaping 6 preset
MEMORIES CELL STORED100
INTERNAL CHAMBER CONTROLJoystick
EXTERNAL CONTROL7” Colour Touch Screen
INPUT POWER230 V AC, 50/60 Hz (110 V on request)
AMPERE10 A
TYPEDesktop
About Brand

ELETTROLASER

Elettrolaser is an Italian manufacturer of laser machines, founded in 2007 and based in Sona, near Verona. The company specialises in the in-house design and production of "Made in Italy" laser systems.

Elettrolaser produces laser machines for micro-welding, marking, engraving and cutting, widely used in the jewellery and precious-metals trade as well as in dental, medical and industrial mould-repair applications. Its welders and fiber markers are valued for their precision, reliability and strong technical support — backed by significant ongoing investment in R&D.
