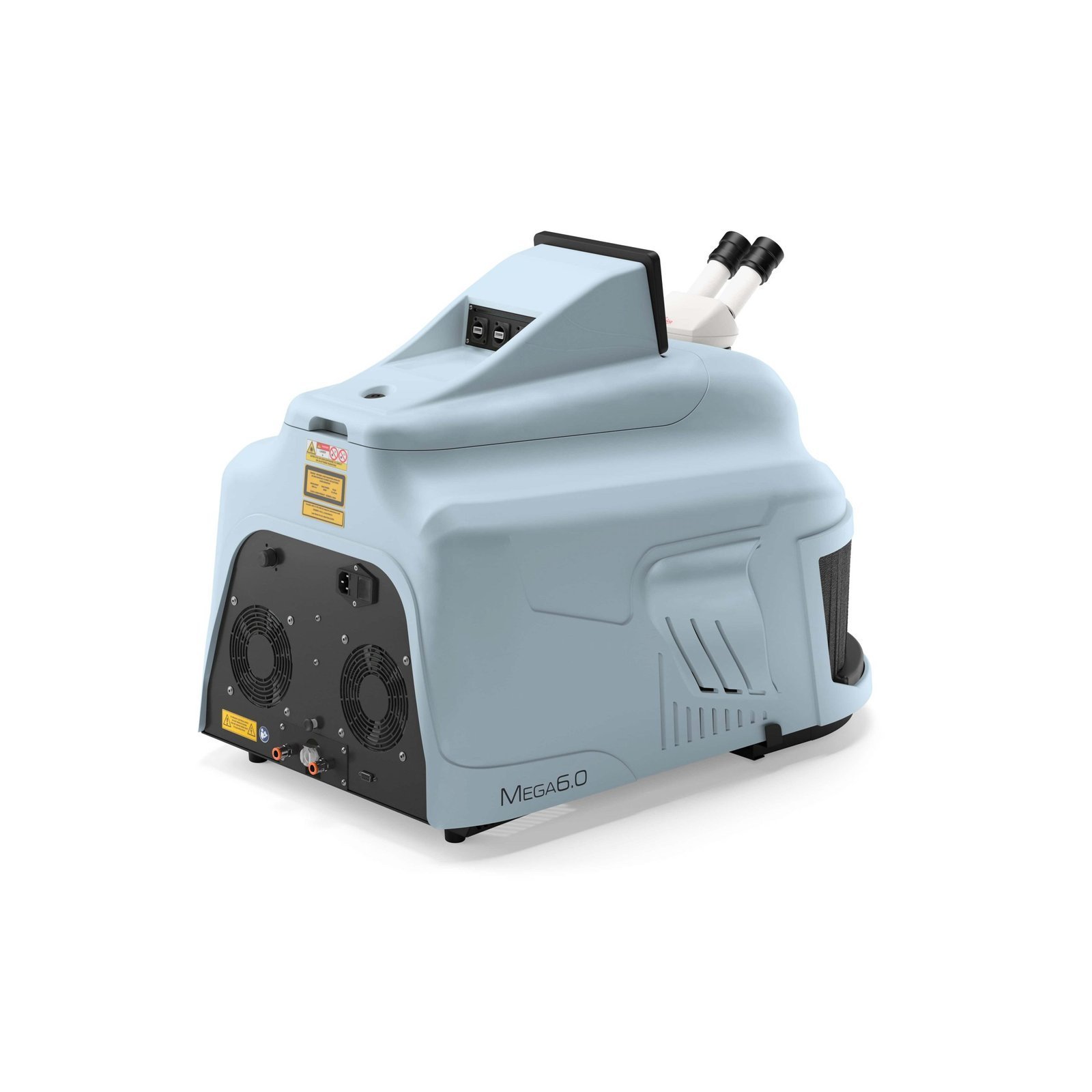

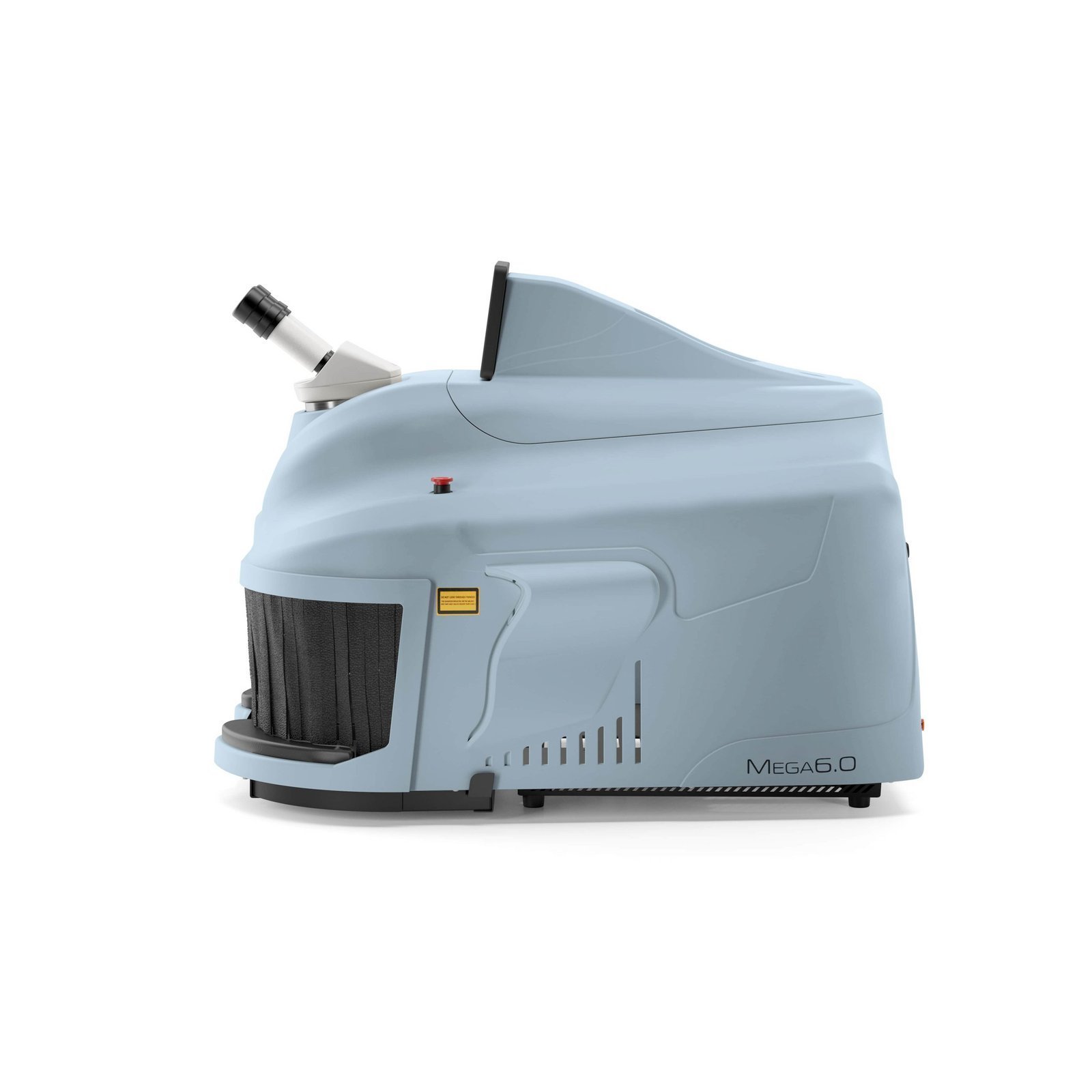

Elettrolaser Mega 6.0 3D Laser Welder

Brands: ELETTROLASER

Please scroll down to find full product specs, features, videos and more 👇

Compare

Add to wishlist

Product successfully added to the Quote List

Categories: Elettrolaser, Welders, Welding Brand: ELETTROLASER

Description

Mega 6.0 – Solving the silver dilemma

The Mega 6.0 is the evolution of the MegaSilver, inheriting all the best features of its predecessor. The Mega 6.0 is a heavy-duty desktop laser welder with a large welding chamber and double cooling system allowing it to sustain long work hours and mass production. It was created specifically for workshops and labs that mostly weld silver and/or other highly reflective materials. The all-new purpose built Mega 6.0 is also equipped with smooth spot technology, distributing your metal and any filler materials easily providing a cleaner surface finish of the weld.

Download brochure here

Main features:

Low maintenance
3-years warranty
NEW highly resistant and eco-friendly outer shell
7″ colour touch screen
High-quality integrated camera
100 programmable memories
10x Leica microscope
High brightness shutter for optical safety
Internal joystick within the welding chamber
Powerful LED lights for clearer vision
HDMI / USB port as standard

[Optional] 3D Vision:

The Mega 6.0 can also be equipped with an innovative 3D vision system for stereoscopic viewing of the welding area

Facilitates good posture
Reduces eye strain
Comfortable viewing

Specification:

MEGA 6.0
LASER SOURCE AND WAVELENGTH	Nd: YAG 1064 nm
AVERAGE POWER	100 W
PEAK POWER	10 kW
ENERGY	245 J
IMPULSE TIME	0,1 ÷ 25 ms
PULSE FREQUENCY	0,5 ÷ 30 Hz
SPOT DIAMETER	0,3 ÷ 2,0 mm
SPOT SETTING	Motorised
WAVE PROGRAMS	Pulse Shaping 6 preset
MEMORIES CELL STORED	100
INTERNAL CHAMBER CONTROL	Joystick
EXTERNAL CONTROL	7” Colour Touch Screen
INPUT POWER	230 V AC, 50/60 Hz (110 V on request)
AMPERE	10 A
TYPE	Desktop
