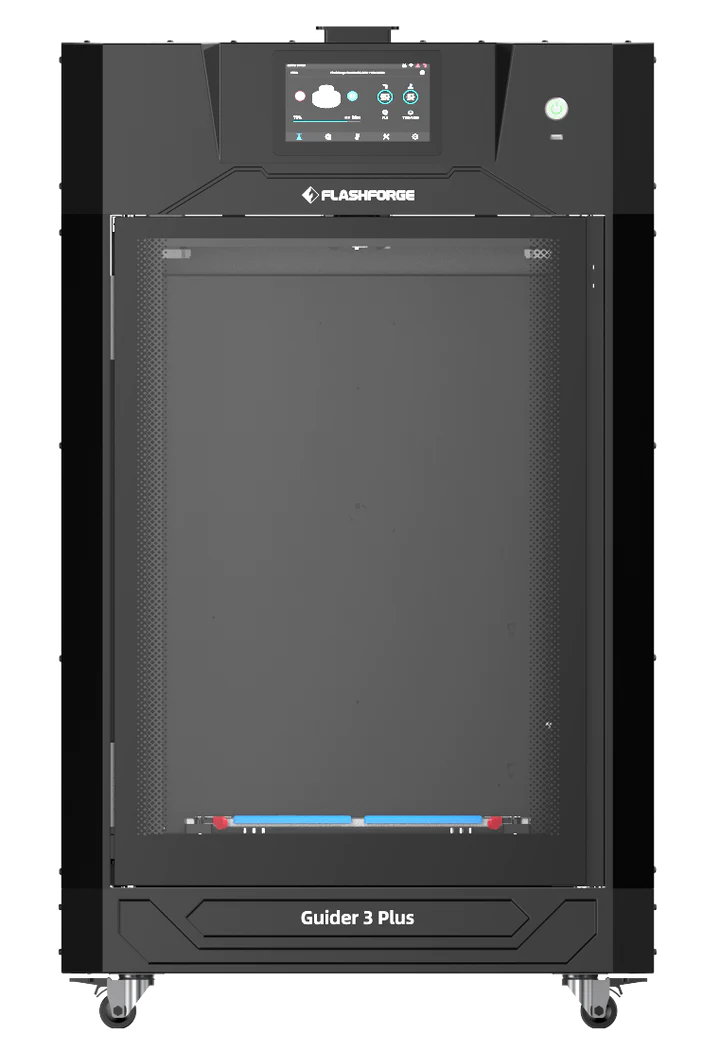

Flashforge Guider 3 Plus
Product Details
Pictures & Videos
Buying Options
Product details
Large space, expanding the boundaries
- 350*350*600mm super-large build volume.
- Extra-long Z-axis height, meeting the printing requirements of most models.
- offering flexible printing of models of various sizes.
Sealed Filament Drying Chamber
- Only 3 packs of desiccant can keep the humidity below 20% within 5 days.
- Equipped with a hygrometer to accurately monitor the ambient humidity.
Intelligent Multi-platform Management System
- Online printing via FlashCloud and multi-platform, convenient and efficient integrated equipment management.
- Remote real-time monitoring for worry-free production.
Quick Model Removal
- Flexible and bendable platform for easy removal, reducing damage to models.
- No spring nut design, no adjustment required.
Quick Nozzle Change
- The nozzle can be quickly removed and replaced, without fear of clogging.
- Save maintenance time without affecting the whole printing process.
Fast, stable and accurate
- 16mm dual Z-axis TBI ball screws.
- The platform can support a maximum load bearing capacity of 30kg.
- It reduces vibration, realizes accurate positioning of printing each layer, and improves the stability of printing large-mass models.
- 24/7 continuous and stable operation.
Specification
| Number of Extruders | 1 |
| Printing Accuracy | ±0.15 mm or ±0.002mm/mm |
| Positioning Accuracy | X/Y-axis 0.011 mm；Z-axis 0.0025 mm |
| Print Speed | 10 ~ 250 mm/s |
| Layer Height | 0.05 ~ 0.4 mm |
| Build Volume | 350 x 350 x 600 mm |
| Nozzle Type | Stainless Steel Nozzle |
| Nozzle Diameter | 0.4（0.4/0.6/0.8 mm） |
| Max Extruder Temp | 320 ℃ |
| Max Build Plate Temp | 120 ℃ |
| Print Bed Type | Magnetic Flexible Printing Bed |
| Compatible Filaments | PLA / PETG / ASA / ABS / PC / PA / PLA-CF / PETG-CF / PETG-GF / PA-CF / PA-GF |
| Machine Size | 635（L）*550（W）*1070（H）mm |
| Packaging Size | 775（L）*690（W）*1235（H）mm |
| Slicing Software | FlashPrint |
| Compatible Operating System | Windows XP / Vista / 7 / 8 / 10 / Mac OS |
| Input File Format | 3MF/ STL / OBJ / FPP / BMP / PNG / JPG / JPEG |
| Output File Format | GX/G / gcode |
| Compatible Slicing Software | Slic3r / Skeinforge / Cura（Need to set up） |
| Input Power Supply | AC100-240V |
| Output Power Supply | DC24V / 6.25A, 650W |
| Printing Connection | USB Cable / U Disk / Ethernet / Wi-Fi |
| Touch Screen | 7-inch LCD |
