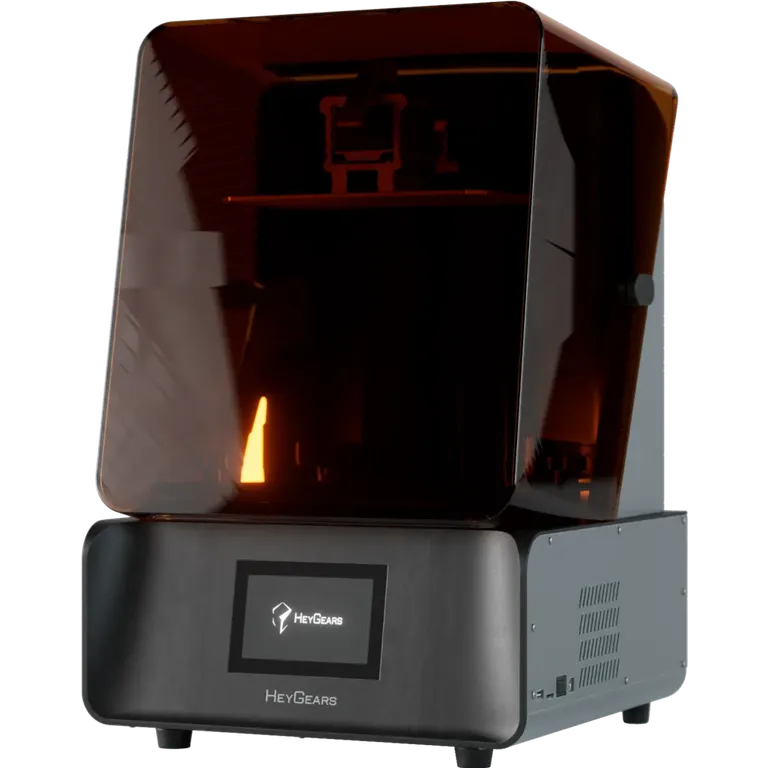

HeyGears UltraCraft Reflex RS 3D Printer

Categories: 3D Printers, 3D Printing, BRANDS, HeyGears, HOMEPAGE SLIDER - 3D PRINTERS, Resin 3D Printers Brand: HEYGEARS

Description

Reliable C5 Grade Z-axis Module

High repeat positioning accuracy ensures layer positioning errors are no more than 2 μm *. Tested with a 50 kg load across ten thousand runs.

Z-axis Repositioning Variation at 50 µm Layer Thickness

Click to View

Full-Field Precision Screen

Click to View

[videopress Qf720Ne7]

Adaptive Z-axis Compensation

[videopress VVIrPSMt]

Combinations of Different Angles

The process allows the RS printer to adjust the Z-axis compensation adaptively for each resin, to support up to 180 combinations of different angles, hole sizes and edge types.

Z-axis Compensation Comparison

This approach minimizes deformation and resin buildup on support surfaces, and reduces post-processing time compared to using just a single z-axis compensation parameter.

Built for High Speed: 4.5 s/layer Average Printing Speed*

Click to View

*Data sourced from HeyGears Lab. With high-speed water-washable resin PAWW10, the average printing speed for lattice models reaches 4.5 s/layer.
**Printer frame flex within ±2 μm.
***Cools screen temperature by up to 10℃ during printing.

Dynamic Motion Algorithm 3.0 : 33% Increase in Print Speed*

[videopress QEZlQiML]

Comprehensive Dynamic Motion Control

This algorithm asses printing difficulty for each layer using factors like cross-sections, part spacing and quantity, selecting from 18 optimized motion control parameters to ensure quality whilst also enhancing speed.

[videopress Uh7b5CNj]

Single Layer Dynamic Control

Utilizing a seven – segment motion control logic per layer, the RS reads real-time force sensor data at 80 times per second, allowing it to adjust motion parameters efficiently, reducing the redundant time and preventing printing failures.

Click to View

Automatic Pre-processing

[videopress Jzr1kgW2]

Complete Pre-processing in Just One Minute

One-click slicing without manual adjustment.

Automatic Repair Prevents Failures

Automatically detects and repairs model defects such as inverse normals, holes, and intersecting shells.

Intelligent Auto-Supports

Intelligently configured scaffold supports result in reduced detachments and a higher printing success rate.

Force Value Monitoring System

Residue Detection

Force sensors with a sensitivity of 0.1 N can detect resin residue as small as 0.2 mm and can auto-stop upon detection or print failure.

[videopress NMfqmr4T]

Printing Analysis

A report is produced after each print to accurately identify issues.

[videopress scW8qn9a]

Automated Printing Assistance

Floating Screen Auto Leveling

A floating screen system with a deviation of 0.15° eliminates gaps of up to 240 µm for automatic leveling.

[videopress sY5dntpf]

Automatic Resin Heating

The optional RS heated resin tank* uses an integrated heater for higher efficiency. It can elevate resin temperature from 50 °F (10 °C) to an optimal 73 °F (22 °C) in 20 minutes , auto heating maintains this temperature throughout the printing process for optimal results.

[videopress vjfb8r66]

Automatic Resin Refill

Automatic resin refill before and during printing.

[videopress pCpQoAsM]

Specification

Click to View
