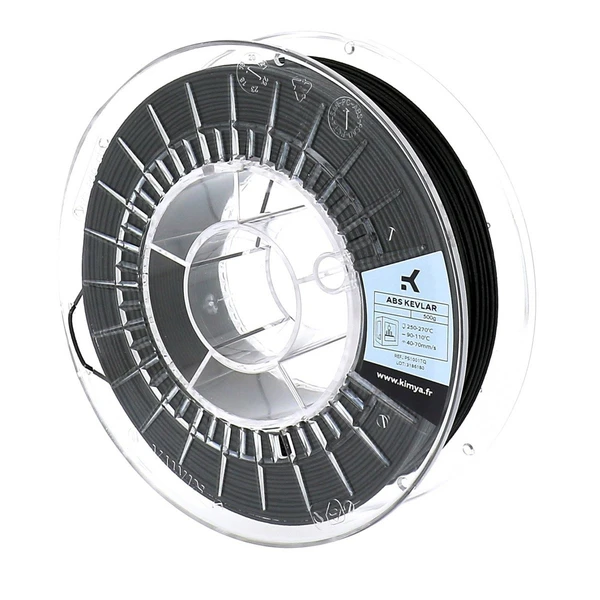

Kimya ABS Kevlar Black | 1.75mm | 500g
Original price was: £35.95.£34.15Current price is: £34.15. (excl. VAT)

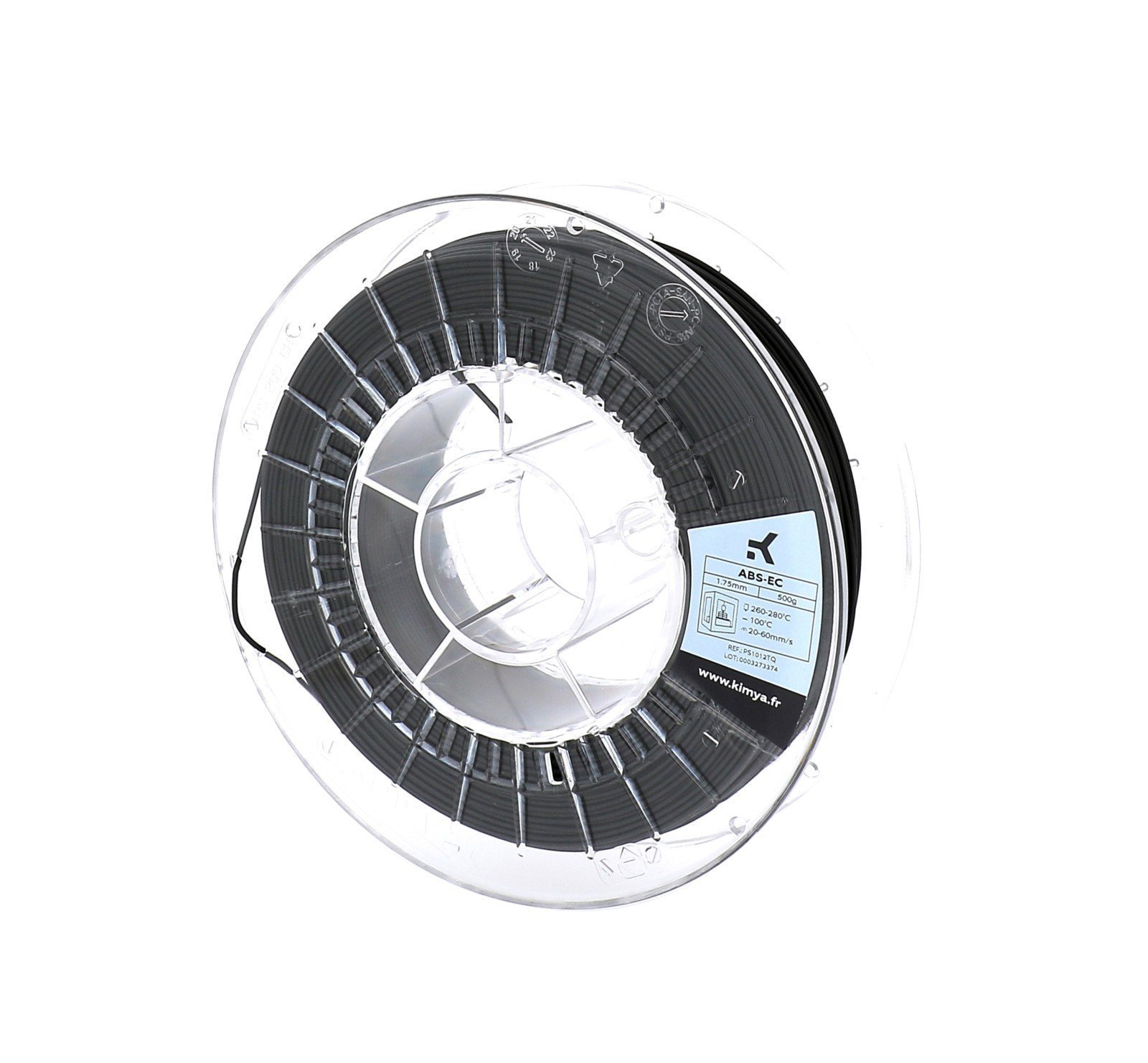

Kimya ABS-EC Black 2.85mm 500g
Brands:
KIMYA
Original price was: £67.56.£64.18Current price is: £64.18. (excl. VAT)
The Kimya ABS-EC 3D filament belongs to the styrenic polymer family. Acrylonitrile Butadiene Styrene electrical conductor (ABS-EC) is a combination of ABS and electrically active additives: carbon nanotubes.
Please scroll down to see full product details
Product successfully added to the Quote List
Description
The Kimya ABS-EC 3D filament belongs to the styrenic polymer family. Acrylonitrile Butadiene Styrene electrical conductor (ABS-EC) is a combination of ABS and electrically active additives: carbon nanotubes. ABS-EC is resistant to impact, heat and ageing. It is used in the automotive and electronics industries. The Kimya ABS-EC 3D filament has the following properties:
- Good resistance to impact
- High temperature resistance
- Electrical conductivity
- Complies with the REACH regulation and the RoHS directive
Store away from light, humidity and heat to maintain the properties of the product.
FILAMENT PROPERTIES
| PROPERTIES | TEST METHODS | VALUES |
|---|---|---|
| Diameter | INS-6712 | 1.75 ± 0.05 mm 2.85 ± 0.05 mm |
| Density | ISO 1183-1 | 1.035 g/cm3 |
| Moisture rate | INS-6711 | < 0.5 % |
| Melt flow index (MFI) | ISO 1133-1 (@260°c – 10 kg) | 8 – 16 g/10min |
| Glass transition temperature (Tg) | ISO 11357-1 | 108 °C |
PRINT PARAMETERS AND SPECIMENS DIMENSIONS
| PRINTING DIRECTION | XY |
|---|---|
| Printing Speed | 45 mm/s |
| Infill | 100% – rectilinear |
| Infill Angle | 45°/-45° |
| Nozzle Temperature | 260°C |
| Bed T° | 95°C |
PRINTED SPECIMENS PROPERTIES
| PROPERTIES | TEST METHODS | VALUES | |
|---|---|---|---|
| ELECTRICAL PROPERTIES | Surface resistivity | ASTM D257 | < 106 Ohms/m² |
| MECHANICAL PROPERTIES | Tensile modulus | ISO 527-2/5A/50 | 2,398 MPa |
| Tensile Strength | ISO 527-2/5A/50 | 36.7 MPa | |
| Tensile strain at strength | ISO 527-2/5A/50 | 2,3 % | |
| Tensile Stress at Break | ISO 527-2/5A/50 | 29.2 MPa | |
| Tensile strain at break (type A) | ISO 527-2/5A/50 | 5,2 % | |
| Flexural modulus | ISO 178 | 1,393 MPa | |
| Deformation at Flexural Strain | ISO 178 | <5 % | |
| Flexural stress at conventional deflection (3,5% strain)* | ISO 178 | 49.3 MPa | |
| Charpy impact resistance | ISO 179-1/1eA | 27.6 kJ/m² | |
| Shore Hardness | ISO 868 | 67,2 |
| Note 1 | *According to ISO 178, end of the test at 5% deformation even if there is no specimen break. |
| Note 2 | The data should be considered as indicative values – Properties can be influenced by production conditions. |
PRINT SETTINGS:
- PRINT SPEED : 20-60 mm/s
- EXTRUSION TEMPERATURE : 250-280°C
- PLATFORM TEMPERATURE : 90-110°C
MISCELLANEOUS
| Spool Material | PC |
| Steaming Temperature | 80°C |
| Steaming Duration | 2h-4h |
About Brand
KIMYA
KIMYA is an additive manufacturing materials brand known for technical and high-performance 3D printing filaments for demanding applications. The KIMYA filament portfolio is now integrated into Airtech Advanced Materials Group’s additive manufacturing materials range, giving professional users access to practical material options for functional prototypes, tooling and end-use parts.
