-5%

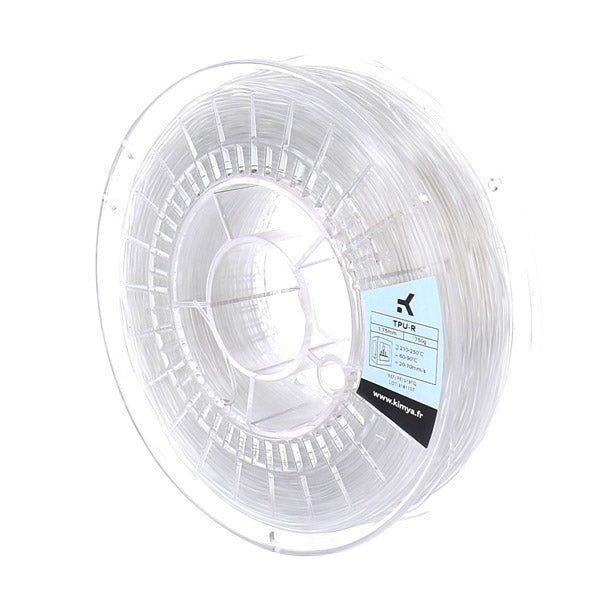

Kimya TPU-R Translucent 1.75mm 750g
Original price was: £46.39.£44.07Current price is: £44.07. (excl. VAT)

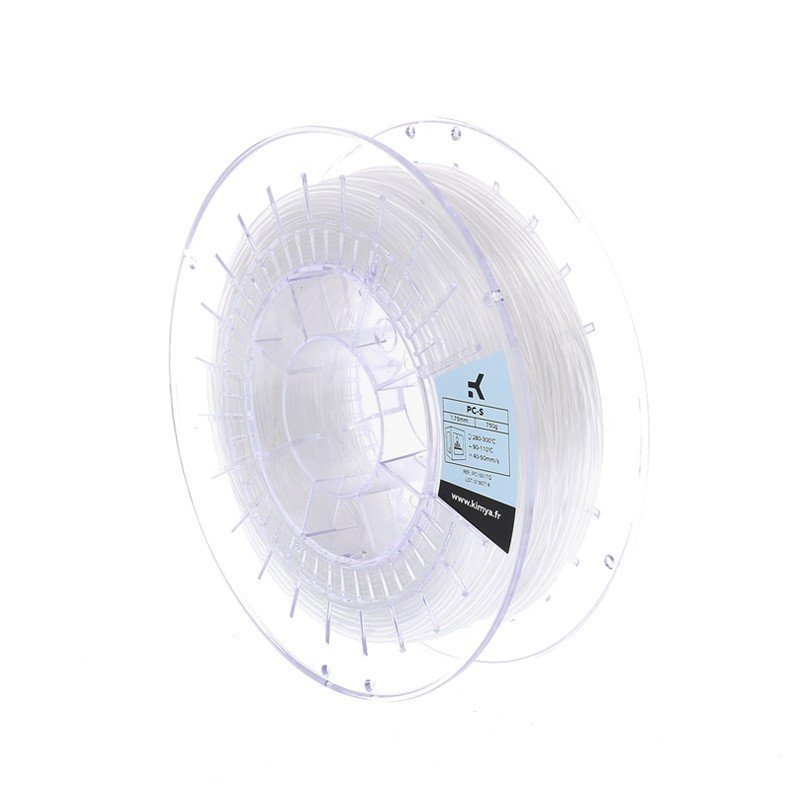

Kimya PC-S Translucent | 1.75mm | 750g
Original price was: £42.08.£39.98Current price is: £39.98. (excl. VAT)
Kimya TPU-R Translucent 2.85mm 750g
Brands:
KIMYA
Original price was: £32.64.£31.01Current price is: £31.01. (excl. VAT)
The Kimya TPU-R 3D filament belongs to the polyurethane family. Thermoplastic polyurethane (TPU-R) is formulated using recycled materials.
Please scroll down to see full product details
Product successfully added to the Quote List
Description
The Kimya TPU-R 3D filament belongs to the polyurethane family. Thermoplastic polyurethane (TPU-R) is formulated using recycled materials. It is a translucent filament with good elasticity. Furthermore, it offers a Shore hardness of 92A. It is used to print resistant and flexible parts. The Kimya TPU-R 3D filament is used in the electronics, automotive and consumer goods sectors. It offers the following properties:
- Flexible
- 100% made from recycled materials
- Complies with the REACH standard
FILAMENT PROPERTIES
| PROPERTIES | TEST METHODS | VALUES |
|---|---|---|
| Diameter | INS-6712 | 1.75 ± 0.1 mm |
| Density | ISO 1183-1 | 1.14 g/cm3 |
| Moisture rate | INS-6711 | < 1 % |
| Melt flow index (MFI) | ISO 1133-1 (@210°C“ 5 kg) | 42 – 45 g/10min |
| Glass transition temperature (Tg) | ISO 11357-1 DSC (10°C/min – 90-190°C) | -33 °C |
PRINT PARAMETERS AND SPECIMENS DIMENSIONS
| PRINTING DIRECTION | XY |
|---|---|
| Printing Speed | 20-70 mm/s |
| Infill | 100% – rectilinear |
| Infill Angle | 45°/-45° |
| Nozzle Temperature | 210-250°C |
| Bed T° | 60-90°C |
PRINTED SPECIMENS PROPERTIES
| PROPERTIES | TEST METHODS | VALUES | |
|---|---|---|---|
| MECHANICAL PROPERTIES | |||
| Tensile modulus | ISO 37/2/500 | 55.2 MPa | |
| Tensile Strength | ISO 37/2/500 | 27.7 MPa | |
| Tensile strain at strength | ISO 37/2/500 | <300 % | |
| Tensile Stress at Break | ISO 37/2/500/ | 27.4 MPa | |
| Tensile strain at break | ISO 37/2/500 | <300 % | |
| Flexural modulus | ISO 178 | 45.6 MPa | |
| Flexural stress at conventional deflection (3,5% strain)* | ISO 178 | 1.9 MPa | |
| Charpy impact resistance | ISO 179-1/1eA | No Break | |
| Shore Hardness | ISO 868 | 90A |
Note 1Â *According to ISO 178, end of the test at 5% deformation even if there is no specimen break.
Note 2Â The data should be considered as indicative values – Properties can be influenced by production conditions.
Print Setting
- Print speed: 20-70 mm/s
- Extrusion temperature: 210-250°C
- Platform temperature: 60-90°C
Miscellaneous
| Highlight | Flexibility |
| Highlight 3 | 97 % Recycled Material |
| Spool Material | PC |
| Steaming Temperature | 80°C |
| Steaming Duration | 2h-4h |
About Brand
KIMYA
KIMYA is an additive manufacturing materials brand known for technical and high-performance 3D printing filaments for demanding applications. The KIMYA filament portfolio is now integrated into Airtech Advanced Materials Group’s additive manufacturing materials range, giving professional users access to practical material options for functional prototypes, tooling and end-use parts.
