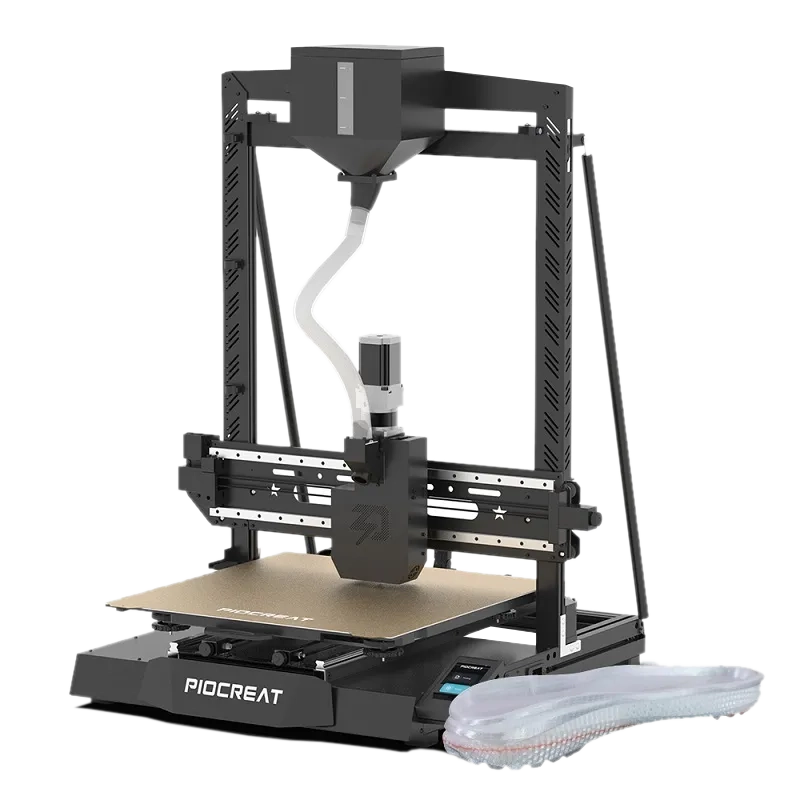

PioCreat G5Ultra
Brands:
PIOCREAT
Designed to cater to the demanding needs of educational and academic research, design studios, prototyping and more.
The G5Ultra Pellet 3D Printer utilizes cost-effective thermoplastic pellet feedstocks, ensuring high-speed production.
Key features include a nozzle temperature of up to 420℃, rapid hot bed heating to 120℃, and a screw extruder design, accommodating a wider range of materials.
Request a quote: info@staging.dream3d.co.uk
Description
The G5Ultra Pellet 3D Printer utilizes cost-effective thermoplastic pellet feedstocks, ensuring high-speed production.
Key features include a nozzle temperature of up to 420℃, rapid hot bed heating to 120℃, and a screw extruder design, accommodating a wider range of materials. Designed to cater to the demanding needs of educational and academic research, design studios, prototyping and more.
Nozzle Temperature up to 420℃
The next generation extruder (with segmented heat zones) can fit nozzles in diameters ranging from 0.4mm up to 3mm, and the machine can print pellets/granules measuring 2-5mm in diameter. The particles are fed into the extruder from a 3 liter hopper, ensuring a ready supply of feedstock for its huge deposition rate. It heats up to a toasty 420°C, enabling the printing of a wide range of materials.
Intelligent Laser Ranging
Using laser sensor non-contact measurement technology, the leveling time can be significantly shortened and the leveling accuracy can be improved; Not only ensure the real-time and high safety of the leveling operation under the high temperature platform, but also avoid interference with the model during the printing process.
High-Speed Printing
The G5Ultra boasts desktop 3D printing speeds that reach up to 220mm/s. With regards to the flow rate of the materials, the G5 Ultra is capable of depositing a staggering 0.8kg per hour, ensuring it stands out for individuals requiring rapid production without compromising the intricacies of design or the overall quality of the final product.
Suitable for More Materials
With its ability to heat up to 420℃, the G5Ultra Pellet 3D Printer excels in processing a wide range of thermoplastics and composites. This flexibility allows for experimenting with various pellets, including PA-CF,PA-GF,PC-CF, PLA, rPLA, PETG-GF, ABS, PS, GPPS, PP-GF, and more, enabling the creation of functional prototypes, artistic works, or educational models with desired material properties.
Why choose FGF pellet 3D printer?
- Mould making: Save time and reduce costs
- Sculpture Art: Mostly used in the production of artistic creation, digital sculpture, landscape model, etc.
- Education and Research: 3D printing product teaching, material science research, etc.
- Industrial Parts: Applied to structural parts templates, industrial figures, industrial parts, etc.
- Reduce Costs : Pellet extrusion 3D printing offers significant savings, cutting costs up to 10X compared to traditional filament-based methods.
- Shorten Lead Times: Enjoy speeds up to 10X faster than conventional filament extrusion 3D printing, drastically reducing project lead times.
- Excellent Material Properties : Use original materials for optimal material properties, ensuring enhanced performance of printed components through superior quality.
- Eco-friendly: uses pellets and shredded recycled plastic for sustainable, eco-friendly additive manufacturing alternatives.
New-Generation Nozzle Printing Components
Ensure that the discharge is stable, smooth, and without block. Self-developed new generation screw extrusion nozzle design, the maximum nozzle temperature is 450 °C, the extrusion force is strong, and the 0.4-3.0mm diameter nozzle is flexibly selected for fast and stable printing.
Multi-Materials Printability
Compatible various pellets material. Suitable for a variety of materials, reusable, flexible and changeable.
Spring Steel Magnetic Attraction Platform
Adopt spring steel magnetic attraction platform, heating up quickly, reducing waiting time for printing. G5 Pro only takes 1 minutes and 57 seconds to heat up to 60°C; normal 3D printer takes 5 minutes and 38 seconds to reach the same temperature.
Easy to Take Mould
The model can be removed by bending the platform, durable and not easily deformed, the bottom is flat and easy to clean.
Specification
| Construction an Technical Details | |
| Nozzle Thread / Fitment | Pio M7 |
| Max Nozzle Temperature | 450 ºC |
| Extruder Type | Direct drive |
| Recommended Max Printing Speed | 100 mm/s (depends on material) |
| Build Volume | 500 mm x 500 mm x 500 mm |
| Max Build Plate Temp | 150 ºC |
| Build Plate Material | Flexible Steel Plate |
| Build Plate Fitment | magnetic |
| Build Plate Leveling System | automatic and auxiliary |
| Build Chamber During Process | Open |
| Filament Chamber Closed | Yes |
| Number of Extruders | 1 |
| Installation Space / Requirements | |
| Overall Dimensions | 765 mm x 890 mm x 990 mm |
| Net Weight | 36.3 kg |
| Ambient Operating Temperature | 5°C – 40°C |
| Max Power Consumption | 1250 W |
| Voltage | AC: 100 V, 11,5 A230 V (50-60 Hz) |
| Equipment | |
| Hepa Filter | Yes |
| Power Loss Fail Safe | Yes |
| Touch Screen | Yes |
| Connection | |
| SD Card | Yes |
| USB Port | Yes |
| WLAN | No |
| Accuracy | |
| Layer Height | 0.2 – 2 mm |
| Shipping | |
| Shipping Box | 990 mm x 845 mm x 510 mm |
| Gross Weight | 68 kg |
Additional information
| Brands | PIOCREAT |
|---|---|
| 3D Printer Format | Pellet 3D Printers |
| 3D Printer Category | Industrial 3D Printers, Professional Desktop 3D Printers |
| 3D Printing Product Category | 3D Printers |
About Brand
PIOCREAT
PioCreat develops 3D printing solutions for industrial, dental and creative applications, including pellet 3D printers, dental resin systems, 3D scanners and supporting materials. The brand is suited to users who need practical equipment for production-led workflows, with options for large-format printing, dental work and application-specific materials.
