Product details

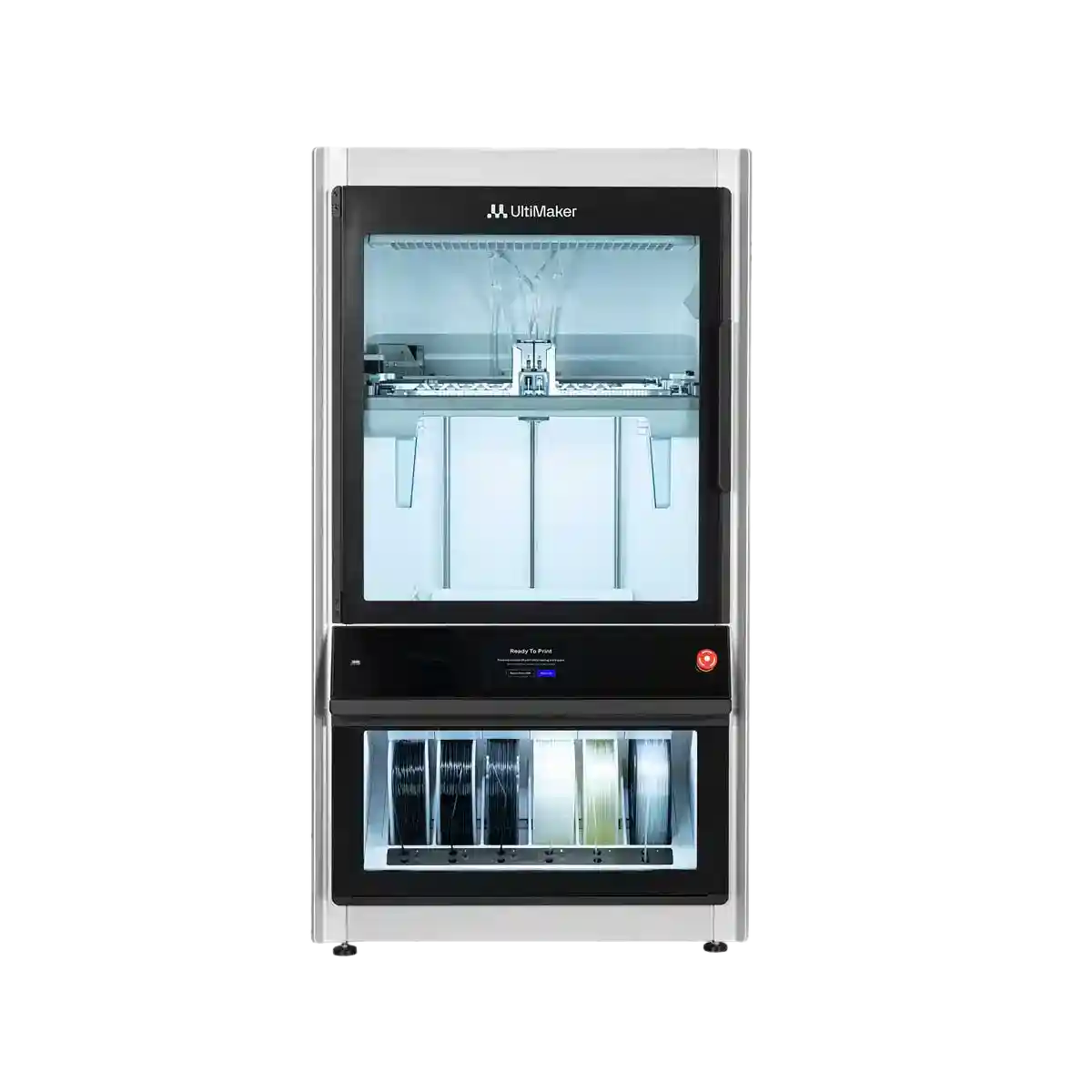

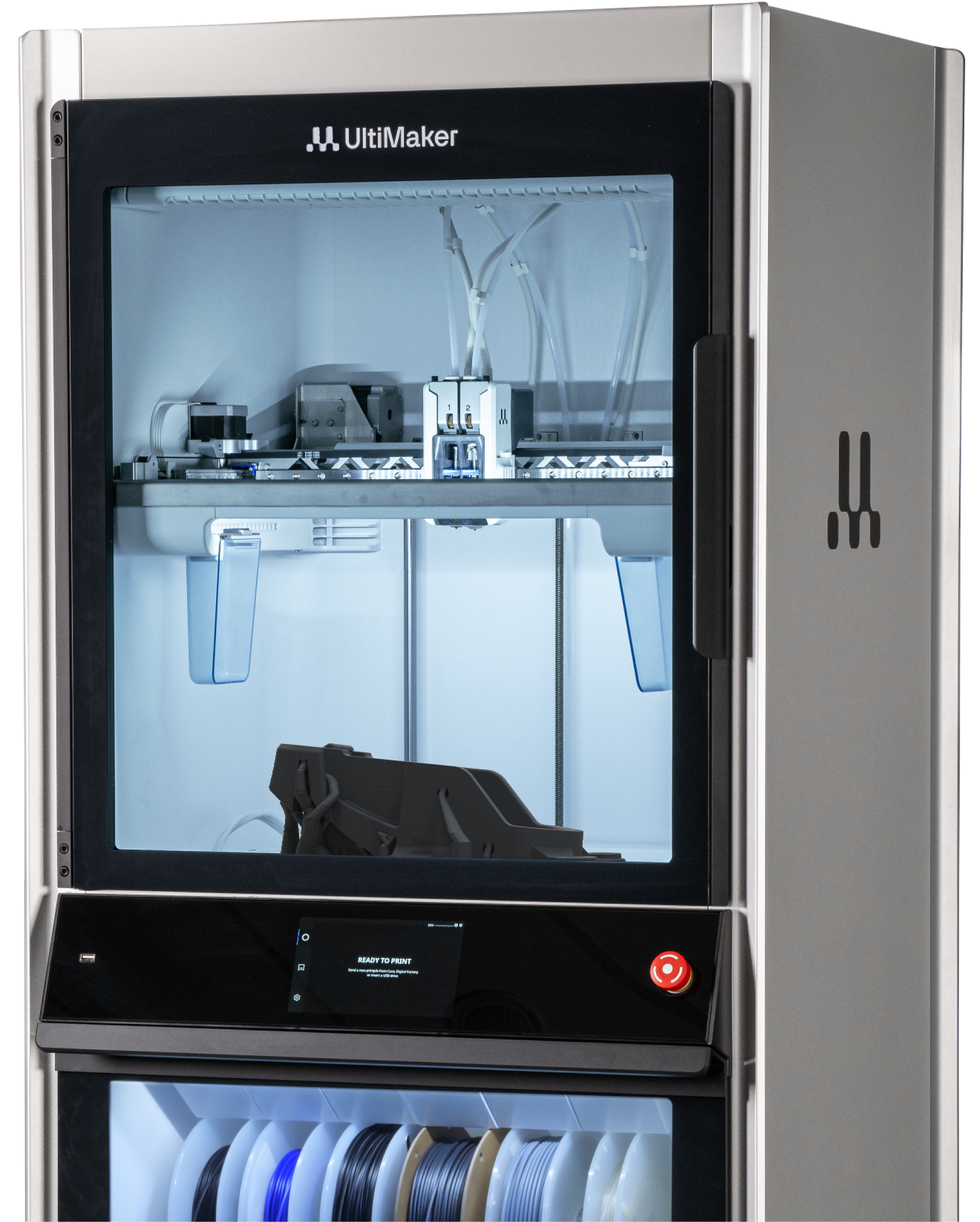

Ultimaker Factor 4, a new industrial-grade 3D printer, streamlines production, simplifies processes, and keeps operations running smoothly. With support for engineering materials, direct dual extrusion, onboard print process reporting, and many more innovations, it achieves unrivalled predictability and minimal variance.

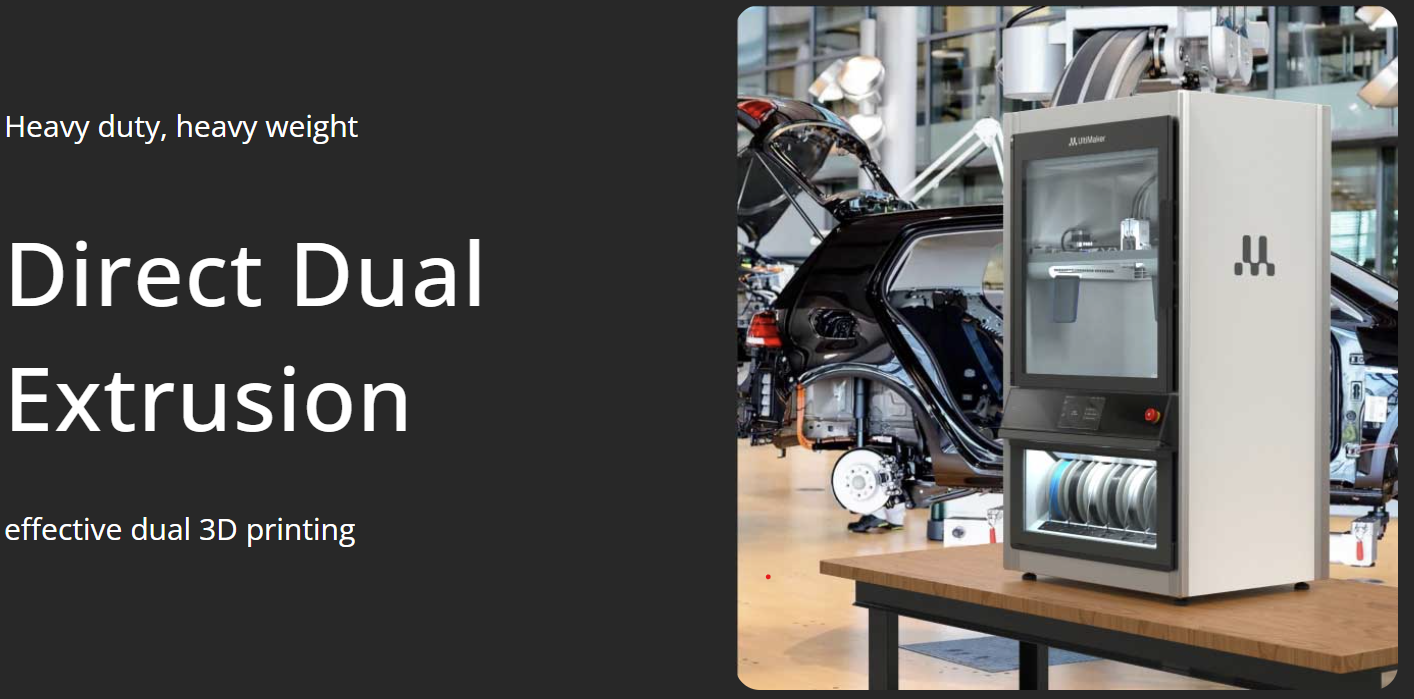

Factor 4 elevates manufacturing with its triple-insulated build chamber and direct dual extrusion. The automated material handling system maintains filament quality. And the robust, temperature-controlled design ensures consistent production output also on complex and challenging designs.
Achieve the highest print accuracy of any UltiMaker printer – even at high resolution on small design features. These will achieve a dimensional accuracy of ± 0.2 mm or ± 0.2% of feature nominal length over the full build plate and across multiple printers.*

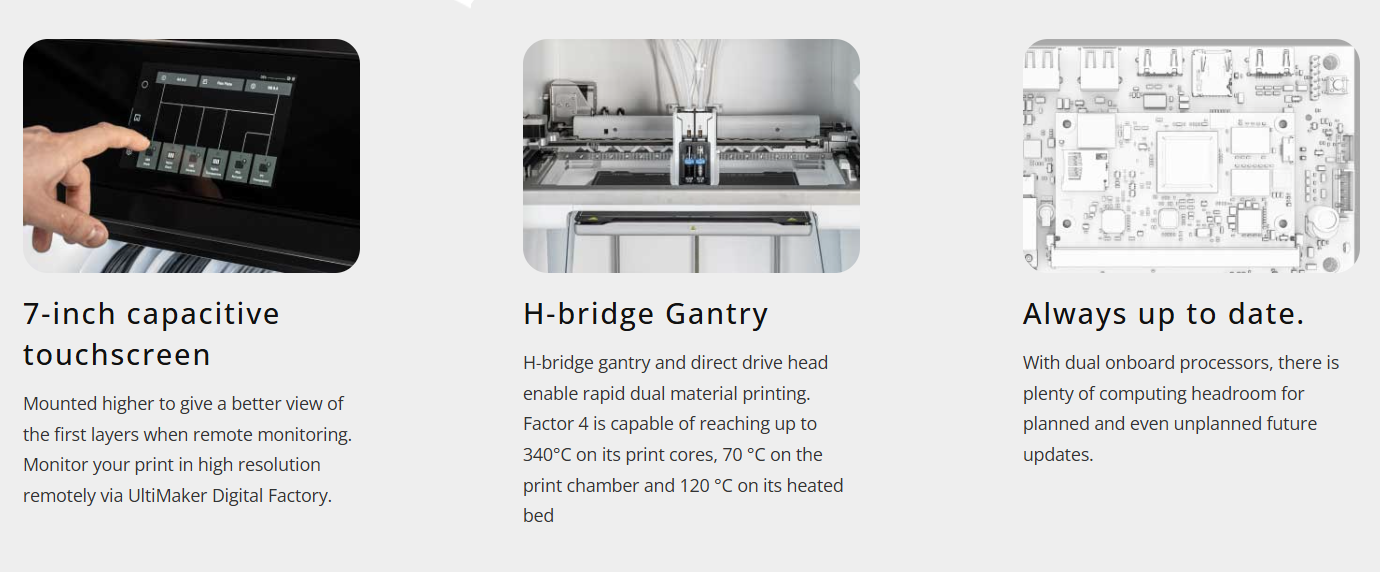

The Factor 4 excels at quickly switching from 3D printing highly flexible materials all the way to strong composites, like UltiMaker PPS-CF. Its H-bridge gantry and direct drive head enable rapid dual material printing.
Factor 4 makes it possible to additively produce & deploy structural integrity verified parts across different locations. The low variance, less than 10%, in extrusion rate and mechanical properties batch after batch, part after part is a combination of the H-bridge gantry, closed loop feed control, and uniformly controlled build plate temperatures – with a maximum variation of 2 °C across the X and Y axes.
Regular updates ensure that your Factor 4 will evolve over time – far beyond the 12 to 18 months it will take to achieve return on investment. The 3D printer’s modular build allows our global support network to quickly replace parts, minimizing downtime.
Printing Properties
| Technology | Fused deposition modeling (FDM) |
|---|---|
| Extrusion system | Dual-extrusion, direct drive print head with unique auto-nozzle lifting system and swapping print cores |
| Build volume | Single material printing: 330 x 240 x 300 mm (13 x 9.4 x 11.8 in)
Dual material printing: 330 x 240 x 300 mm (13 x 9.4 x 11.8 in) |
| Filament diameter | 2.85 mm |
| Print profiles availability | 14+ UltiMaker materials
250+ UltiMaker Marketplace materials |
| Dimensional accuracy | ± 0.2 mm ± 0.2 % feature nominal length
For detailed conditions visit ultimaker.com/factor4 |
Hardware Properties
| XYZ resolution | 6.25, 7.8, 2.5 micron |
|---|---|
| Homing sensor | Optical |
| Build plate | PEI-coated flexible build plate |
| Build plate temperature | Up to 120 °C (248 °F) |

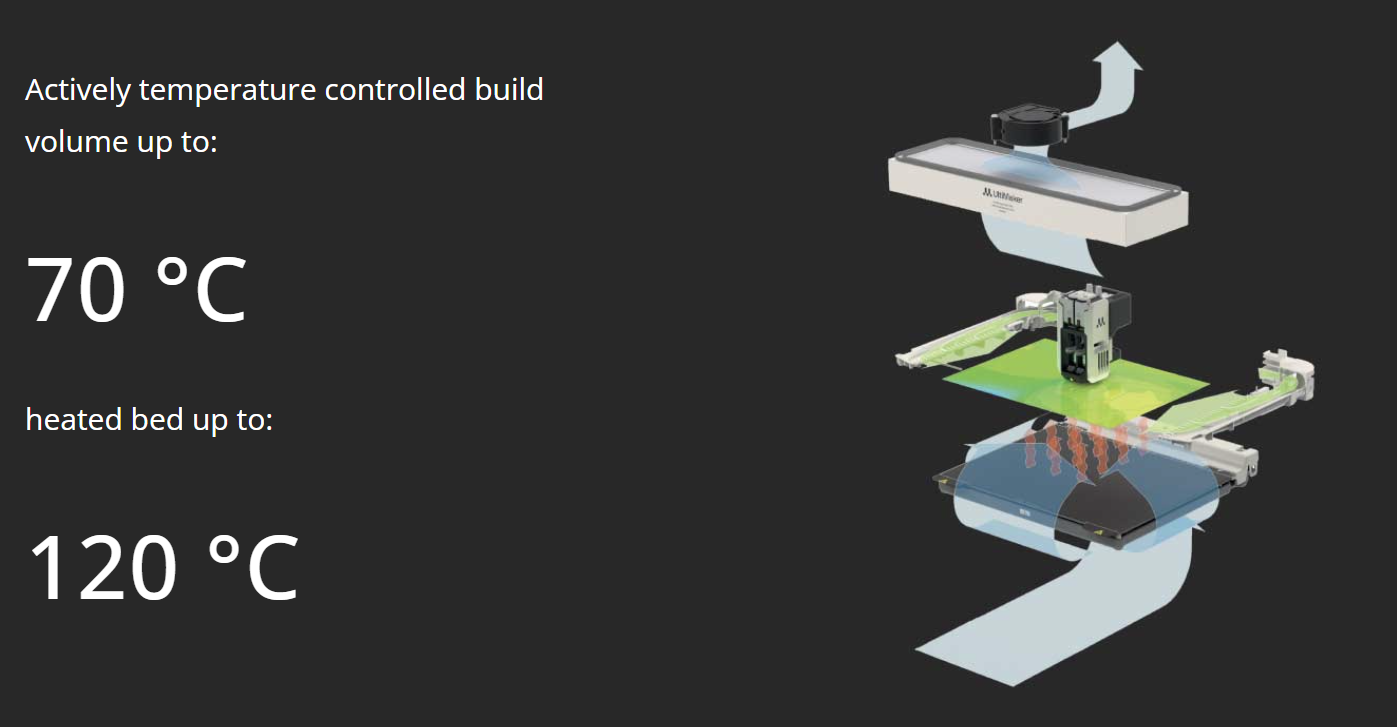

| Build volume temperature | Actively controlled up to 70 °C(158 °F) with nozzle plane temperature uniformity within:
± 3 °C (5.4 °F) for temperatures < 50 °C (122 °F) ± 5 °C (9 °F) for temperatures < 70 °C (158 °F) |

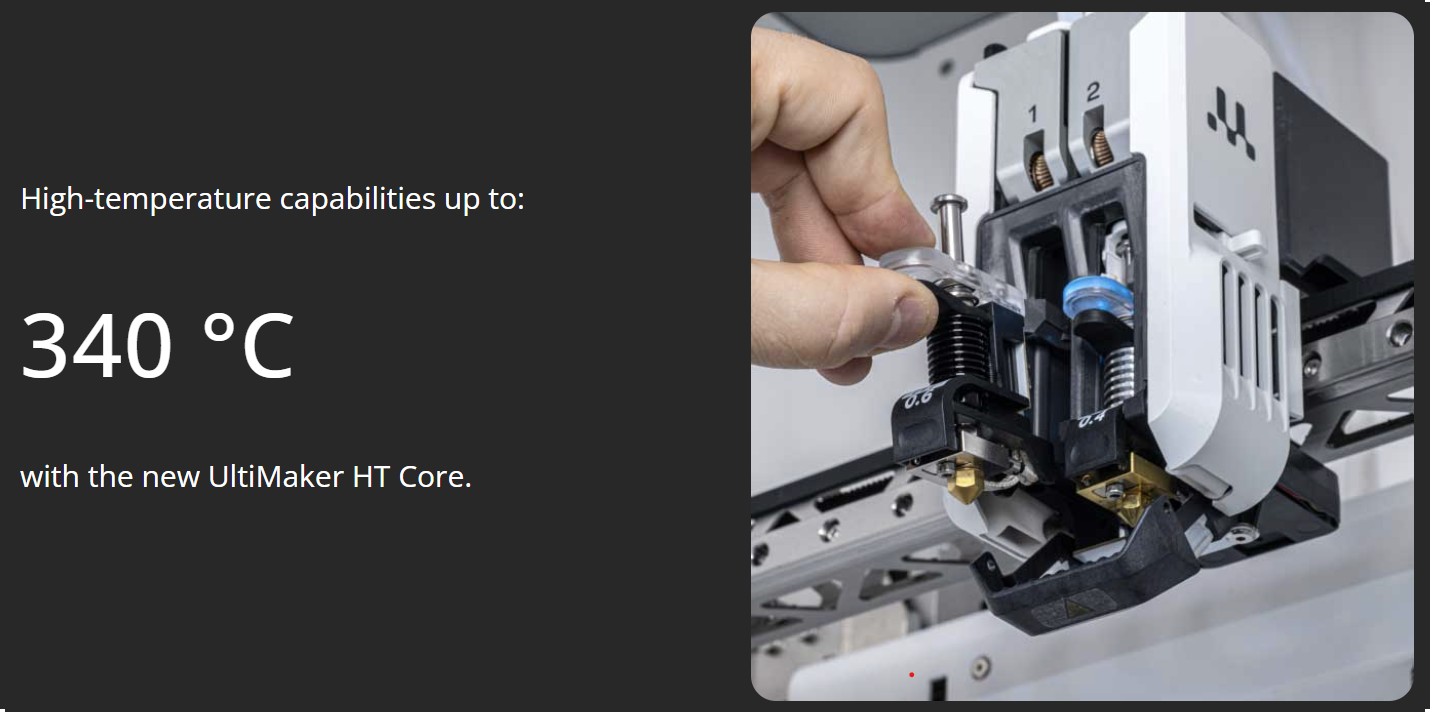

| Max. extrusion temperature | 280 °C (536 °F): Print core AA, BB, DD
300 °C (572 °F): Print core CC 340 °C (644 °F): Print core HT |
| Closed loop fans | Air filtering fan, air recirculation fans, print cooling fans, print core cooling fan |
| Compatible print cores | Print core AA (0.25 mm, 0.4 mm, 0.8 mm)
Print core BB (0.4 mm, 0.8 mm) Print core CC (0.4 mm, 0.6 mm) Print core DD (0.4 mm) – available in selected regions Print core HT (0.6mm) |

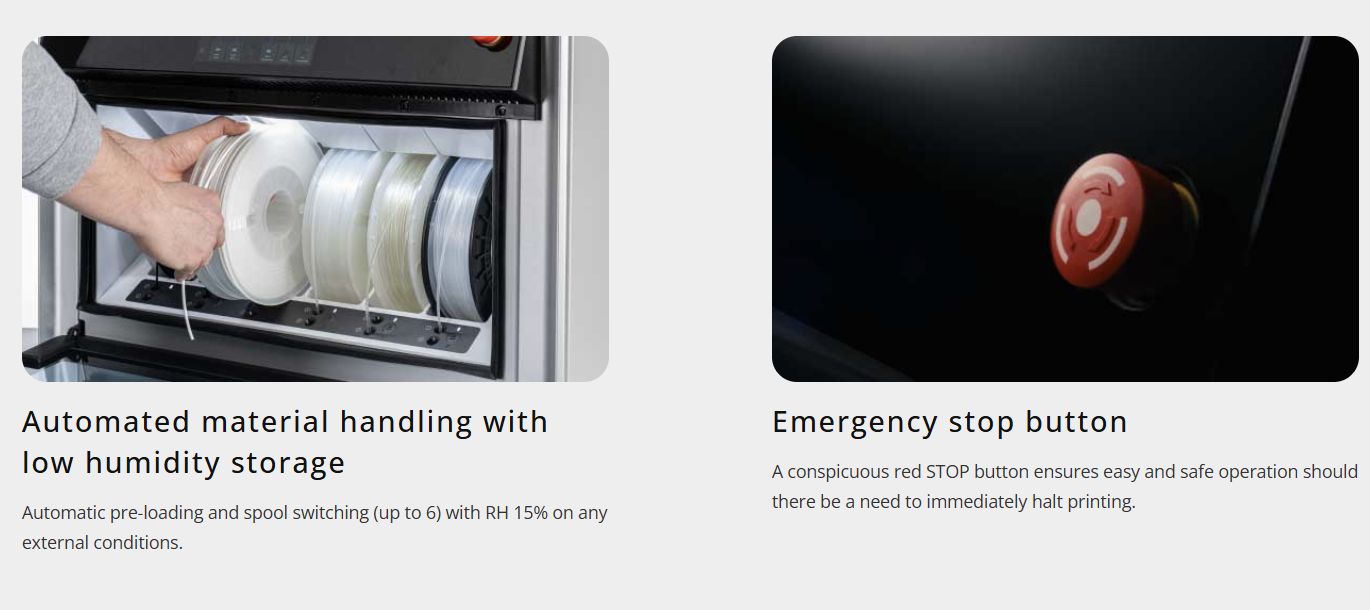

| Material handling system capacity | 6 bays with NFC recognition (max. 1 kg spool size) |
| Material handling system humidity control | Average relative humidity < 15 % in all operational conditions |

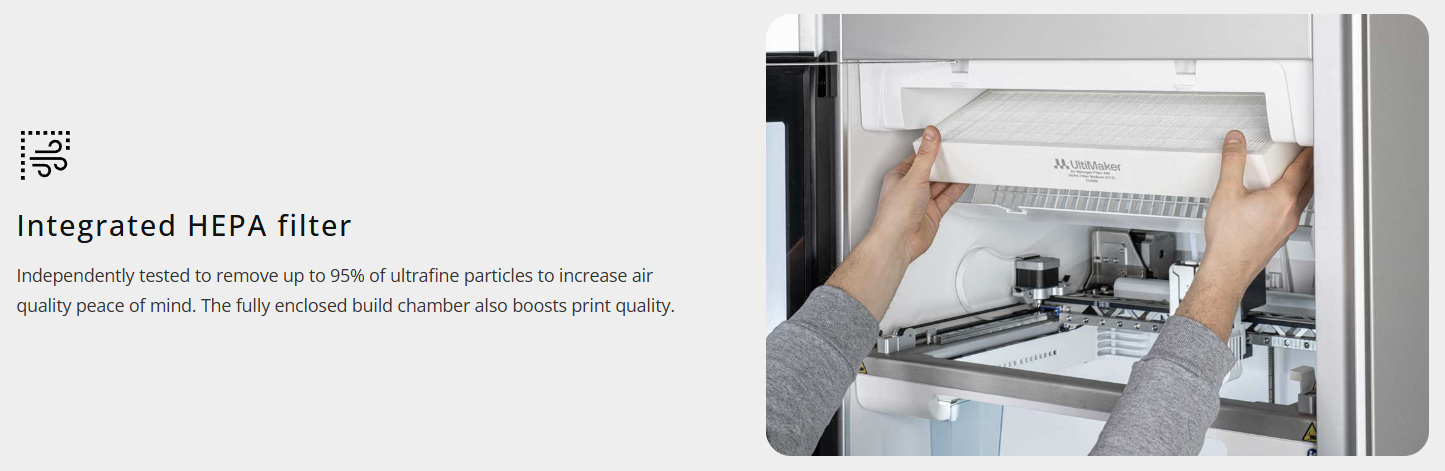

| Microparticulate filtration system | HEPA H13 |
| Emission rate (UFP & VOC) | UltiMaker filaments below limits listed in UL-2904 |
| Monitoring | HDR (high dynamic range) 1920 x 1080 px HD camera |
| Display | 7-inch touchscreen (resolution 1024 x 600 px) |
| Connectivity | Wi-Fi 2.4 & 5 GHz: IEEE 802.11a/b/g/n/ac
LAN: Gigabit Ethernet USB: 2.0 |
| System on module | NXP i.MX8 Mini Quad (4 x 1.8 GHz), ARM Cortex-A53, 2 GB LPDDR 4
16 GB eMMC |
| Real time controller | i.MX RT1064, Arm Cortex-M7 600 MHz, 1 MB SRAM |
| Power requirement | 100 – 240 V AC, 50 – 60 Hz max., 6A |
Physical Dimensions
| Dimensions | 695 x 605 x 1287 mm (27.5 x 24 x 51 in) |
|---|---|
| Weight | 120 kg (265 lbs) |
| Shipping dimensions | 760 x 800 x 1587 mm (30 x 31.5 x 62.5 in) |
| Shipping weight | 137 kg (309 lbs) |
Ambient Conditions
| Operating sound | < 50 dBA in operation | ||||
|---|---|---|---|---|---|
| Operating environment |
|
Software
| Print job preparation | UltiMaker Cura 5.7.1 or newer |
|---|---|
| Print job management | Ultimaker Digital Factory |
| File types supported | UltiMaker Cura: STL, OBJ, 3MF
rintable formats: G, GCODE, UFP, STEP |
| System requirements | Windows 7 (64-bit)
Mac OS X 10.12 OpenGL 2.1 4 GB RAM (8 GB recommended) |

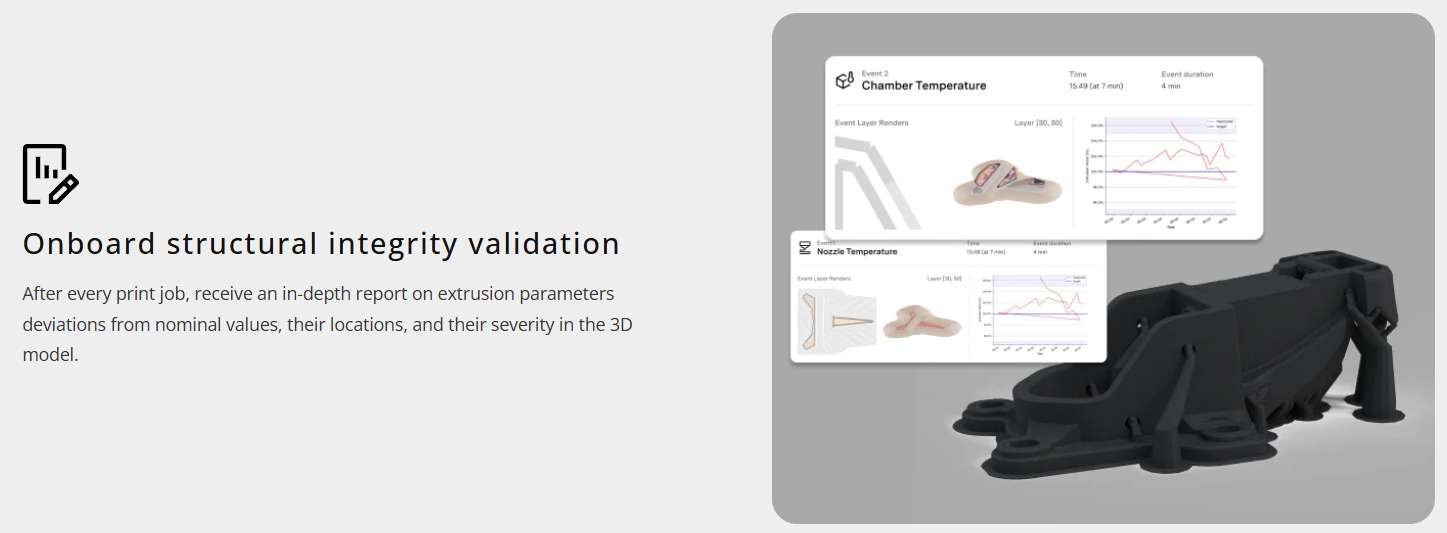

| Print process reporting | Supported |
| Security | Active firewall
PIN code settings protection |
Safety and Compliance
| Waranty period | 12 months limited warranty |
|---|---|
| Certifications | For a detailed list of certifications visit ultimaker.com/factor4 |
| Safety features | Red stop button immediately stops motion and heat sources
Open door sensor pauses motion and extrusion |
PRODUCT DATA SHEET HERE: UltiMaker-Factor-4-data-sheet-A4-RGB-EN-v1.00.pdf (shopify.com)
