HeyGears UltraCraft Reflex + Wash + Cure + Pulsing Release Module Pack

Empower your 3d printing process with this complete system which includes:

• • Reflex 3D Printer
  • UltraCraft Wash (https://dream3d.co.uk/product/heygears-ultracraft-wash/)
  • UltraCraft Cure (https://dream3d.co.uk/product/heygears-ultracraft-wash-copy/)

  • UltraCraft Pulsing Release Module for Reflex (https://dream3d.co.uk/product/heygears-ultracraft-pulsing-release-module-for-reflex/)

To learn more about the other devices in this bundle, please see the relevant product page for each above.

Ultracraft Reflex

The Ultracraft Reflex is an incredibly user-friendly, featuring automatic resin filling, precise bed leveling, and seamless integration with Blueprint Studio software.

You can even monitor the printer remotely via a mobile app. For faster printing, the optional Pulsing Release Module takes efficiency to the next level.

From unpacking to your first print, we’re confident you’ll love the experience.

Key Features:

• Advanced UV Light Source: Utilizes a 385 nm UV light, delivering 1.5 times more effective resin curing compared to standard 405 nm UV printers. This enables the use of advanced materials and improves the performance of finished prints.

• High-Precision Z-Axis Module: Features a C5-grade Z-axis module for stable layer thickness and detailed results, with a repositioning accuracy of ±2 µm.

• Smart AI Peeling Force Management: Integrates intelligent algorithms to optimize peeling parameters for each printed layer, enhancing printing efficiency and success rates.

• Automated Features: Includes automatic resin level detection, resin refill, and a heated tray to maintain optimal resin temperature during the printing process.

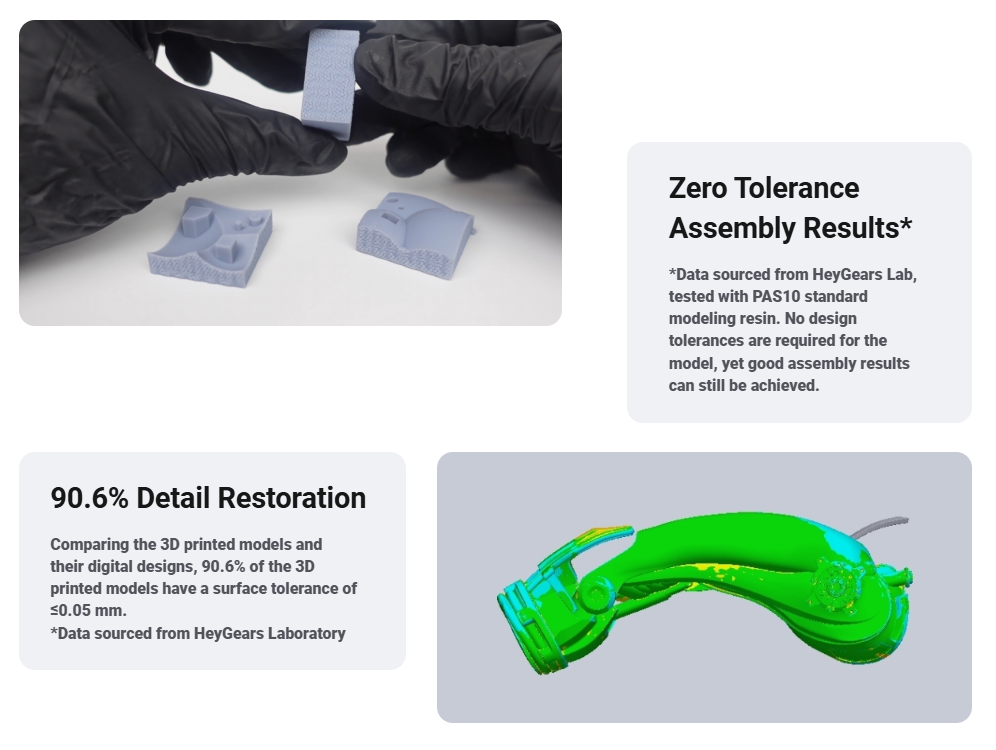

• High Printing Precision: Delivers a printing tolerance of less than 0.05 mm, making it ideal for small-batch production and detailed prints.

• Enhanced Forming Capability: Supports complex geometries with a minimum unsupported angle of 25°, minimizing support material usage and optimizing forming efficiency.

Powerful Algorithms for Enhanced Printing Results

[videopress OzG2SSQx]

Three-dimensional Anti-aliasing

Print layer image & Z-axis anti-aliasing for smoother print texture

[videopress VuyPfjYu]

WDR fusion+

Multi-layer exposure analysis and compensation for higher surface sharpness

[videopress InYnbwhT]

PICK Intelligent Recognition

Printed model and supports are recognized and exposed separately for easy support removal and improved surfaces

[videopress kqr7XwhY]

Real-time Peeling Force Management

Reflex automatically adjusts the peeling force during each print for worry-free printing

[videopress 5ag1QRKa]

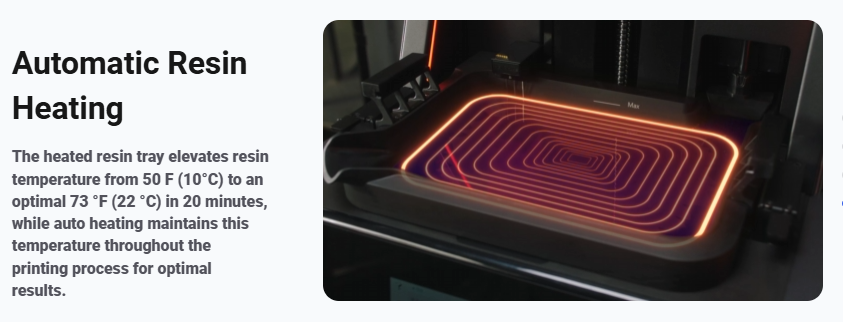

Auto Resin Refill & Heated Tray

• Identifies resin type
• Monitors resin level
• Automatically refills resin when necessary
• Maintains optimum printing temperature

[videopress bcKq7z1L]

Auto Zeroing & Intelligent Assisted Leveling

Auto zeroing and precise leveling reduces the manual adjustments required for your printer

[videopress LY0iJeYa]

Print Status Monitoring

Oversees your printers status and notifies if any errors detected

[videopress 88ZGdYbB]

TrueUV Light Source System

Commercial grade results with injection-molded like quality

385 nm+ Wavelength UV

[videopress 2f6ObMWc]

Enhanced Material Performance

Specification

Click to View
