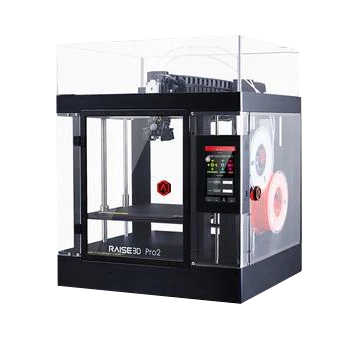

RAISE 3D PRO2
Original price was: £3,270.00.£3,200.00Current price is: £3,200.00. (excl. VAT)

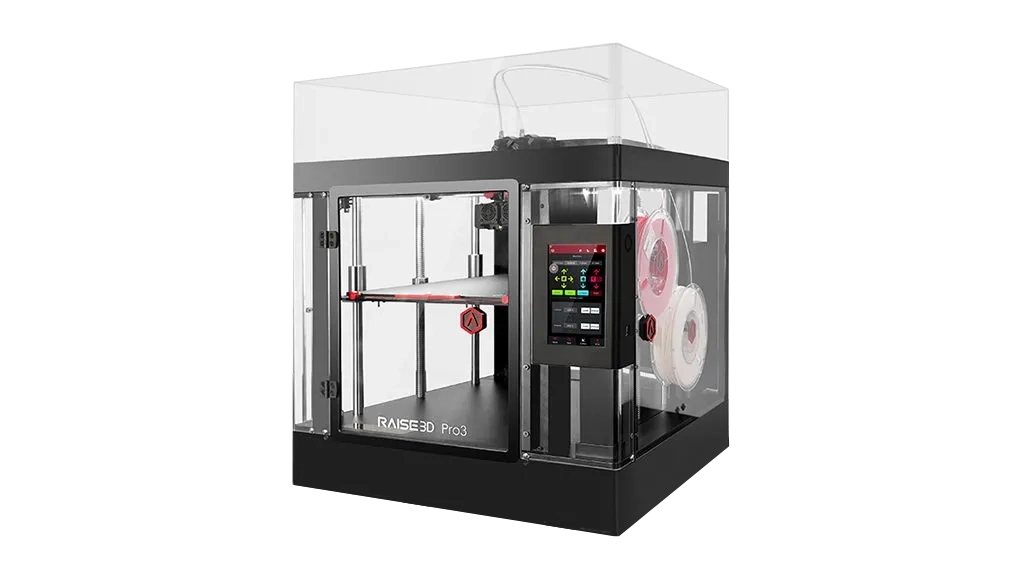

Raise3D Pro3 3D Printer
Brands:
RAISE 3D
Original price was: £3,799.00.£3,449.00Current price is: £3,449.00. (excl. VAT)
Forged from the Pro2 Series, Raise3D’s Pro3 Series professional dual extruder 3D printers meet the needs of both production and multi-sized rapid prototyping, with high precision and round-the-clock stable operation.
Please scroll down to find full product specs, features, videos and more
1 in stock
Product successfully added to the Quote List
Description
The Pro3 Series is comprised of the Pro3, with a build volume of 300x300x300mm, and the Pro3 Plus, with a build volume of 300x300x605mm, fulfilling the requirements of large-scale production and multi-sized rapid prototyping. A high-quality printer design that includes enhanced features and a smart assistant system known as EVE, all of which make the Pro3 Series dual extruder 3D printers an excellent option for professional 3D printing.
Independent Modular Extruder with Detachable Hot End
- The Pro3 Series is equipped with an independent modular extruder with a dual extrusion structure. This allows the Pro3 Series to print using a variety of filaments, reduce clogging, and allow convenient disassembly and replacement of components.
- The hot end of the Pro3 Series is easy to remove, facilitating the replacement and maintenance of the hot end.
- Users can also easily take off the front cover of the extruder to accurately locate common printing impediments such as filament jams.
Auto Bed Leveling
Auto bed leveling improves bed adhesion and allows the extruder to adjust to even the most minor of surface contour changes for better final print quality.
Flexible Build Plate
The flexible build plate can be bent to easily remove 3D printed parts while minimizing potential damage to the final print. The Pro3 Series is also compatible with metal build plate, and high temperature build plate made of 100% pure borosilicate glass.
Air Flow Manager & HEPA Air Filter
- The Air Flow Manager of the Pro3 Series improves heat dissipation and air circulation, and creates a stable environment inside the print chamber. Equipped with a HEPA air filter, Air Flow Manager can also filter and clean the air inside the chamber.
- The Pro3 Series uses HEPA air filtration to clean the air of any particles (including nano-particles) released during the 3D printing process. The HEPA air operates silently, quietly working in the background of any work area.
Lightweight Cable with Digital Temperature Measurement
The Pro3 Series replaces the drag chain cable with a lightweight cable, to reduce the weight of the extruder and keep the center of gravity in the middle during printing for more stable print quality. The Pro3 Series also uses digital temperature measurement, for accurate and anti-jamming temperature reading.
EVE Smart Assistant
- The EVE assistant can guide users to accurately locate and resolve issues that could affect the final print job.
- It has a function that gives users reminders about regular scheduled interventions to ensure that printer maintenance is performed on time.
- It also helps reduce maintenance time and communication costs for an efficient maintenance process.
Specifications
Printer
| PRINT TECHNOLOGY | FFF |
|---|---|
| BUILD VOLUME (WXDXH) | Single Extruder Print: 300×300×300 mm Dual Extruder Print: 255×300×300 mm |
| LAYER RESOLUTION | 0.01-0.25 mm |
| FILAMENT TYPE | PLA/ ABS/ HIPS/ PC/ TPU/ TPE/ PETG/ ASA/ PP/ PVA/ Nylon/ Glass Fiber Infused/ Carbon Fiber Infused/ Metal Fill/ Wood Fill |
| BUILD PLATE | Flexible Steel Plate with BuildTak |
| HEATED BUILD PLATFORM | Yes |
| MAX BUILD PLATE TEMPERATURE | 120°C |
| ENCLOSURE | Yes |
| NOZZLE DIAMETER | 0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available) |
| NOZZLE WORKING TEMPERATURE | 170-300 ℃ |
| NUMBER OF NOZZLES | 2 |
| TRAVEL SPEED | 30-150 mm/s |
| FILAMENT RUN-OUT SENSOR | Available |
| PRINT HEAD SYSTEM | Dual-head with electronic lifting system |
Software
| SLICING SOFTWARE | ideaMaker |
|---|---|
| SUPPORTED FILE TYPES | STL/ OBJ/ 3MF/ OLTP |
| SUPPORTED OS | Windows/ macOS/ Linux |
| MACHINE CODE TYPE | gcode |
Printer Controller
| USER INTERFACE | 7-inch Touch Screen |
|---|---|
| SCREEN RESOLUTION | 1024×600 |
| MOTION CONTROLLER | Atmel ARM Cortex-M4 120MHz FPU |
| LOGIC CONTROLLER | NXP ARM Cortex-A9 Quad 1 GHz |
| MEMORY | 1GB |
| ONBOARD FLASH | 8GB |
| OS | Embedded Linux |
| PORTS | USB 2.0×2, Ethernet×1 |
| EXTENDABLE PORTS | PWM*2, I2C*1, SPI*1, UART*1, GPIO*4, 8Bit ADC*5, USB2.0*1, 5v-1A*2, 3.3v-200mA*1, Reset*1, Gnd*3 |
| NETWORK | Wi-Fi, Ethernet |
| Pro3 | Pro3 Plus | |
|---|---|---|
| Build Volume (W×D×H) | Single Extruder Print: 300×300×300 mm Dual Extruder Print: 255×300×300 mm | Single Extruder Print: 300×300×605 mm Dual Extruder Print: 255×300×605 mm |
| Machine Size (W×D×H) | 620×626×760 mm | 620×626×1105 mm |
