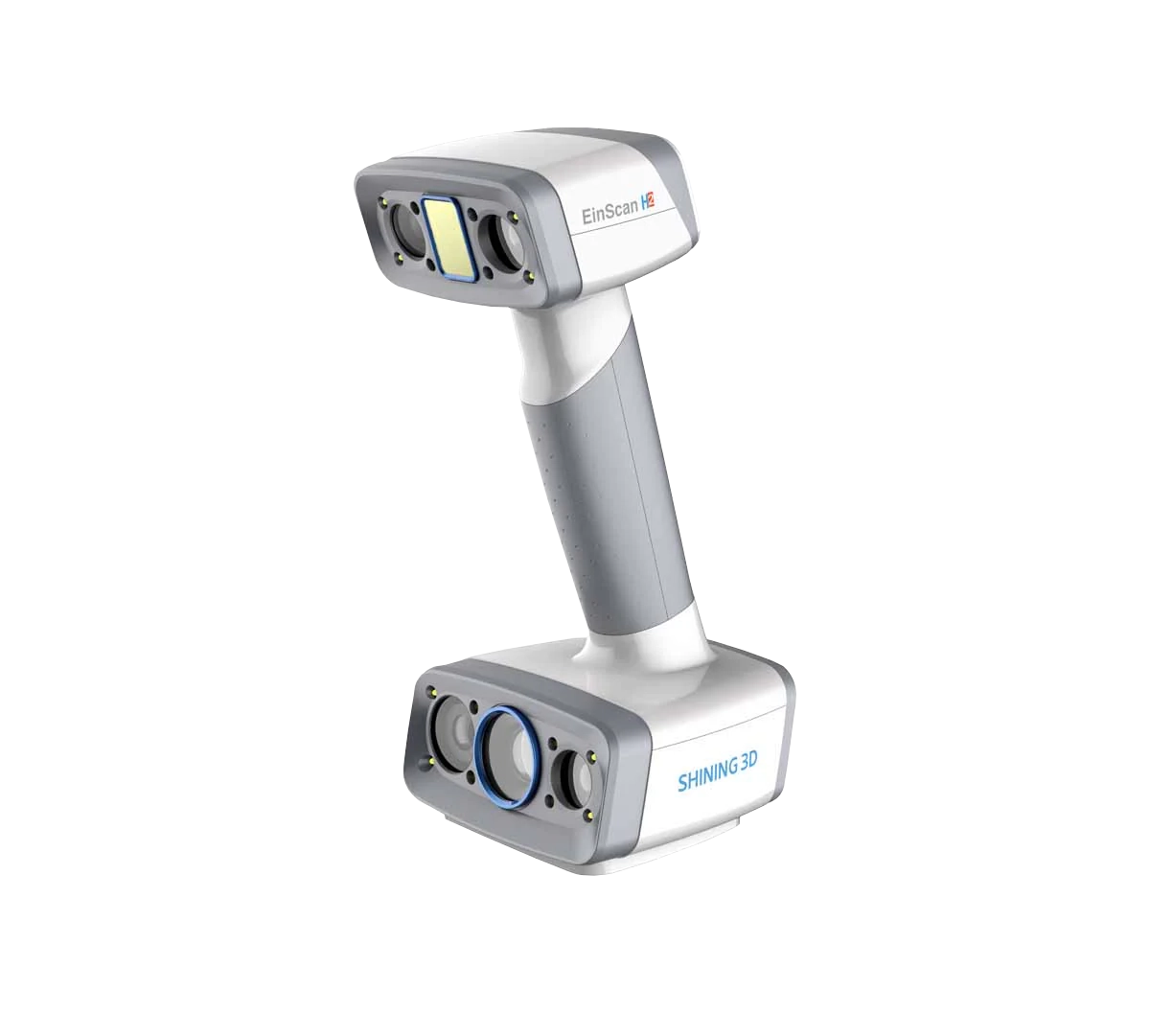

SHINING 3D EINSCAN H2 3D SCANNER (Including Transport Case)

£4,625.00 (excl. VAT)

Hybrid LED & Infrared Light Source Handheld Color 3D Scanner



Please scroll down to find full product specs, features, videos and more 👇



£4,625.00 (excl. VAT)

SHINING 3D EINSCAN H2 3D SCANNER (Including Transport Case)

£4,625.00 (excl. VAT)

Buy Now
Add to cart

£4,625.00 (excl. VAT)

Need help? info@dream3d.co.uk / 02070888163

SHINING 3D EINSCAN H2 3D SCANNER (Including Transport Case)

£4,625.00 (excl. VAT)

Buy Now
Add to cart

Buying in bulk or multiple items?

Ongoing Tech Support

Thousands of products available for next day delivery

Product Details

Pictures & Videos

Buying Options

Product details

High Texture Resolution Handheld 3D Scanner

The EinScan H2 improves on its predecessor with a 5MP resolution texture camera, enhanced accuracy, and 3 infrared VCSEL projectors for more photorealistic textures and better quality data. Its wide scanning area and adjustable working distance make it suitable for various scenes and objects, both small and large, in narrow or wide spaces. The EinScan H2 is an efficient 3D scanning tool that can revolutionize your workflow.

Major Updates Include:

5MP texture camera

3 VCSEL projectors

Accuracy up to 0.05mm

Ultra-wide FOV and adjustable working distance

Superior Environmental Adaptability

Provide superior material and lighting adaptability, effortlessly handling various surface types and scanning environments.

Hybrid Light Source

Dual Light source improves scanning efficiency.

·LED light offers fast 3D scanning with accurate, high-quality data.

·Infrared VCSEL is ideal for capturing dark surfaces, for human body scanning, and for bright-lit environments.

Ultra-wide FOV and
Adjustable Working Distance

Adjustable working distance

Enables working distance adjustment from 200mm to 1500mm, to adapt to narrow or wide scenes and objects of various sizes.

FOV (Field of View) up to 780mm x 900mm

Offers flexibility in scanning volume to capture large-sized objects quickly.

Marker-free scanning

Scans rich geometric features without the hassle of markers.

Optimized for Face and Body 3D Scanning

Flashless infrared technology

Ensures optimal comfort during face and body 3D scanning.

Advanced hair enhancement algorithm

Designed to successfully capture light and dark hair.

Non-rigid algorithm in IR Mode

Captures 3D body data quickly and seamlessly, with auto-compensation of slight movements to eliminate misalignment risks.



Open for Everybody:
Our SDK – Your Software

The EinScan H2 scanning SDK is available and open for customization! Integrate our powerful scanning and data processing into your own software or app.

Remarkable Scanning Software

Delivers a professional yet easy-to-use 3D scanning interface with automated processing, intuitive UI design, and intelligent data quality indicators.

EinScan H2 is equipped with software Solid Edge SHINING 3D Edition to help you achieve more possibilities.



Specification

White Light Mode IR MODE
Light Source White Light, visible Infrared light, invisiblee
Safety LED light(eye-safe) CLASS І (eye-safe)
Scan Accuracy Up to 0.05mm Up to 0.1mm
Volumetric Accuracy* 0.05+0.1mm/m 0.1mm±0.3mm/m
Scan & Align Speed 1,200,000points/s, 20FPS 1,060,000points/s, 20FPS
Camera Frame Rate 55FPS 55FPS
Align Modes Markers Alignment, Feature Alignment, Hybrid Alignment, Texture Alignment Feature Alignment, Hybrid Alignment, Texture Alignment, Global Markers
Working Distance 470mm 470mm
Depth of Field 200-700mm 200-1500mm
Maximum FOV 420mm*440mm 780mm*900mm
Point distance 0.25mm-3mm 0.2mm-3mm
Built-in Color Camera Yes Yes
Color Scanning Support Support

Pictures & Videos

Buying Options

Debit/Credit Card (VISA/MASTERCARD/MAESTRO/AMERICAN EXPRESS)

Business Account Credit Terms – between 30-60 days – Please email us at Orders@Dream3D.co.uk

PayPal

Klarna

stripe

Bank Transfer – Please email us at Orders@Dream3D.co.uk

Business Finance Lease – Please email us at Orders@Dream3D.co.uk to find out more
