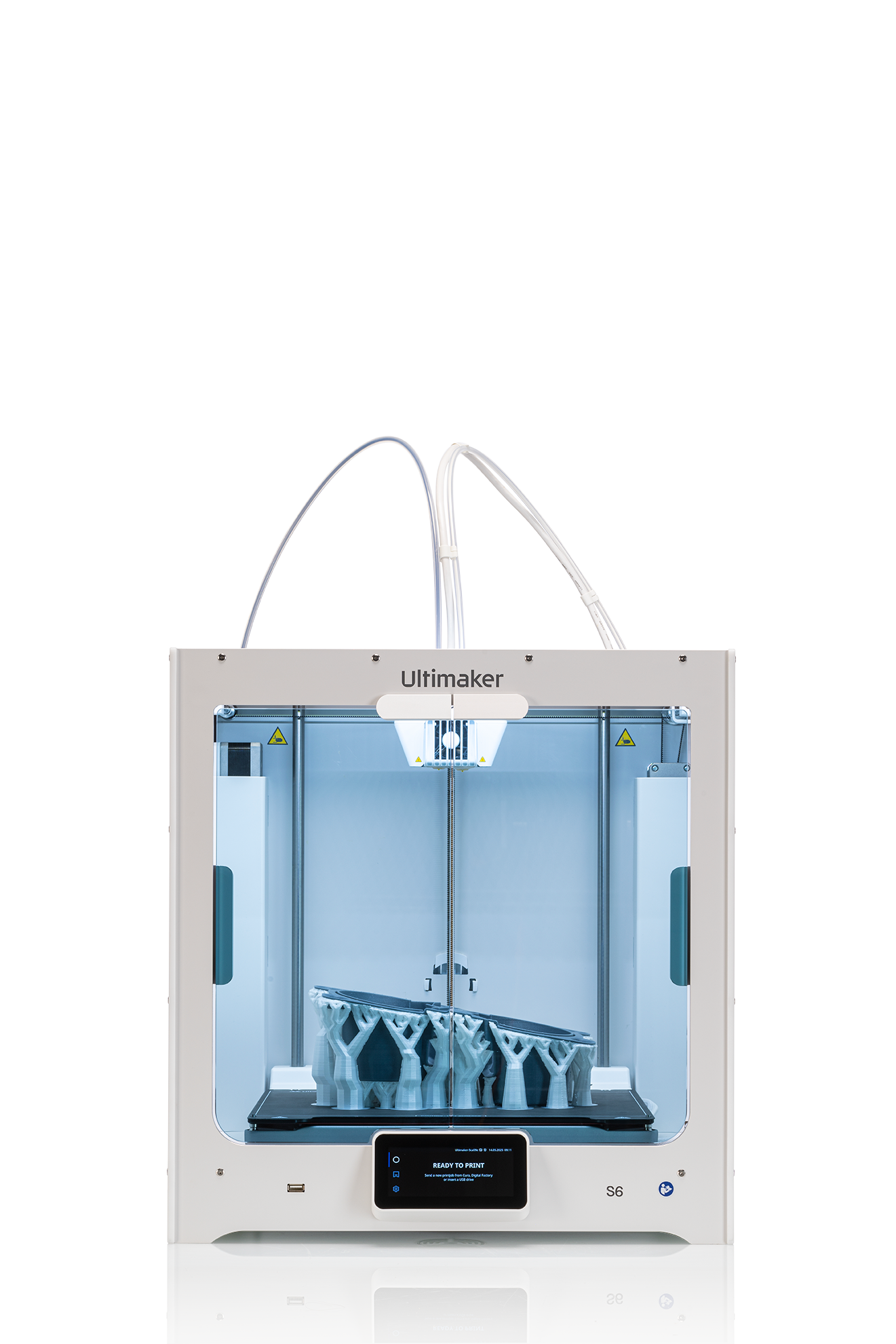

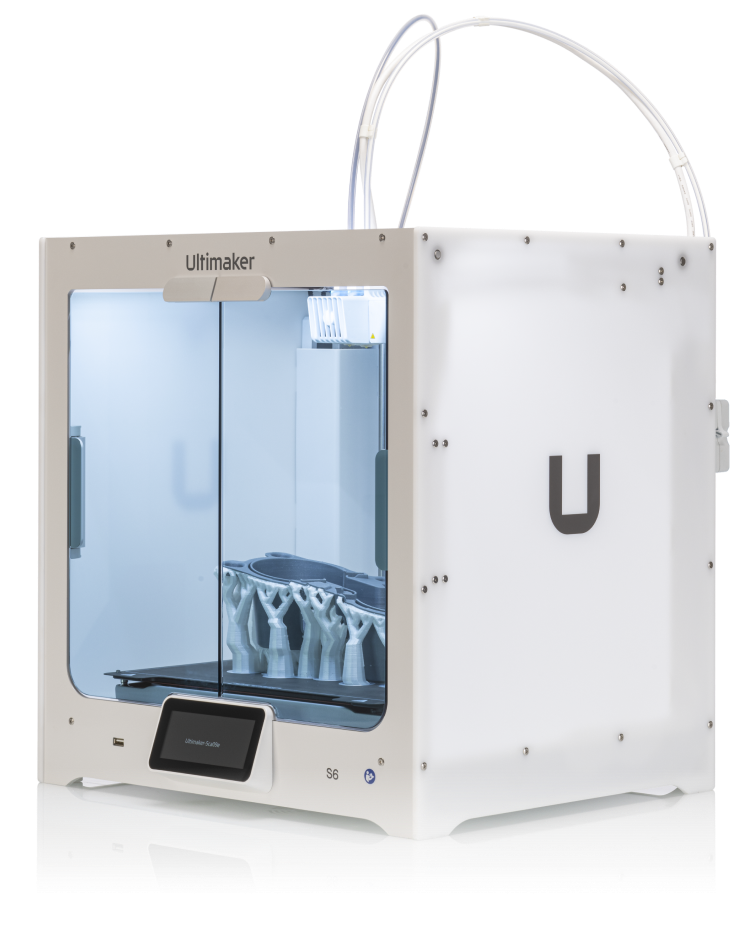

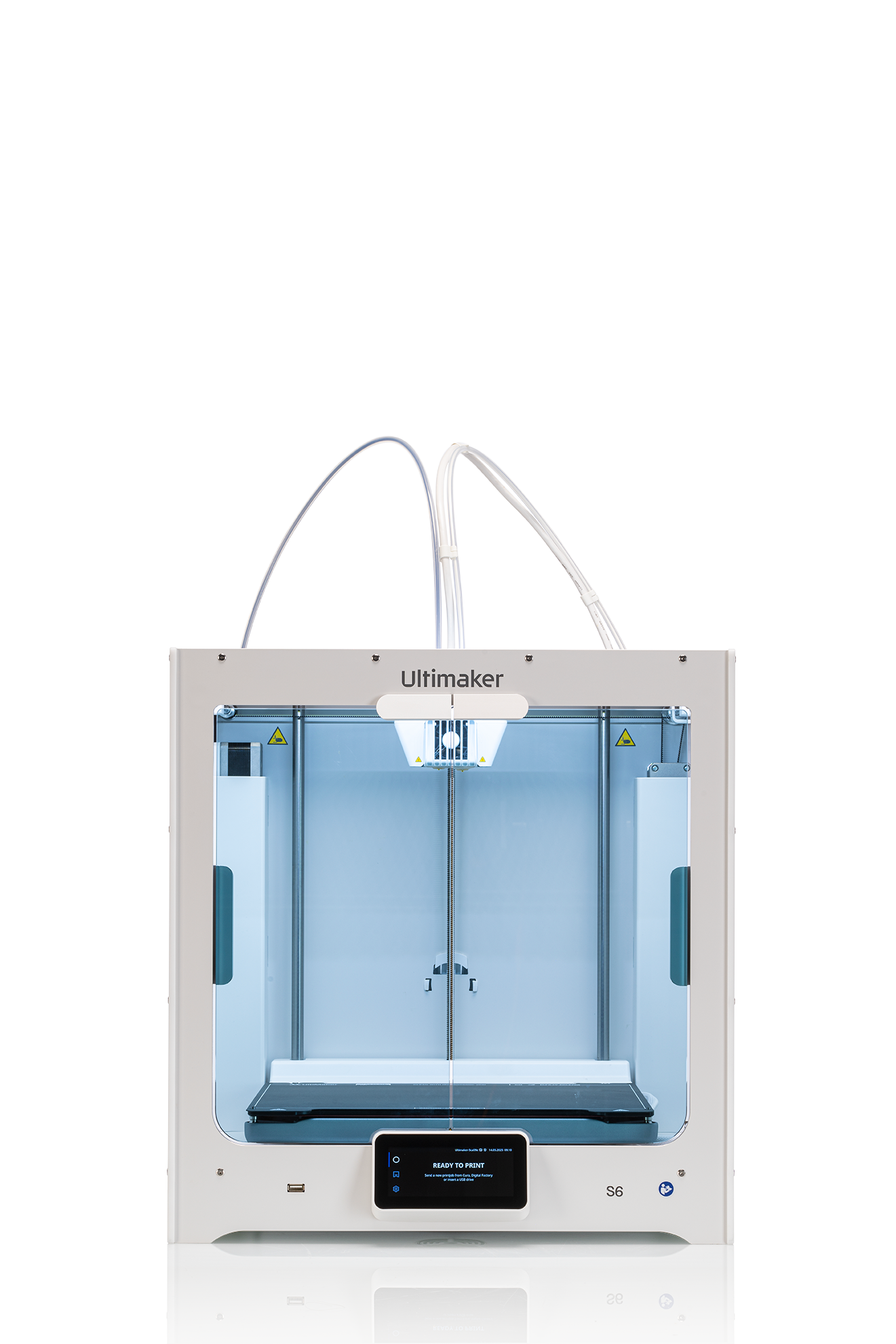

UltiMaker S6 3D Printer

Categories: 3D Printers, 3D Printing, BRANDS, Filament 3D Printers, HOMEPAGE SLIDER - 3D PRINTERS, Industrial/Large Format 3D Printers, ULTIMAKER Brand: ULTIMAKER

Description

The UltiMaker Cheetah motion planner

Unlock new levels of efficiency with the new UltiMaker Cheetah motion planner, redesigned high flor print cores, built in accelerometer, new feeder system and improved firmware

The only 3D printing software you will ever need

Digital Factory is designed to streamline every step of your 3D printing workflow, from slicing, to file management and even maintenance. Scalable for any team or enterprise, Digital Factory makes managing your 3D printing projects easier, faster, and more collaborative.

Advanced hardware and software security features built-in for professional use.

Designed and built in Europe, the UltiMaker S6 is equipped with comprehensive security features, offering peace of mind for professionals in engineering and manufacturing. From secure hardware to advanced firmware, every aspect is designed to protect your intellectual property and ensure safe operation.

Other Key Features

The S6 works with 301+ materials including the following:

CLICK TO VIEW

Specification

Printer Properties:

Technology	Fused deposition modeling (FDM)

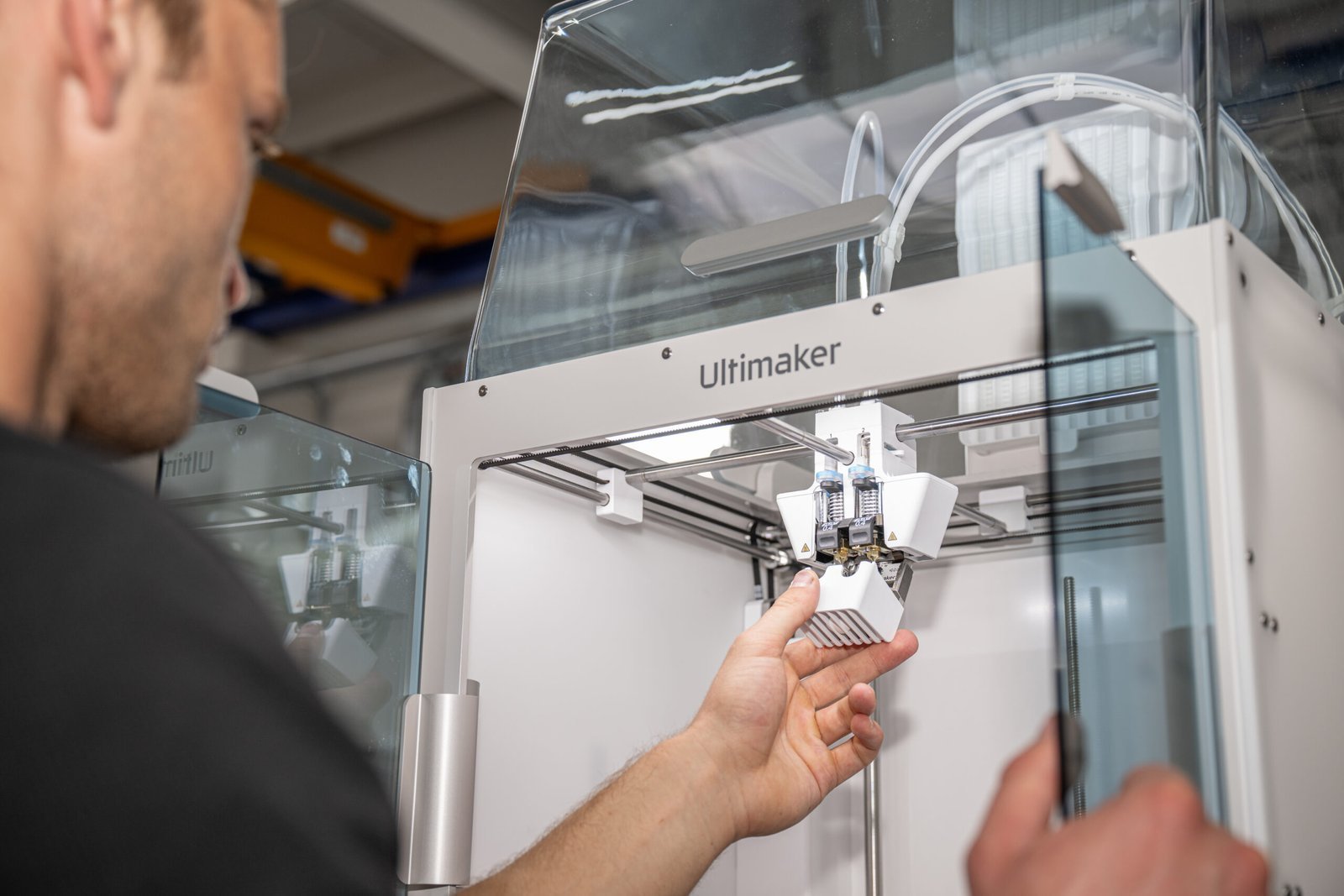

Print head	Dual-extrusion print head with a unique auto nozzle-lifting system, flood detection and inductive probing
Feeder type	Dual gripper feeder with tension adjustment, release functionality and filament feed-rate control
Motion planner	Smooth, precise 3D printing with UltiMaker Cheetah. The world’s first and only jerk limited motion planner, with third order continuous, smooth motion, and corner blending algorithm
Filament diameter	2.85 mm
Compatible print cores	AA+ 0.4 (included), CC+ 0.4, BB 0.4, 0.8 and DD 0.4 (sold separately) *Legacy AA and CC print cores can be used in combination with pre-sliced print jobs.
Nozzle temperature	Up to 300°C (644 °F)
Dimensional accuracy	± 0.15 mm ± 0.15% feature nominal length* *Typical accuracy based on selected geometries, materials, and randomly selected machines
Build plate	Heated flexible PEI build plate (Up to 120 °C (248 °F)) or heated glass build plate (20 – 140 °C)
Build volume (XYZ)	330 × 240 × 300 mm (~13 × 9.4 × 11.8 in)
Build volume temperature	Enclosed build volume < 50 °C (122 °F) open-loop temperature control
Layer resolution	60 – 400 microns (depending on the print core nozzle size and print profile)
Extrusion flow	Up to 35 mm3/s
XY speed, acceleration, jerk	Up to 500 mm/s, up to 50.000 mm/s2, up to 100.000.000 mm/s3
Material handling	Dual spool holder with NFC recognition
Operating sound	< 50 dBA
Display	Fast responsive color touchscreen
Monitoring	HD camera
System on module	ARM cortex quadcore at 1.8 GHz
Real-time controller	600 MHz Arm-cortex M7
Connectivity	Wi-Fi 2.4 & 5 GHz: IEEE 802.11a/b/g/n/ac. LAN: Gigabit Ethernet. USB: 2.0

Physical Dimensions

Dimensions	495 × 585 × 780 mm (~19.5 × 23 × 30.7 in) (inc. spool holder)
Net Weight	30 kg (66 lbs)

Ambient Conditions

Operating Temperature	15 – 32 °C (59 – 90 °F), 10 – 90 % RH non-condensing
Non-operating Temperature	0 – 32 °C (32 – 90 °F), 10 – 90 % RH non-condensing

Software

Print Preparation	UltiMaker Cura 5.10.1 or newer Cura Cloud (no installation required)
Printer Management	UltiMaker Digital Factory
Supported OS	Windows, MacOS, Linux

Warranty

Warranty Period

12 Months

Additional information

Brands	ULTIMAKER
Parent Product Category	3D PRINTING
3D Printer Category	Educational and Hobbyist 3D Printers, Industrial 3D Printers, Professional Desktop 3D Printers
3D Printer Format	Filament 3D Printers

About Brand

ULTIMAKER

UltiMaker provides professional 3D printers, materials and software for prototyping, tooling and manufacturing workflows. Its ecosystem includes desktop and professional printers, Cura software and material options, supporting engineers, designers and educators who need reliable FFF 3D printing with a structured workflow.
