CREATBOT PEEK-300
Brands:
CREATBOT
£11,592.50 (excl. VAT)

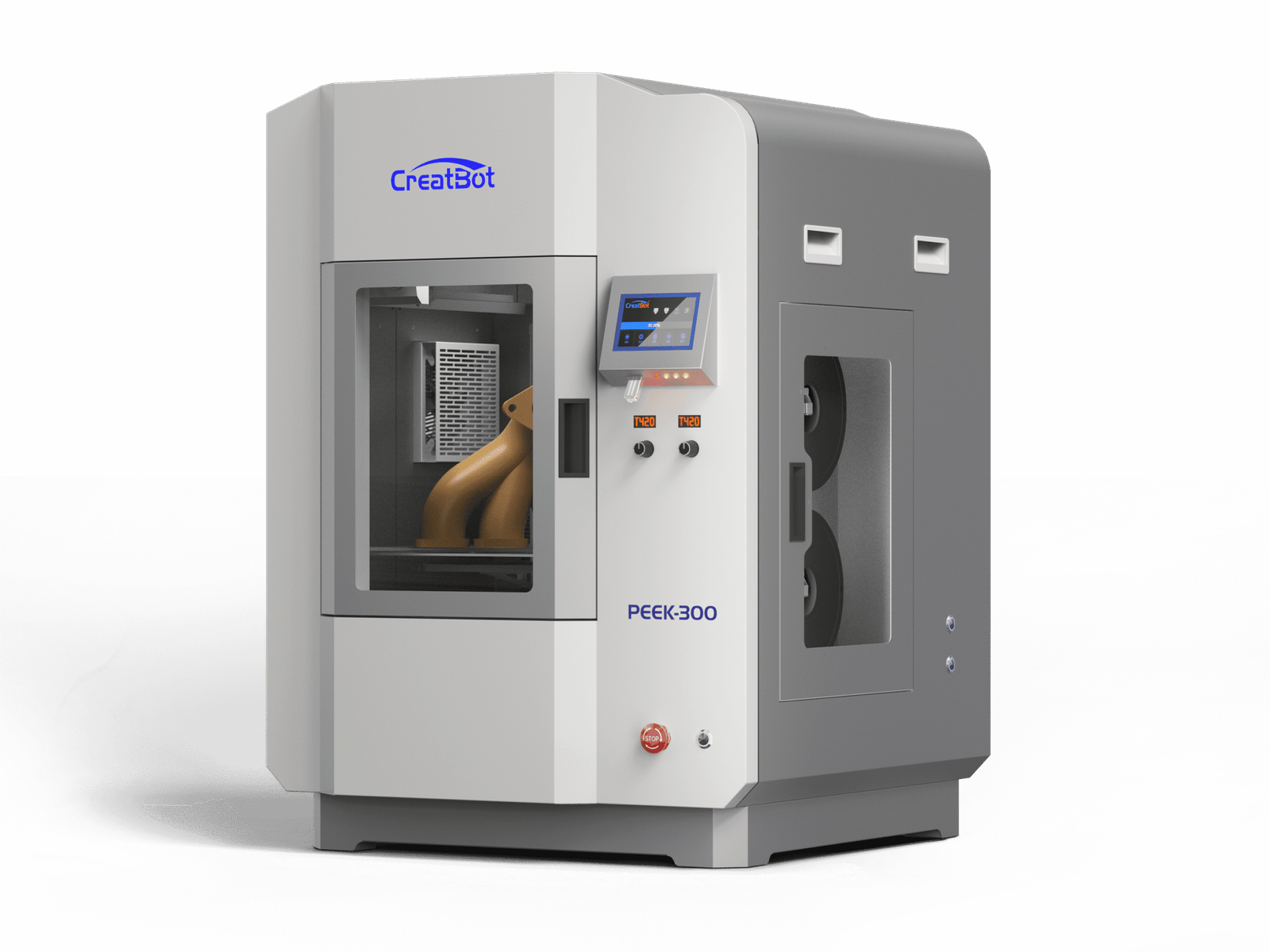

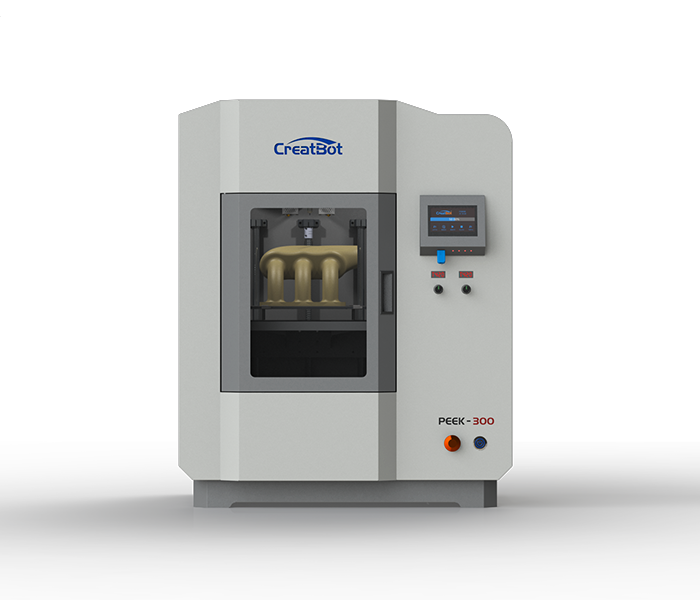

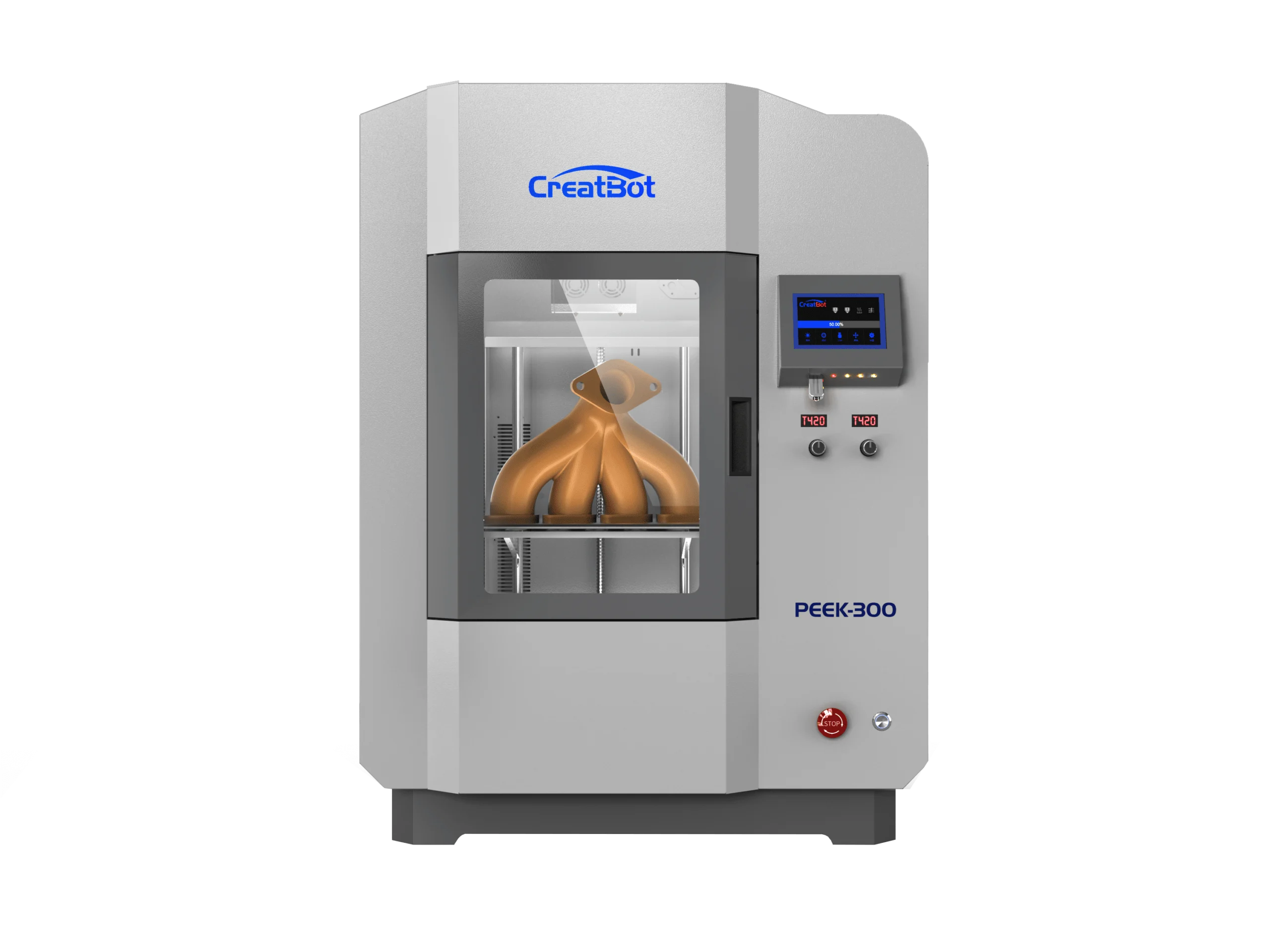

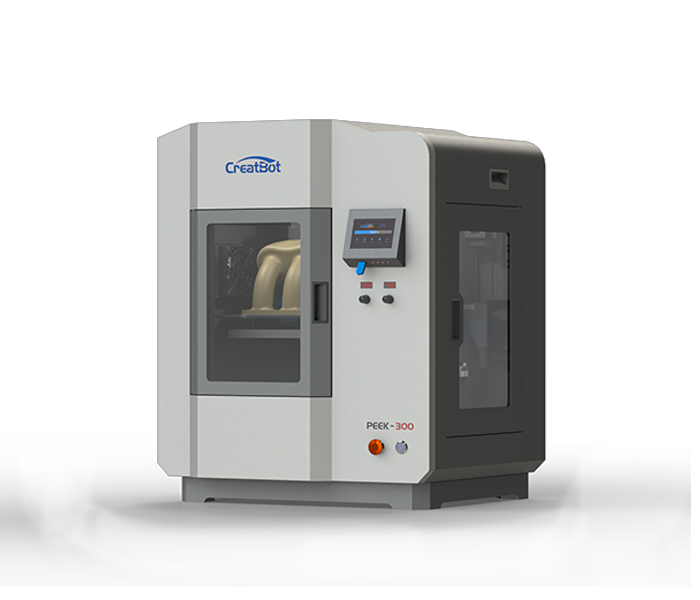

The CreatBot PEEK-300 is an industrial grade 3D printer, focusing on high performance materials such as PEEK, PEKK and PEI (Ultem).
In stock and available for next day delivery
Please scroll down to find full product specs, features, videos and more 👇
1 in stock
Product successfully added to the Quote List
Description
Smart Auto-rising dual extruders 480 ℃ – The PEEK-300 is equipped with a new CreatBot technology, the smart Auto-rising dual extruders. Along with the water cooling, DAS system, Auto-rising extruders. The dual nozzle temperature can go up to 480°C which opens up a huge variety of compatible materials you can print with.

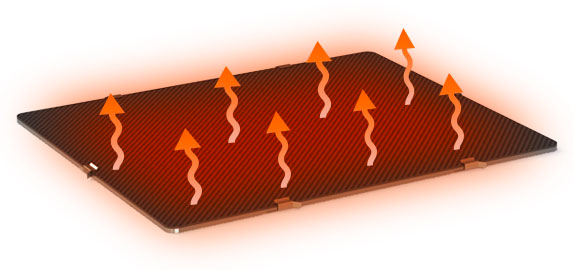

Heatbed temperature up to 200 ℃ – Helps to prevent warping with certain materials and an absolute must for some specific materials including engineering grades.

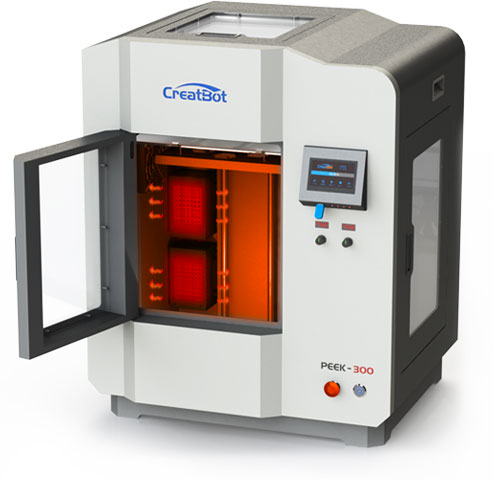

Heated Build Chamber 120°C – Helps to prevent cracking in your prints.

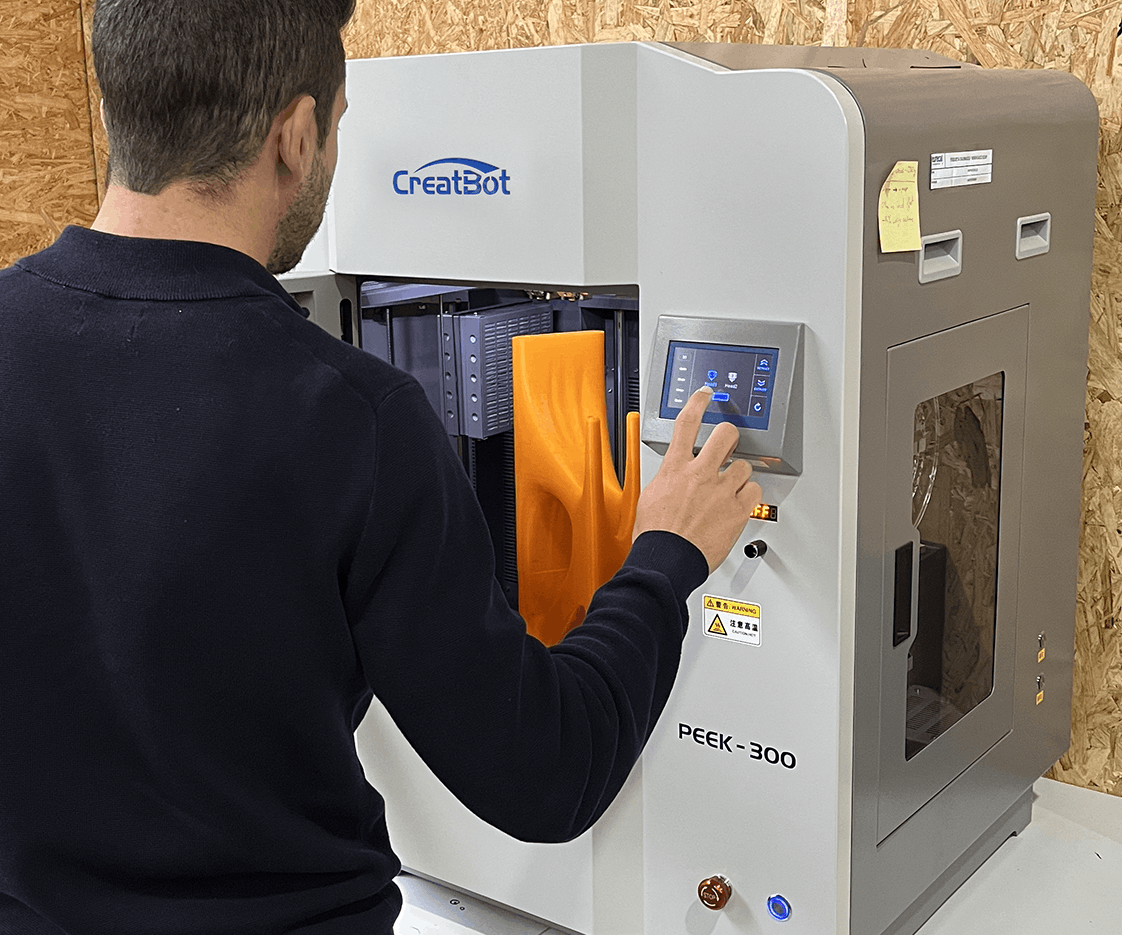

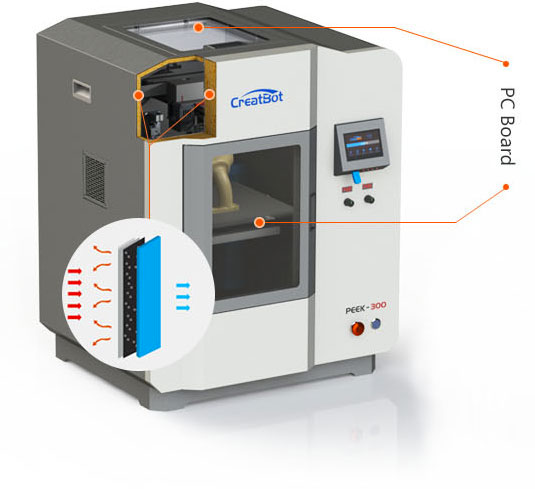

Triple Heat Insulation – The Triple Heat Insulation is made of a double insulation chamber, advance insulation materials and double vacuum PC Boards, which helps to provide Ultra High performance and safety.

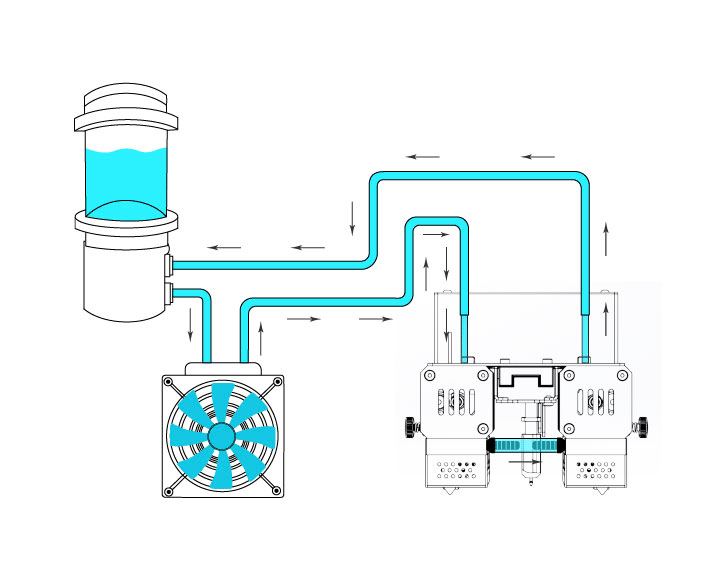

Cooling System – The cooling system is one of the most important parts of the whole thermal system. It is made of
- Liquid cooling, which circulates liquid effectively and for a long time.
- Air pump Cooling, pumping cold air from outside, which prevents any hot air building up in the chamber

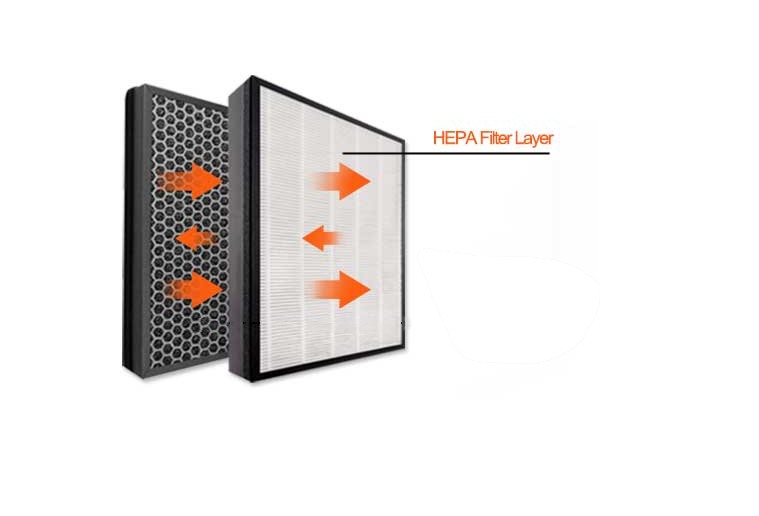

HEPA Air Filtration – The air system can absorb impurities and gases that are generated by printing with special filament. The HEPA filter system helps to keep the environment you are working safe.
Direct Annealing System
Direct Annealing System (DAS), the world’s first and extraordinary technology by CreatBot.Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. (The technology is patent protected and available by CreatBot only)

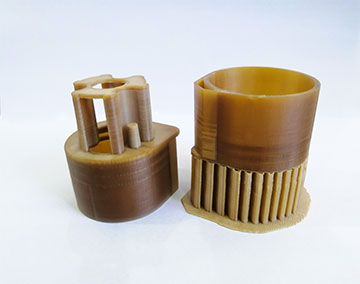

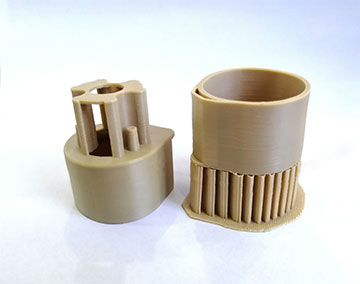

Before Annealing Process (Left) and After Annealing Process (Right)
Before Annealing Process (Left) and After Annealing Process (Right)
DAS annealing process features :
1）Instantaneously:Finished during printing process, no need secondary treatment in oven.
2）Completely:The annealing process point to every extruded filament, not the whole printed model. The internal structure of the whole model could not be fully crystallized or will deform in oven.
3）Controllable:The surrounding temperature can be adjusted to 0-200 °C. the different requirements of toughness and strength can be met by adjusting the DAS temperature function at different material parts.
Specification
Lets get down to detail
| TECHNOLOGY | Fused Deposition Modeling (FDM) |
|---|---|
| BUILD VOLUME | 300*300*400mm |
| FILAMENT DIAMETER | 1.75 mm |
| NUMBER OF NOZZLES | Auto-rising dual extruders |
| PRINTING SPEED | 10-150mm/s |

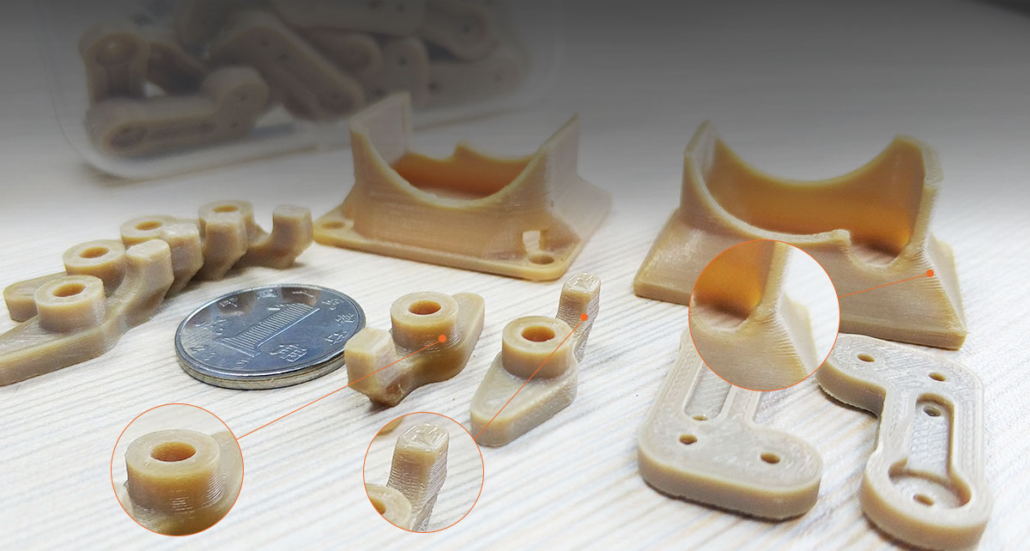

| LAYER RESOLUTION | 0.04 mm |
| NOZZLE DIAMETER | 0.4mm (0.3~1.0mm optional) |

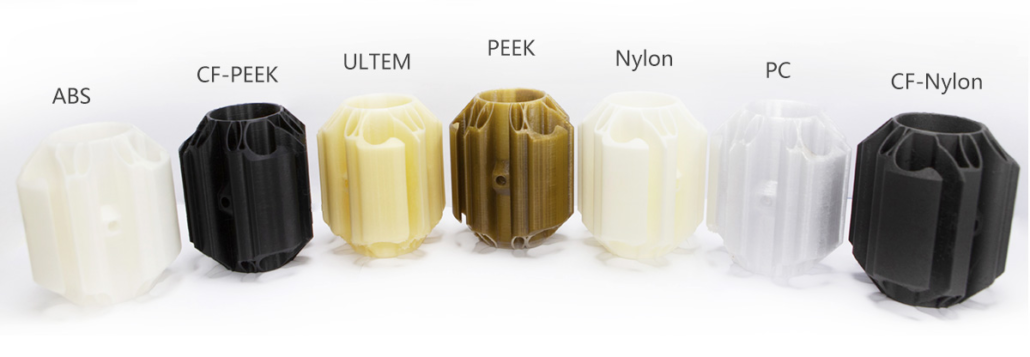

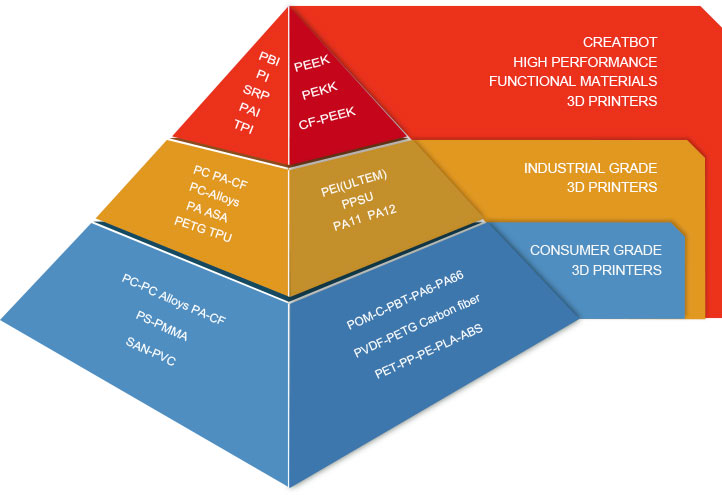

| FILAMENT COMPATIBILITY | Engineering Plastics: PLA, TPU, PC, ABS, PA6, PETG, PVDF, TPU High temperature Material: PPSU, PEI (ULTEM), PA12, PSU, PPS, PA-CF, POM, PP Ultra-performance material: Medical grade PEEK, PEEK, PEKK, CF-PEEK (Carbon fiber), GF-PEEK (glass fiber). |
| Temperature | |
| MAX. NOZZLE TEMPERATURE | 500 ℃ |
| CHAMBER TEMPERATURE | 120℃ |
| PLATFORM MAX TEMPERATURE | 200℃ |
| DIRECT ANNEALING TEMPERATURE | 0~400℃ |
| Mechanical | |
| CONSTRUCTION | Power-Coated Steel, Aluminum Casting for Motion Components, POM |
| BUILD PLATE | Glass Ceramic Panel |
| BUILD PLATE LEVELING | Manual/Automatic |
| EXTRUDER | Directly Drive |
| STEPPER MOTORS | 1.8° Step Angle with 1/16 Micro-stepping |
| COOLING | Air pump cooling & water cooling |
| PLATFORM | PCB aluminum + PEEK print board |
| X Y POSITIONING PRECISION | X Y axis 0.0127mm |
| Z POSITIONING PRECISION | Z axis 0.00125mm |
| MACHINE CONSTRUCTION | Fully enclosed hot chamber |
| EMERGENCY STOP SWITCH | Support emergency stop |
| Software | |
| SOFTWARE BUNDLE | Creatware, Simplify3D, Cura, Slic3r |
| OPERATING SYSTEMS | Win7/8/10, |
| SUPPORTED FILE TYPES | STL,OBJ,Gcode,AMF |
| Special Function | |
| OUTAGE RESTORED | Save data when power is off |
| FILAMENT DETECTION | Pause printing when filament run out |
| DIRECT ANNEALING SYSTEM (DAS) | Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials. |
| HEAT INSULATION | Triple Heat insulation |
| HIGH TEMPERATURE ACCESSORIES | High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing. |
| Electrical | |
| POWER REQUIREMENTS | 200V~240V, 20A |
| RATED POWER | 4600W |
| SCREEN | 4.3” full color touch screen, multi-language |
| PRINT METHOD | USB Connectivity/USB Disk |
| Size & Weight | |
| MACHINE SIZE | 650*600*750 mm |
| GW | 100 kg |
| PACKING SIZE | 820*720*1080mm |
| N.W | 130 kg |
Box Contents
Whats included in the box?
- Creatbot PEEK-300 3D printer
- Dual extruder print head
- Heated Hot bed
- High-temperature nozzles (0.4mm)
- Water cooling system
- Heated build chamber
Specs Comparison With Other Brands
| CreatBot PEEK-300 | Stratasys F370 | Intamsys Funmat Pro410 | Apium M220 | |
| Place of origin | China | USA | China | Germany |
| Build Volume (mm) | 300*300*400 | 355*254*355 | 305*305*406 | 170*170*130 |
| Max Nozzle temperature | 480°C | 300°C | 450°C | 540°C |
| Max Chamber temperature | 120°C | 90 °C | 90 °C | |
| Max hot bed temperature | 200°C | 160°C | ||
| Temperature around the part is controlled | 0-400 °C | None | None | 0-200 °C |
| Min layer resolution | 0.04 mm | 0.013mm | 0.05mm | 0.1mm |
| Number of extruder | 2 | 2 | 2 | 1 |
| Materials | PEKK, PEEK, medical PEEK, Carbon-PEEK, ULTEM, PEI, PPSU, PA/CF, PC, PA Alloys, PA6, PA12, ABS, Carbon Fiber, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, TPU 65A,ETC. | PLA, ABS, ASA, PC-ABS, TPU 92A | PEEK,PEI,PPSU, PA/CF, PC, PC Alloys, PA, ABS, Carbon Fiber-Filled, Metal-Filled, Fiberglass-Filled, Nylon, ASA, PETG, ESD-Safe, HIPS, TPU, PLA, PVA, ETC. | Medical PEEK |
| Machine size | 650*600*750 | 964*711*1626 | 720*680*1470 | 850*685*675 |
| Weight | 120kg | 227kg (with cabinet) | 200kg (with cabinet) | 66kg |
| Price | Less than $ 14,??? | $59,900 | $26,999 | €65,000 |
Download User Manual: creatbot.com/downloads/CreatBot_User_Manual_V7.3_peek-300_en.pdf
Additional information
| 3D Printer Format | Filament 3D Printers |
|---|---|
| Brands | CREATBOT |
| Parent Product Category | 3D PRINTING |
| 3D Printing Product Category | 3D Printers |
