CREATBOT F1000

Brands: CREATBOT

£30,495.00 (excl. VAT)

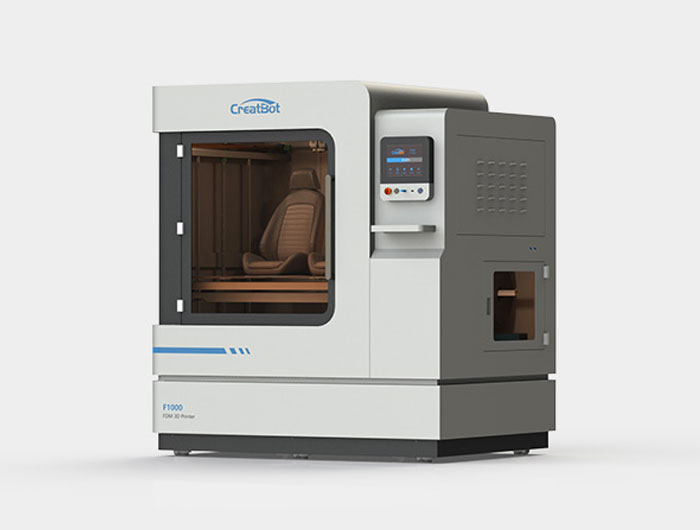

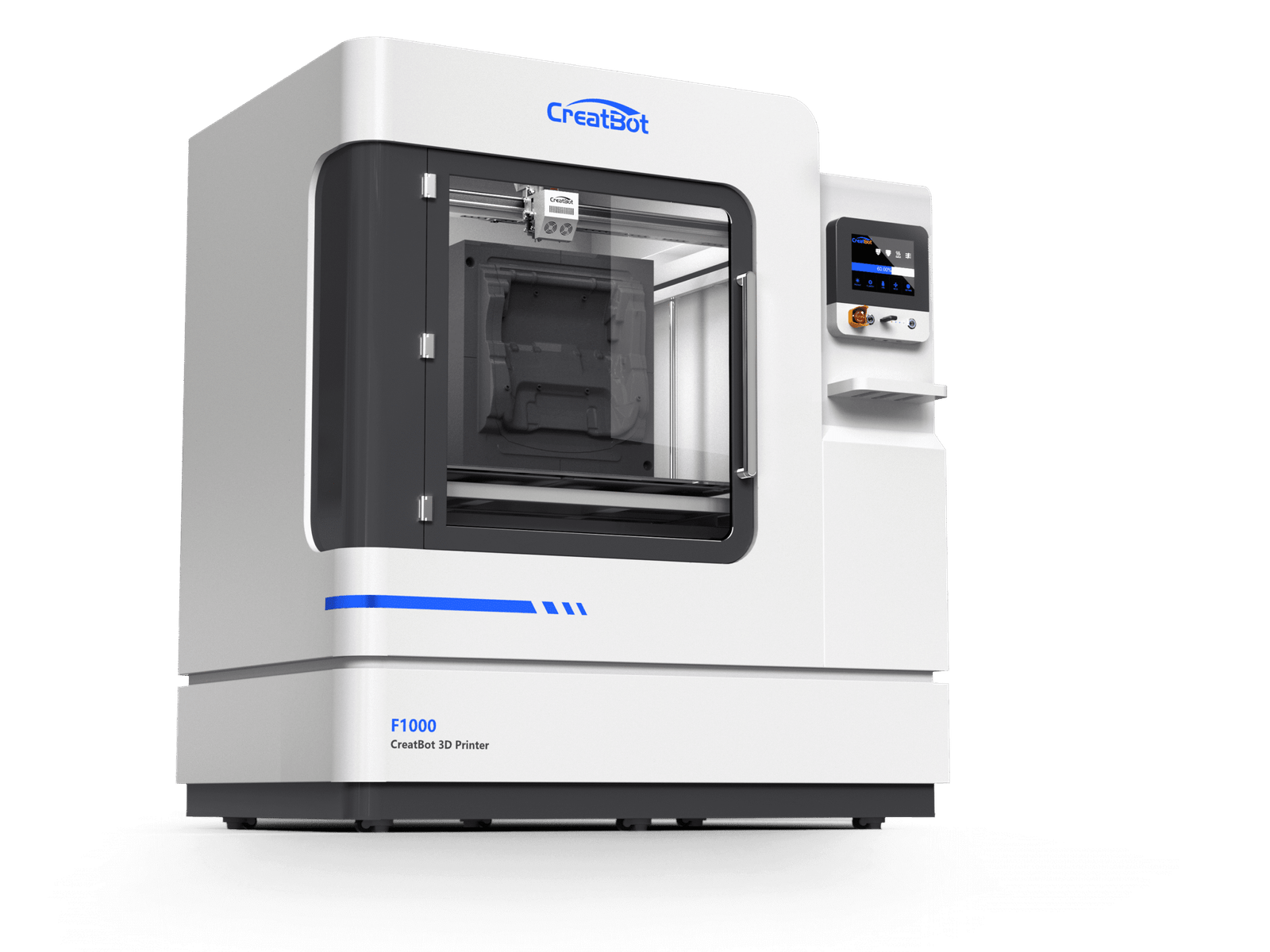

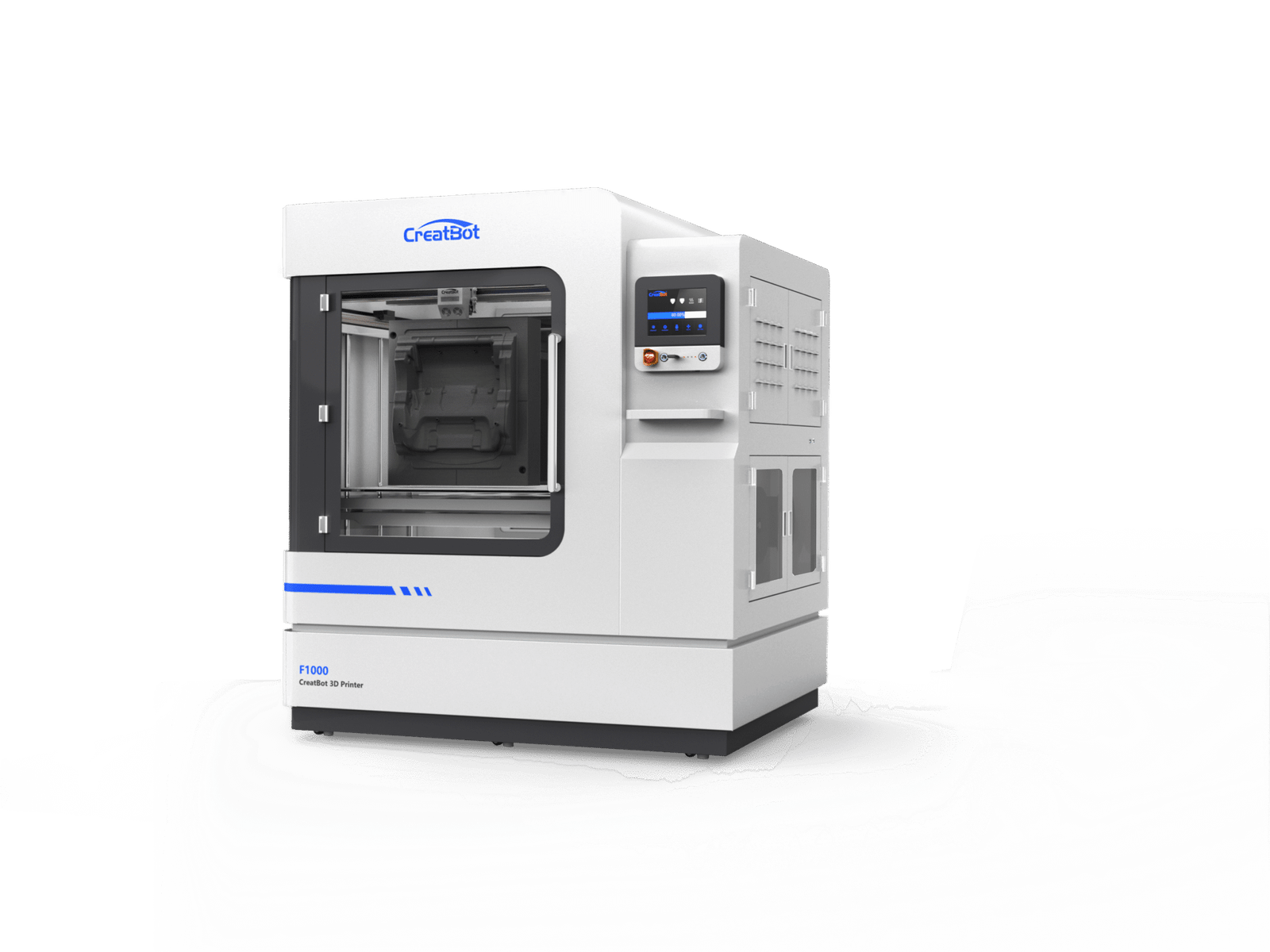

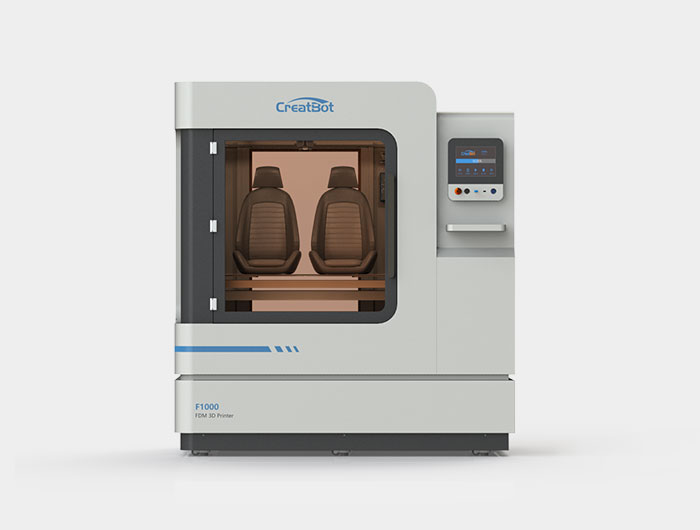

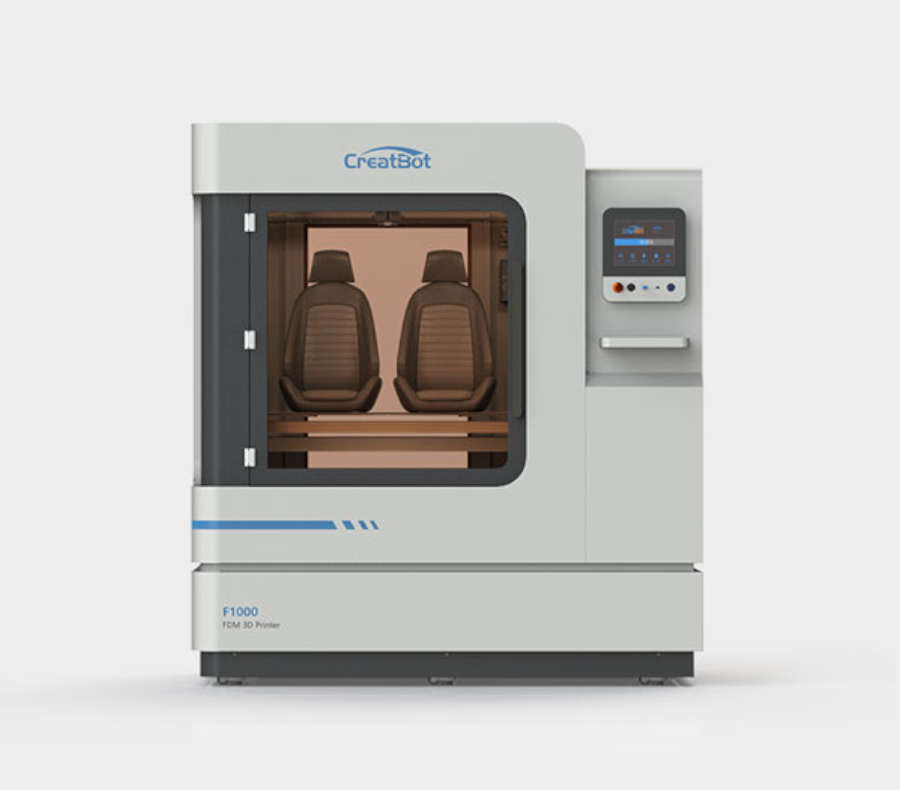

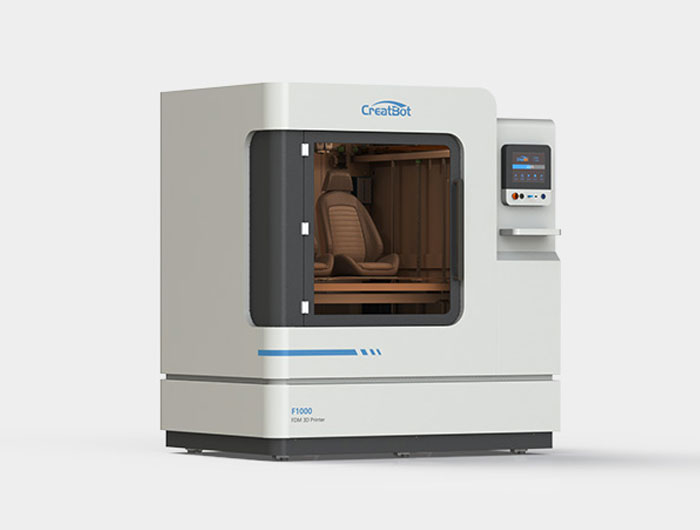

The CreatBot F1000 was designed to make industrial 3d printing of large-scale objects and prototype as easy as possible and sets a new standard in additive manufacturing whilst extending the material capabilities of large-scale 3d printers.



Please scroll down to find full product specs, features, videos and more 👇



2 in stock

Description

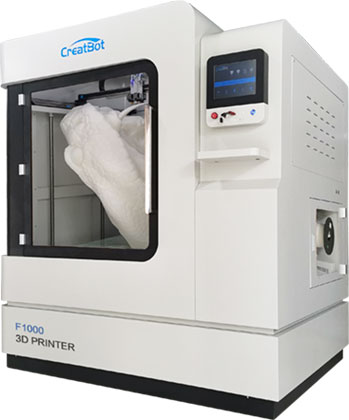

The F100 is embedded with a new smart dual extruder kit, an enclosed heated chamber, automatic leveling system and camera control for big, impressive, prints. Camera control technology allow customers to control printing process with an APP, which can get best printing quality with shortest time without failure.

With a fast-heating platform and hot chamber this high-resolution large-print workhorse produces incredible results with high-quality materials.

Key Features:

Auto-rising Dual Extruders 420 ℃ – F1000 is embedded with new smart auto-rising dual-extruder kit hotend temperature up to 420 ℃, The hotend can be replaced to different size quickly.

Material compatibility – it is able to print huge PLA +water solubility materials ,PVA for prototypes at high speeds. It can also print in ABS, PC, Nylon, Carbon Fiber and Flexible  high performance materials.

High Precision -With an extruder feeding system developed to support high-speed printing and accuracy, can reach up to 0.1 mm, allowing filament extrusions with reduced blockages. Precision up to: 0.1 mm Speed up to: 200 mm/s

Stability – Its steel body ensures stability during printing but also greatly extends working life. The first batch of CreatBot 3d printers with whole-steel body have been working for 9 years and more than 30,000 hours.

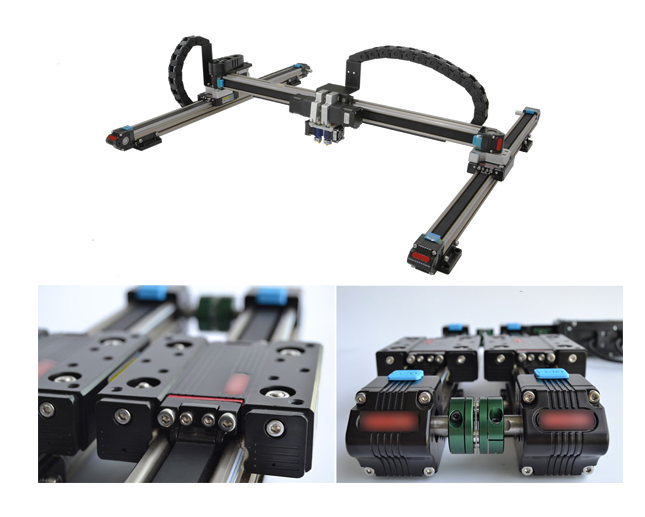

Accurate Linear Guide Rail – The accurate linear rail structure can print models in accuracy high reaching up to 4~5 times higher than a lot of other ordinary optical axis printers. This structure offers accurate filament feeding, so that can print large model fast and perfectly.

Fully Enclosed Chamber Hot Chamber + Filament Drying Room – The fully enclosed chamber can block all external interference. Also this frame provides constant temperature, so that the model won’t deform. With a 60 ℃ hot chamber it ensures print quality for high performance materials.The consumable drying chamber provides chamber temperatures of 45 ℃ and 65 ℃ to dry nylon, PC, ABS and other materials with high water absorption.

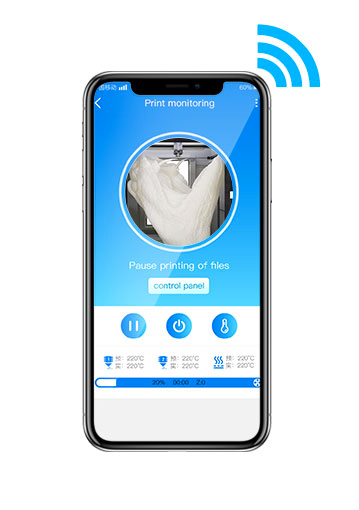

Camera Control Technology – Camera control technology allow customers to control printing process on speed, pause, temp etc with an APP remotely, which can get best printing quality with shortest time without failure. A very useful feature on large model and long time printing.

3-5 business days

Box Contents

Whats included in the box?

  • Creatbot F1000 3D printer.
  • BuildTak platform.
  • Smart dual-extruder kit.
  • High-temp 1.0mm nozzles.
  • Hot chamber.
  • Full-color touchscreen.
  • On-board camera.
  • CreatWare software.

Specification

Lets get down to detail

Printer and Printing Properties
TECHNOLOGYFused Deposition Modeling (FDM)
BUILD VOLUME1000*1000*1000mm
NUMBER OF NOZZLESAuto-rising dual extruders
LAYER RESOLUTION0.05 mm
FILAMENT DIAMETER1.75 mm
FILAMENT COMPATIBILITYABS,PLA,Carbon Fiber,PETG,Nylon,PC,etc.
NOZZLE DIAMETER1.0 mm(0.4~1.5 mm)
PRINT FILE TYPESTL, OBJ, AMF, Gcode
Temperature
MAX. NOZZLE TEMPERATURE420 ℃
MAX. BED TEMPERATURE100 ℃
HOT CHAMBER TEMPERATURE60 ℃
FILAMENT DRY ROOM TEMPERATURE45 ℃/65 ℃
Mechanical
CONSTRUCTIONPower-Coated Steel, Aluminum Casting for Motion Components, POM
BUILD PLATEGlass Ceramic Panel
BUILD PLATE LEVELINGAutomatic
EXTRUDERSmart Dual Extruders
STEPPER MOTORS1.8° Step Angle with 1/16 Micro-stepping
X Y POSITIONING PRECISION0.011 mm
Z POSITIONING PRECISION0.0025 mm
Software
SOFTWARE BUNDLECreatWare, Simplify 3D, Cura, Slic3r, etc
SUPPORTED FILE TYPESSTL,OBJ,Gcode,AMF
OPERATING SYSTEMSWin7/8/10, macOS
Special Function
OUTAGE RESTOREDSave data when power is off
FILAMENT DETECTIONPause printing when filament run out
AUTOMATIC SHUT-DOWNTurn off the power automatically when printing is complete
CAMERA CONTROLCamera remote monitoring and real-time control of the printing process
Speed
BEST PRINTING SPEED60 mm/s
MAX. PRINTING SPEED120 mm/s
Electrical
POWER REQUIREMENTS220~240 V, 50~60 Hz
SCREEN9.7-inch full color touch screen independent operating system (multi-language)
RATED POWERPrinting: 3500W, Chamber: 3000W
STORAGE MEDIAU Disk
CONNECTIVITYUSB
Size & Weight
PRODUCT DIMENSIONS & WEIGHT1740*1300*1920mm 550kg
PACKING SIZE & WEIGHT1910*1460*2190mm 640kg



Additional information
3D Printer Format
BrandsCREATBOT
Parent Product Category
3D Printing Product Category
Reviews (0)
0 reviews
0
0
0
0
0

There are no reviews yet.

Be the first to review “CREATBOT F1000”

Your email address will not be published. Required fields are marked *

1 2 3 4 5
1 2 3 4 5
1 2 3 4 5

About Brand

CREATBOT

CreatBot is a Chinese manufacturer of enterprise-grade 3D printers, established in the early 2010s and among the first companies in China to specialise in desktop 3D printing. The brand has built a strong reputation for large-format and high-temperature FFF machines.

CreatBot focuses on robust, high-performance printers for professional and industrial use, including large-build-volume models such as the D600 series and F1000, as well as high-temperature systems capable of printing engineering materials like PEEK. Its machines serve aerospace, automotive, research and manufacturing applications worldwide.
