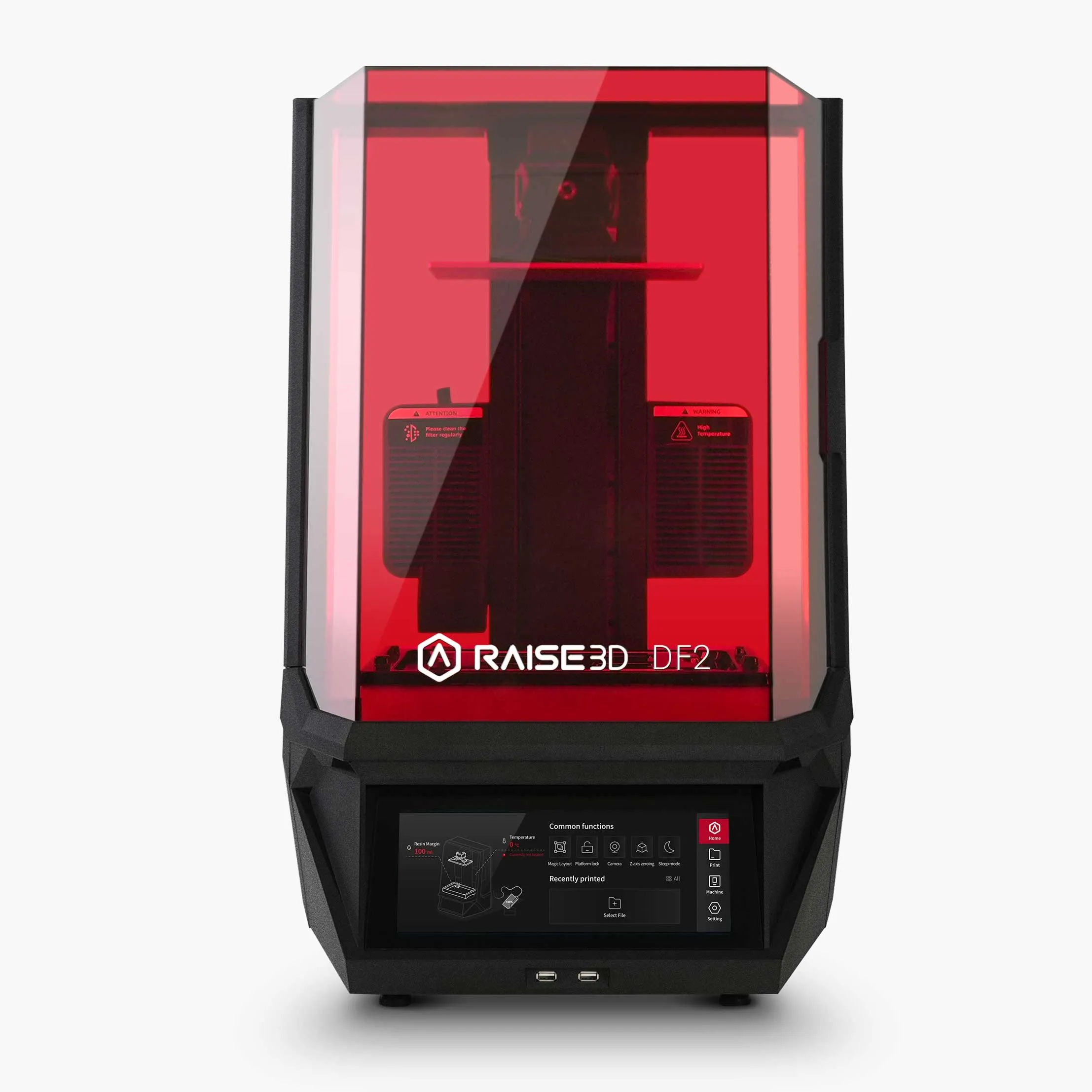

Raise3D DF2 3D Printer

A complete Digital Light Printing (DLP) solution. Experience rapid, detailed, and reliable prints with this all-in-one package optimised for engineering prototypes and low-volume production. DF2 integrates RFID technology for traceability, ensuring a streamlined workflow.

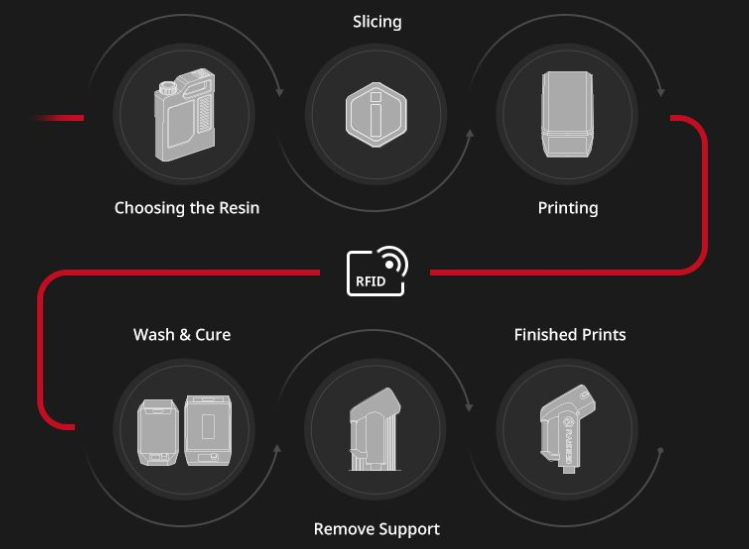

End-to-End DLP Printing Workflow

The Raise3D DF2 Solution utilizes RFID technology to seamlessly integrate hardware, software, and materials, offering users a streamlined workflow without the need for manual entry of process settings. This not only saves operational time but also ensures a consistent workflow, which is critical for production.

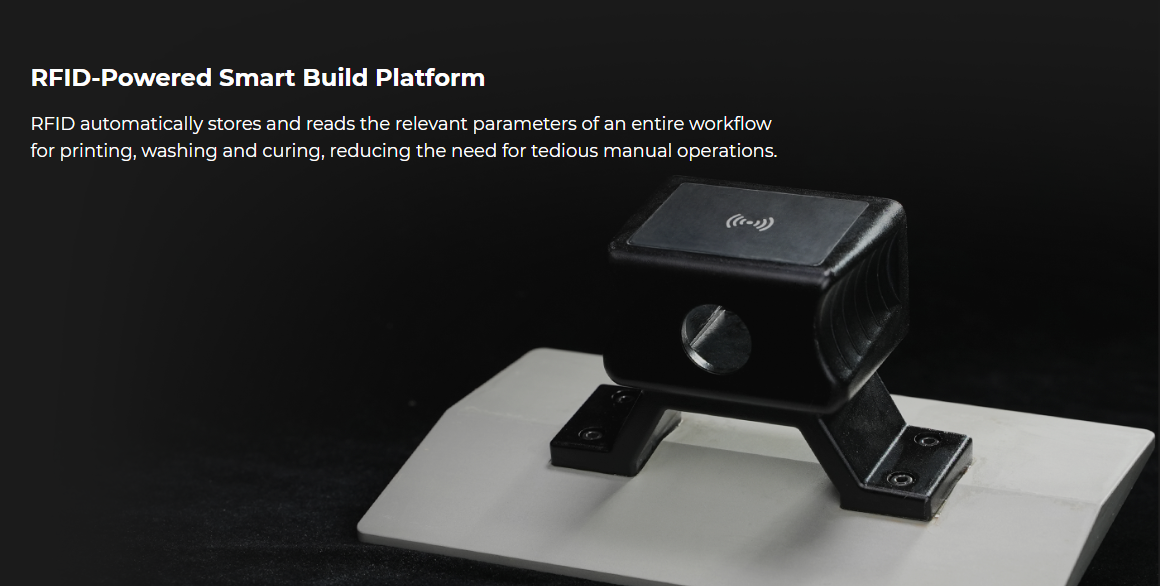

Compared to the time-consuming and messy workflow of DLP, the Raise3D DF2 printer, DF Wash and DF Cure come with an RFID-tag-integrated smart build plate and a logical interface that ensures a cleaner and simpler workflow throughout the printing, washing and curing process. This not only streamlines manual operations but also ensures your printing tasks are always accomplished with the same print results.

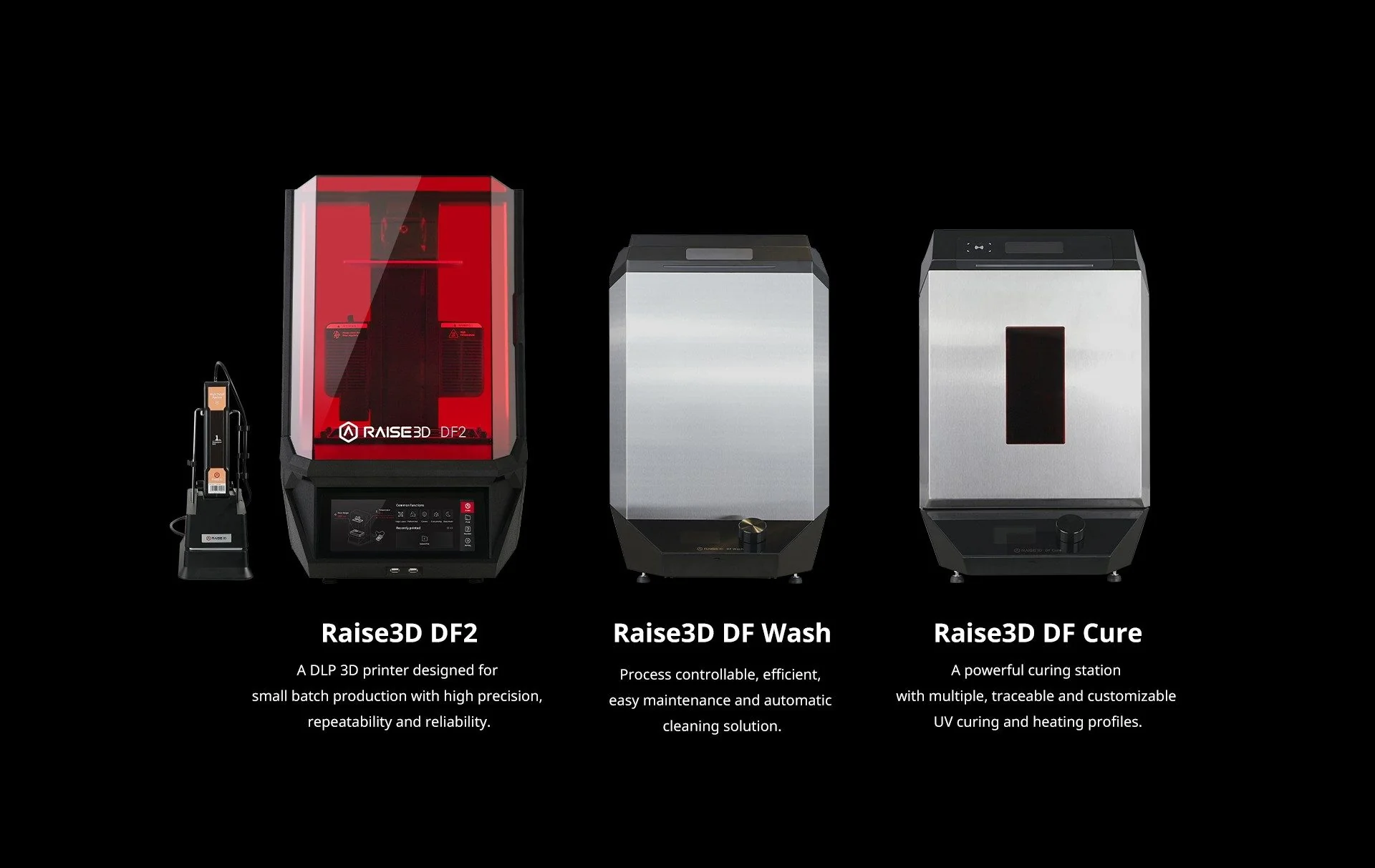

The Full System

High-Definition Detail Inspires Greater Design Freedom

As a DLP solution, with a resolution of 2560 x 1440, combined with advanced features such as Contour Compensation and Anti-Aliasing, the DF2 resin printer produces significantly finer details and smoother surfaces compared to other 3D printing technologies. This results in greater opportunities for very small parts with a high level of definition. Additionally, advanced optical design and system calibration ensure smoothness and accuracy at every step.

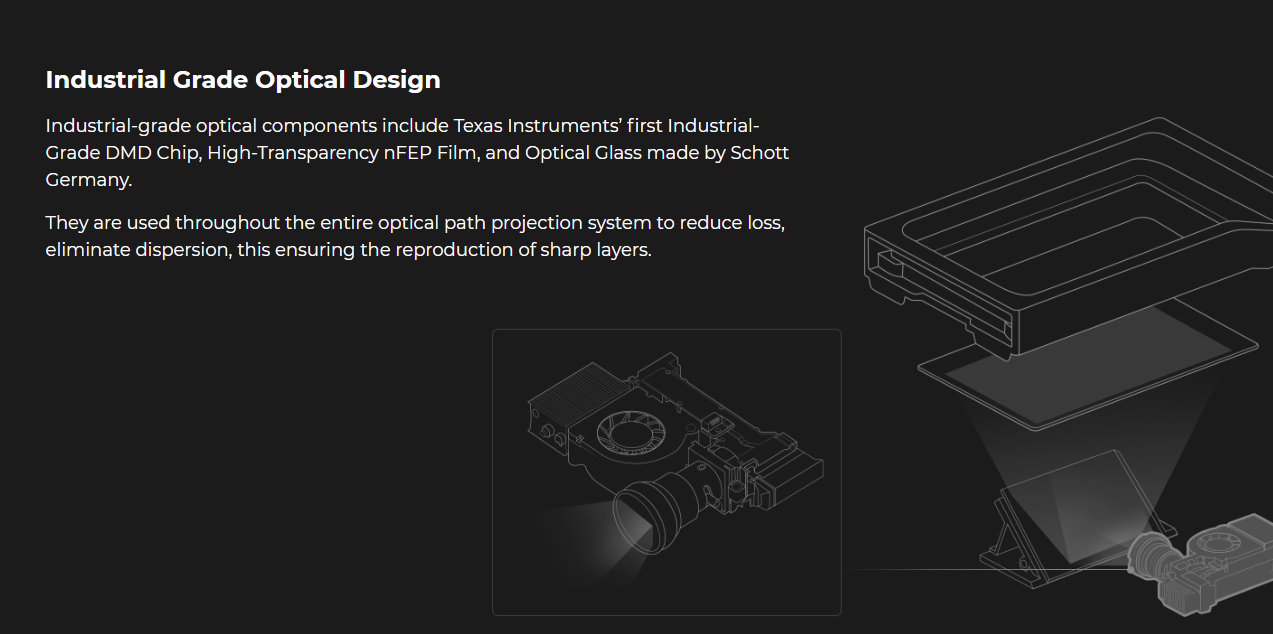

• Light engine with Texas Instruments’ First Industrial-grade DMD Chip for digital light processing printing
• Premium light output quality with frame size error ≤ ±0.1 mm and distortion rate ≤ 0.1%
• Clear pixel image without superimposed effects or surface light field effect

Increased First Print Success Rate

DF2 resin 3D printers are engineered to yield a high print-success rate through both mechanical design and software support:

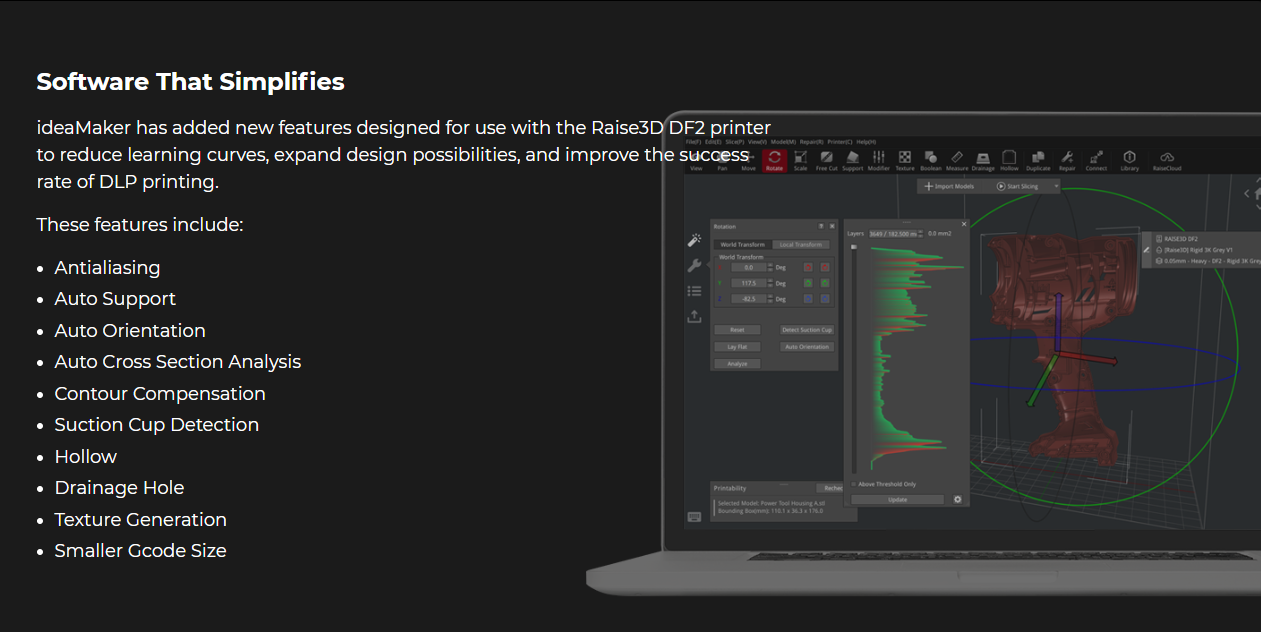

• Optimizations in ideaMaker, including Auto Support, Auto Orientation, and Suction Cup Detection, improve DF2’s first print success rate and reduce the need for time-consuming reprints. (Learn more about ideaMaker support for DF2 solution)

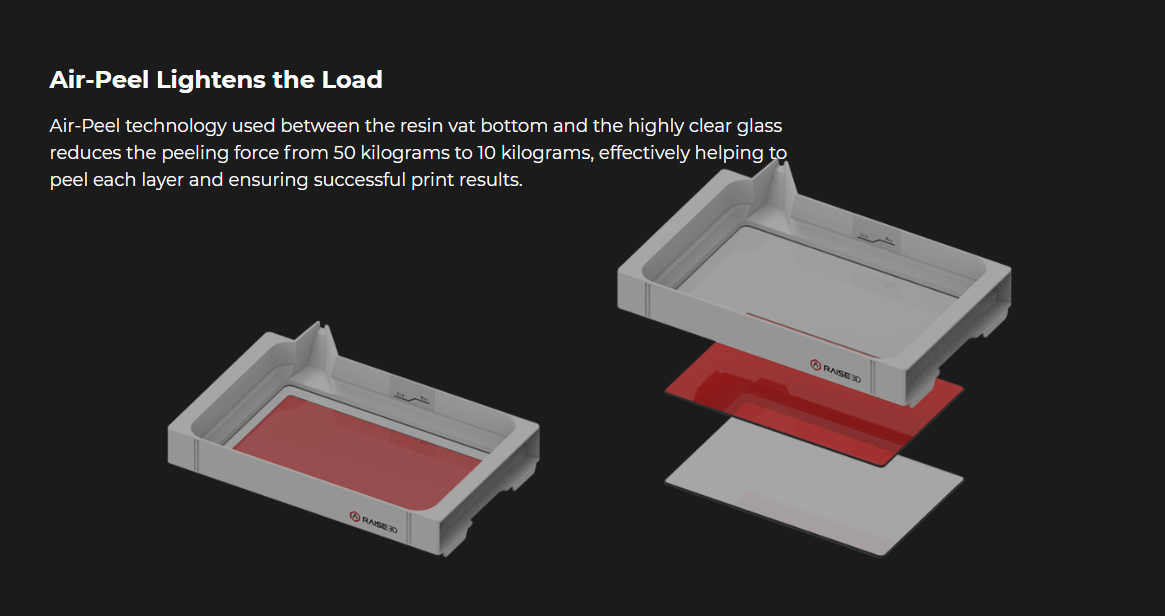

• Air-Peel technology decreases the amount of force exerted on the part to facilitate easy layer detachment, further improving the reliability of print results.

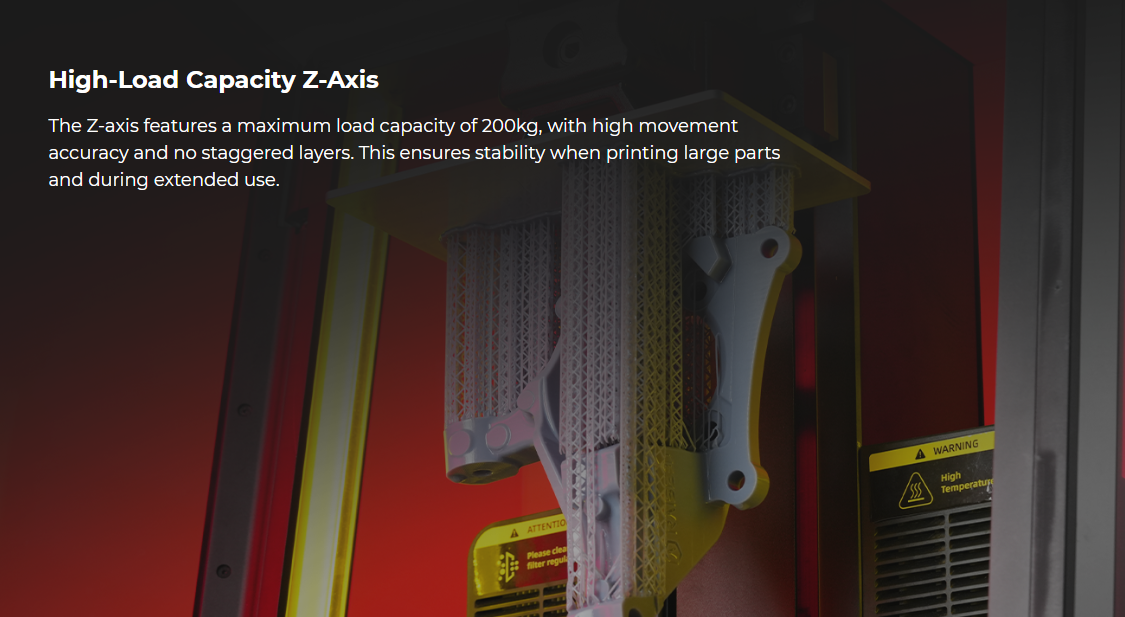

• Maximum part weight of 10 kg ensures high print quality in the Z-direction for any size print, which is supported by a heavy-duty Z-axis structure that can withstand up to 200 kg of static load.

Open Platform for Approved Resins

Raise3D continues to make innovations in material science, having developed a wide variety of DLP Resins for industrial applications optimized for the Raise3D DF2 resin printers. Raise3D proudly collaborates with top strategic partners such as Henkel and Forward AM, to expand the range of approved resins for DF2.

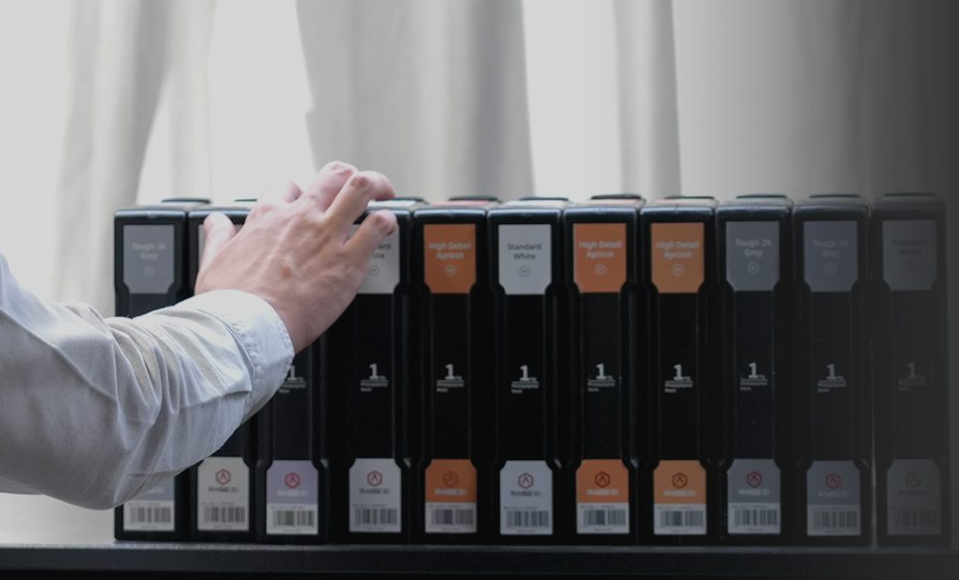

Resin Compatibility: Expanding Possibilities in 3D Printing

Raise3D High Performance Engineering Resins: Meet demands for customized small batch production of precise prototyping and industrial engineering parts.

ORP (Open Resin Program): The aim of the ORP is to open to third-party resin manufacturers to develop high-performance resins, including co-branding with BASF and Henkel, to provide customers with a wider range of resin options.

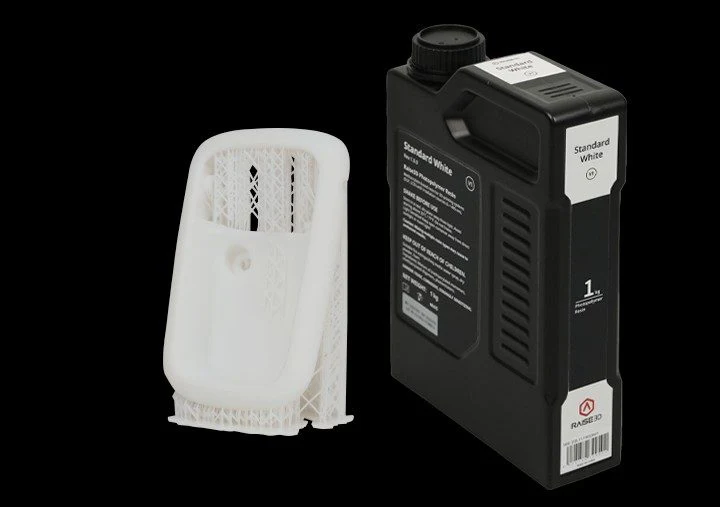

Standard Resin – Easy-to-print resin for prototyping and design

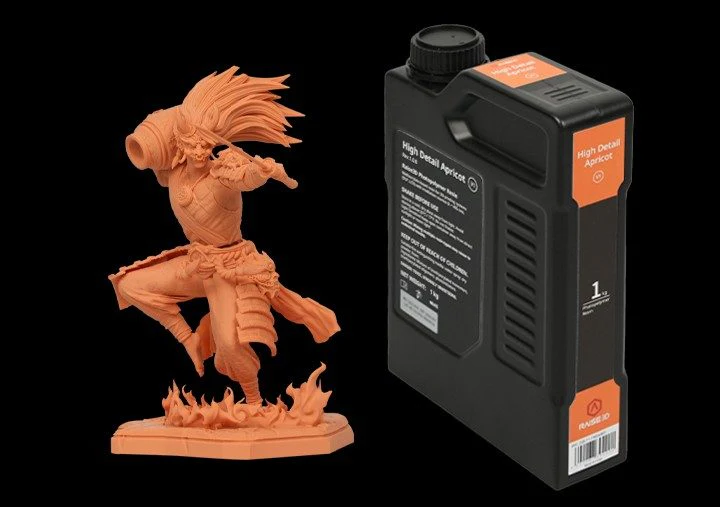

High Detail Resin – High-resolution material for detailed models

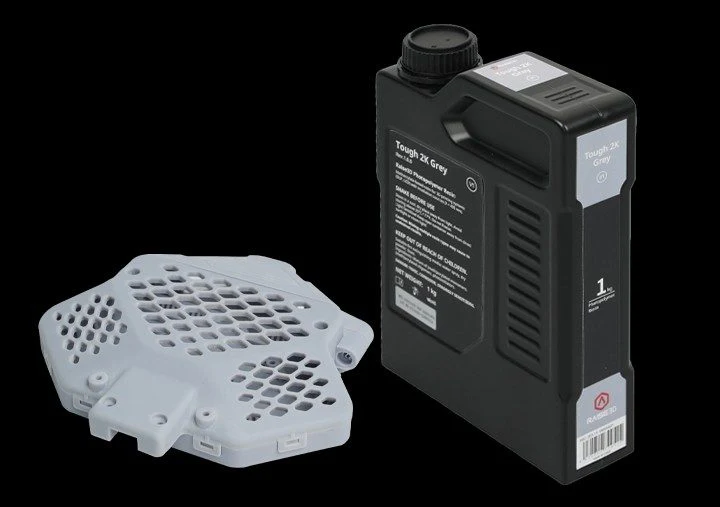

Tough 2K Resin – Tough and durable resin for functional applications

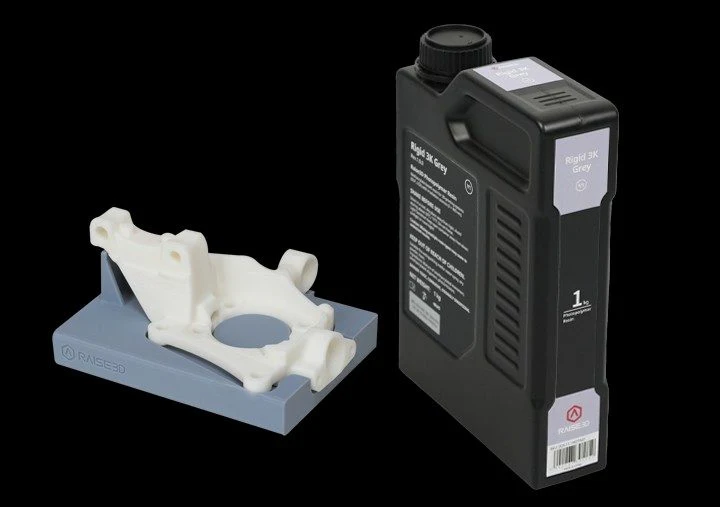

Rigid 3K Resin – Material with high strength, rigidity and heat-resistance

High Clear Resin – Suitable for applications working with optical or showcasing internal features

High Temp Resin – High temperature resistant material for harsh thermal environments

Co-branding Resins with Third-party Resin Manufacturers

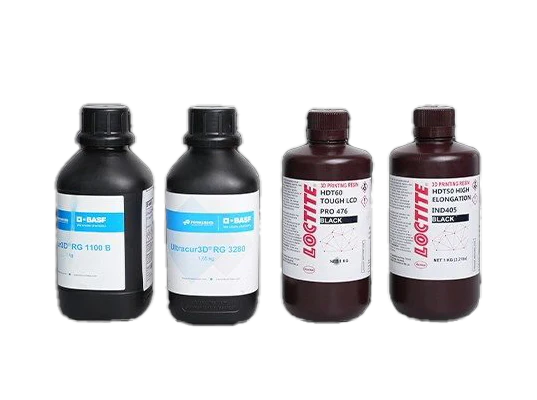

Raise3D has partnered with third-party resin manufacturers such as BASF and Henkel to develop co-branded resins, including LOCTITE 3D IND405™, and LOCTITE 3D PRO476™, Ultracur3D® RG 3280, and Ultracur3D® RG 1100 B. This collaborative effort makes these resins an ideal choice for applications ranging from prototyping to intricate engineering projects.

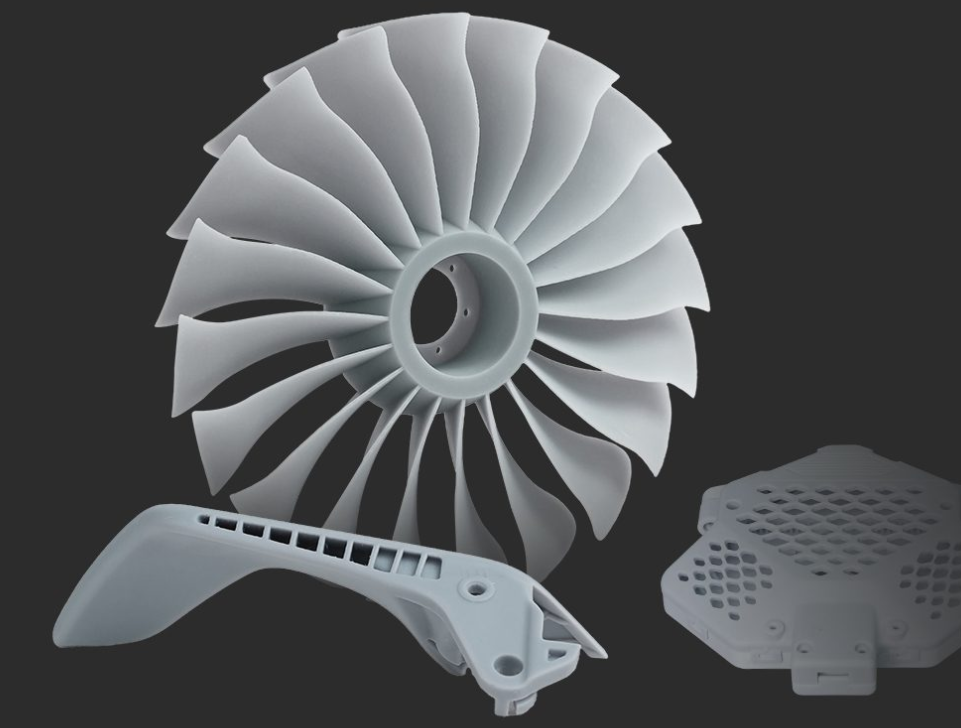

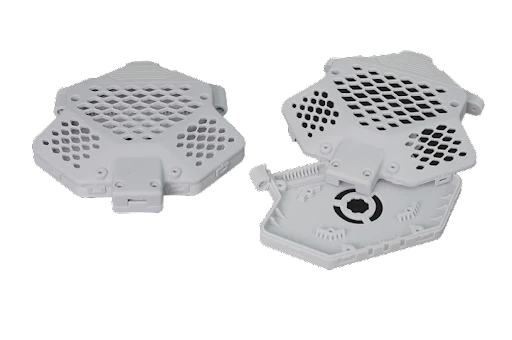

High-precision Printing Reproduces Every Tiny Detail

XY Resolution: 2560 x 1440

From intricate model designs to complex engineering prototypes, Raise3D DF2 printer adopts top performing optical components, so that every detail is captured with the utmost accuracy.

Click To View

Click To View

Click To View

Click To View

Click To View

Click To View

Click To View

Specifications
