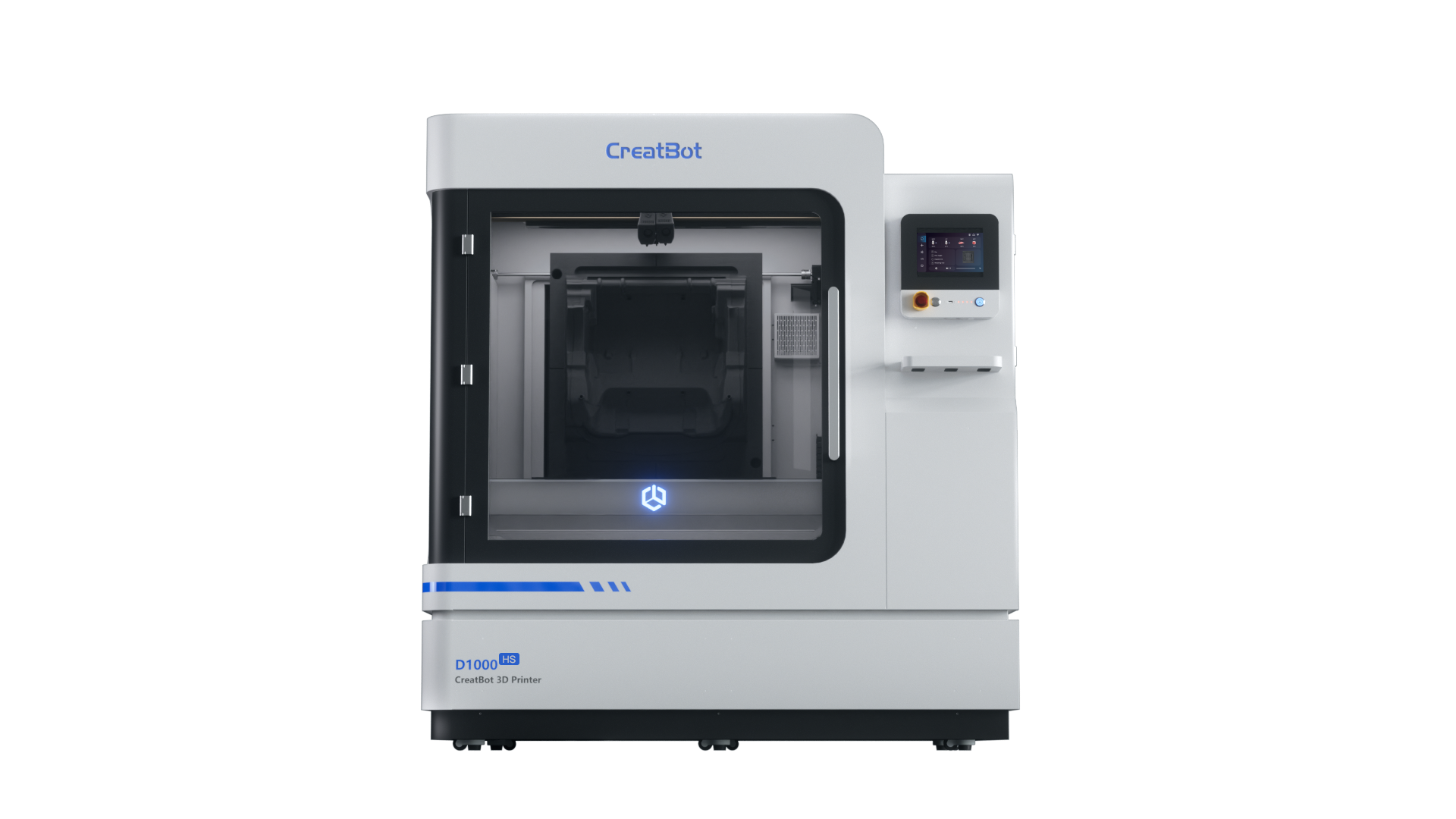

CREATBOT D1000 HS 3D PRINTER

The D1000 HS is the new upgraded version of the D1000.

This new high-speed printing version is based on the in-depth development of Klipper.

It adopts a new hotend with a flow rate of up to a record-breaking 90 mm³/s. The stable printing speed can reach 300mm/s, which is 5 times the speed of the D1000 model.

With a build volume of over 1000*1000*1000mm, it is the perfect machine for creating large and full size parts, prototype, tools, molds, jigs & fixtures in-house.

Within days you can have a fully functional, extra large, high quality prototypes.

CreatBot also manufactures large reels of PLA, ABS, ASA, PA-CF, etc which is well suited for extra large models and helps reduce the frequency of replacing filament during print jobs.

Need help? info@dream3d.co.uk / 02070888163

Add To Wishlist

View Wishlist

Ongoing Tech Support

Thousands of products available for next day delivery

Product Details

Pictures & Videos

Buying Options

Product details

Auto-rising Dual Extruders 420 ℃

D1000 HS is embedded with new smart auto-rising dual-extruder kit with hotend temperature up to 420 ℃, it adopts a new hotend with a flow rate of up to a record-breaking 90 mm³/s. The hotend can be replaced to different size one fastly. it is able to print not only huge prototypes made of ABS, ASA with fastest speed, but also PET-CF, UltraPA-CF and more high performance material with quick remove support materials for direct application. The dual-hotend is easy to maintain and affordable to replace.

Stability

The whole-steel body not only ensures the stability during printing, but also greatly extends working life.

The first batch of CreatBot 3d printers were produced with whole-steel bodies in the same way and have been working for over 9 years as of today with more than 30,000 hours of operation.

Case Study

Faurecia is a global advanced automotive system engineering and equipment supplier.

They use the CreatBot 3D printer D1000 model to design and develop automotive seat molds, and are widely used in Audi, VW, NISSAN and GM motors.

The molds in the video is their typical 3D printing product produced with D1000 3D printer. The Bowl and lid are required to withstand 100MPa so they use Nylon-carbon fiber filament with 50% infill. The D1000 print performance is always excellent and passed their strict testing requirements!

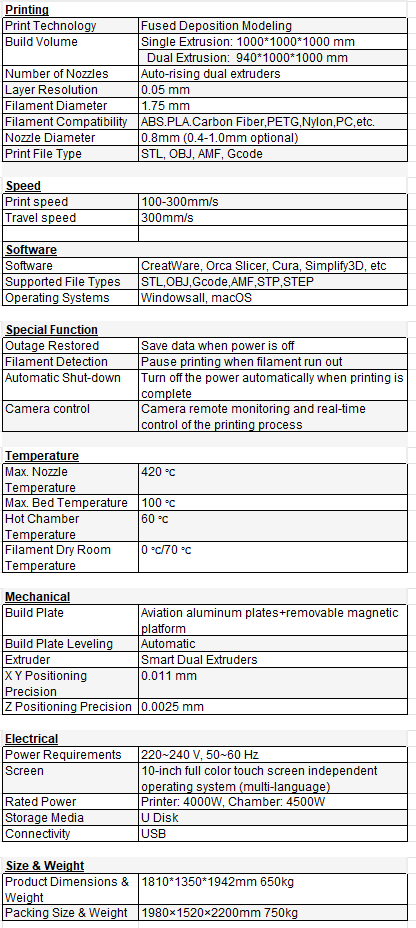

Specification

Printing
Print Technology	Fused Deposition Modeling
Build Volume	Single Extrusion: 100010001000 mm
Build Volume	Dual Extrusion: 94010001000 mm
Number of Nozzles	Auto-rising dual extruders
Layer Resolution	0.05 mm
Filament Diameter	1.75 mm
Filament Compatibility	ABS.PLA.Carbon Fiber,PETG,Nylon,PC,etc.
Nozzle Diameter	0.8mm (0.4-1.0mm optional)
Print File Type	STL, OBJ, AMF, Gcode
Speed
Print speed	100-300mm/s
Travel speed	300mm/s
Software
Software	CreatWare, Orca Slicer, Cura, Simplify3D, etc
Supported File Types	STL,OBJ,Gcode,AMF,STP,STEP
Operating Systems	Windowsall, macOS
Special Function
Outage Restored	Save data when power is off
Filament Detection	Pause printing when filament run out
Automatic Shut-down	Turn off the power automatically when printing is complete
Camera control	Camera remote monitoring and real-time control of the printing process
Temperature
Max. Nozzle Temperature	420 ℃
Max. Bed Temperature	100 ℃
Hot Chamber Temperature	60 ℃
Filament Dry Room Temperature	0 ℃/70 ℃
Mechanical
Build Plate	Aviation aluminum plates+removable magnetic platform
Build Plate Leveling	Automatic
Extruder	Smart Dual Extruders
X Y Positioning Precision	0.011 mm
Z Positioning Precision	0.0025 mm
Electrical
Power Requirements	220~240 V, 50~60 Hz
Screen	10-inch full color touch screen independent operating system (multi-language)
Rated Power	Printer: 4000W, Chamber: 4500W
Storage Media	U Disk
Connectivity	USB
Size & Weight
Product Dimensions & Weight	181013501942mm 650kg
Packing Size & Weight	1980×1520×2200mm 750kg
