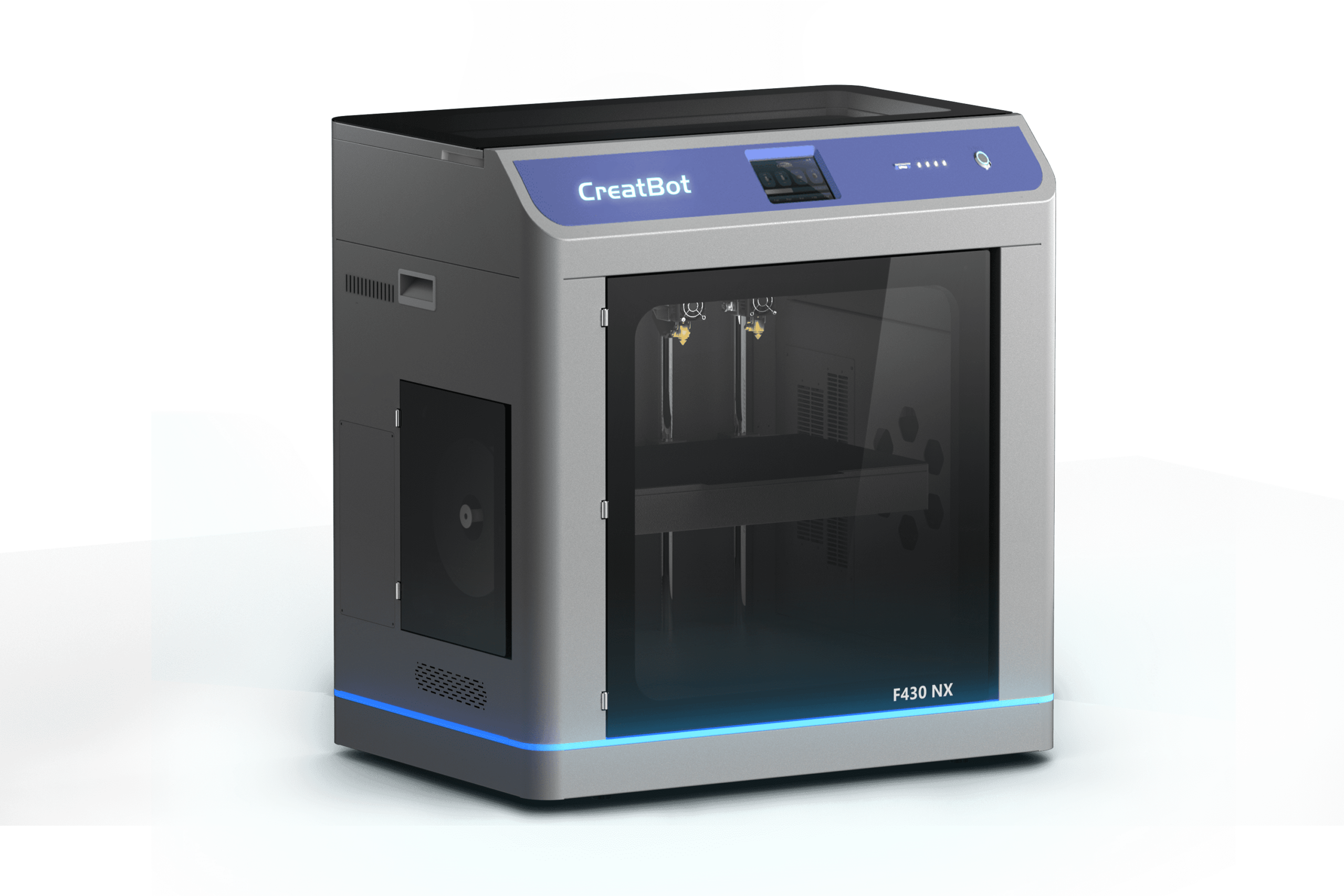

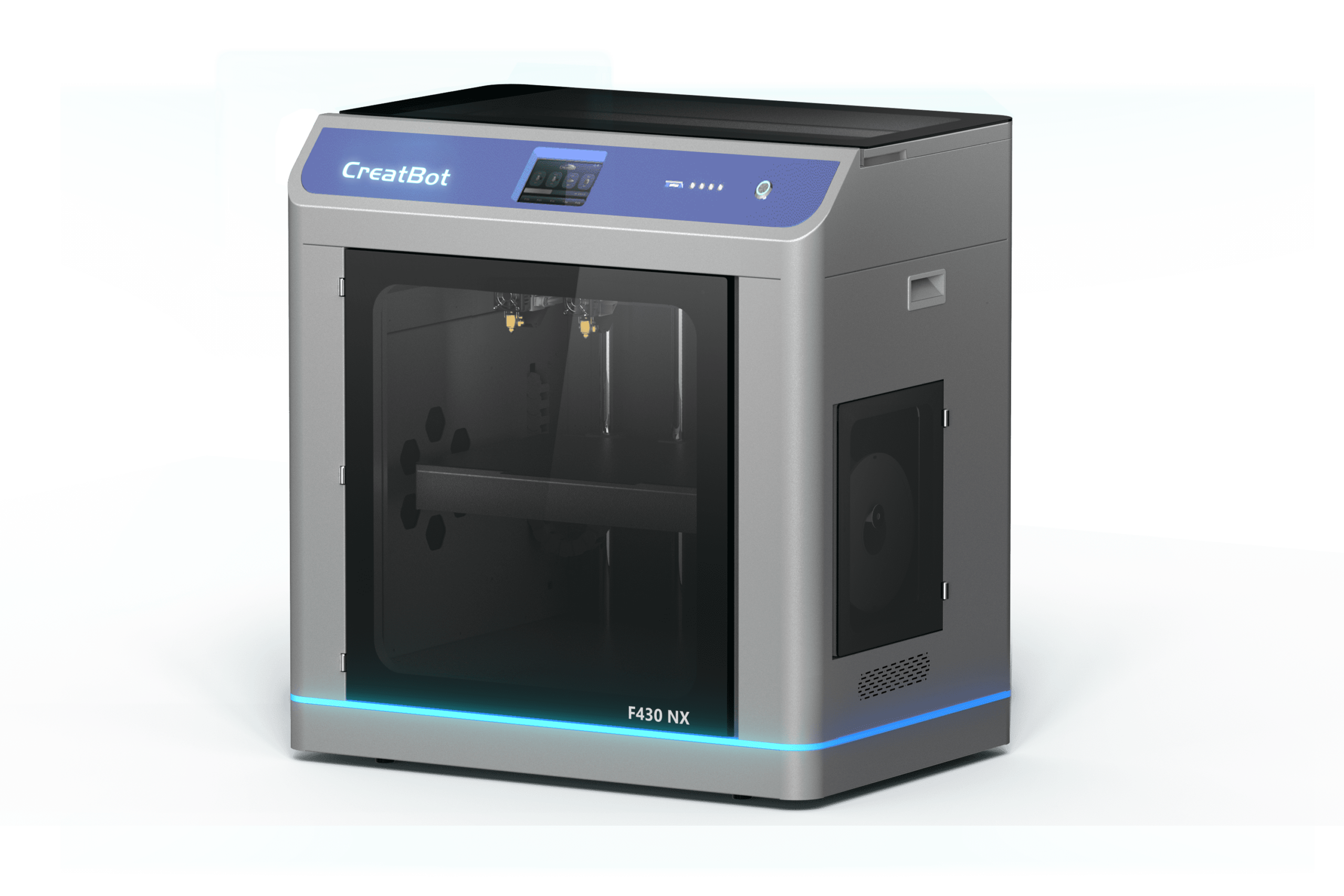

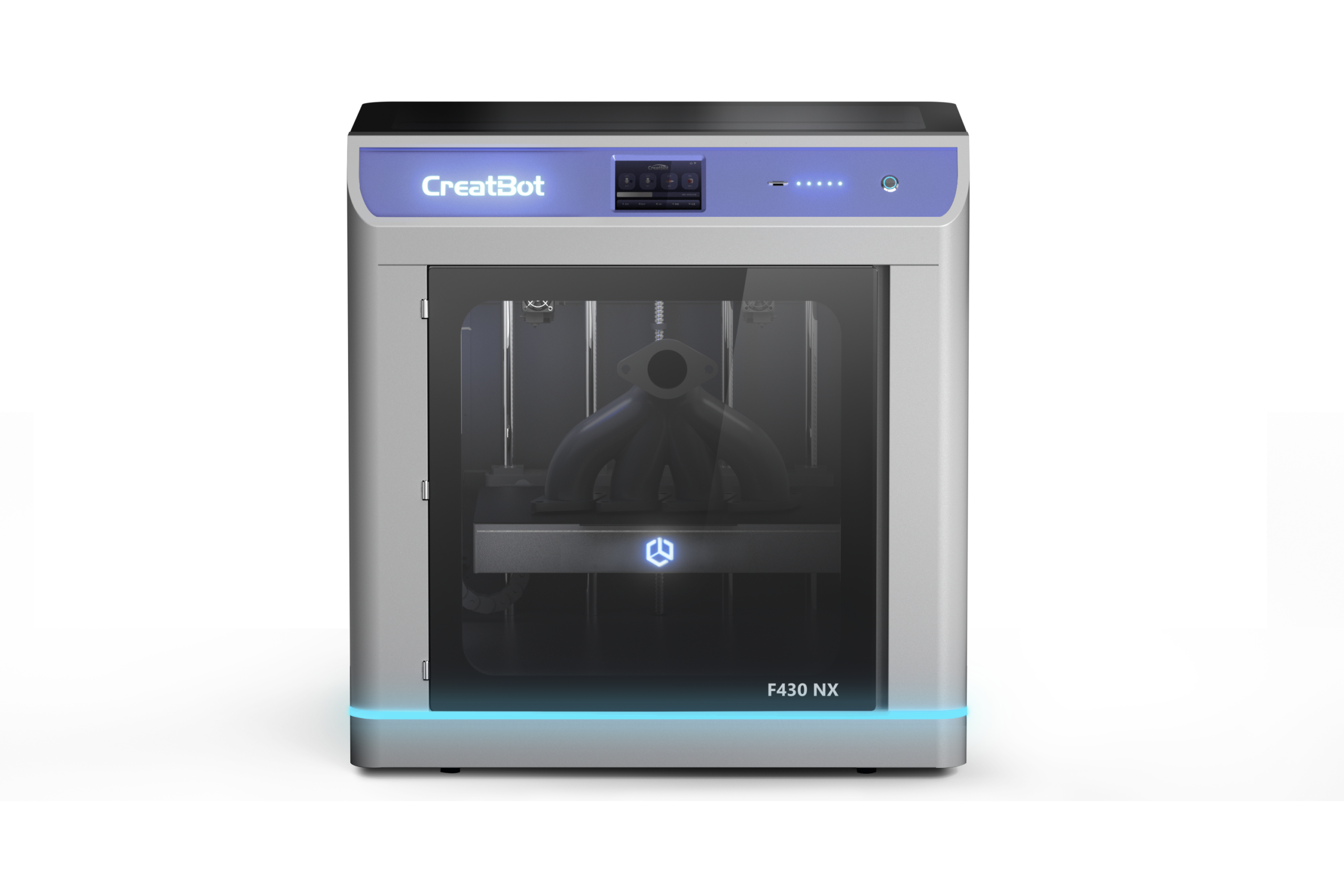

CREATBOT F430 NX 3D PRINTER
£4,582.50 (excl. VAT)
Add to cartCREATBOT F430 NX 3D PRINTER
£4,582.50 (excl. VAT)
The CreatBot F430 series has been proven to be one of the best-selling professional 3D printers.
The new generation F430 NX of this series has been released with a high-precision machined parts for the structural framework.
New independent dual-nozzle memory silicon carbide large-flow extrusion head enables it to be perfectly compatible with high-performance consumables and high-speed printing.
The operation process is simpler, and the 24/7 operation is even more stable.
£4,582.50 (excl. VAT)
£4,582.50 (excl. VAT)
Need help? info@dream3d.co.uk / 02070888163
or
Ongoing Tech Support
Thousands of products available for next day delivery
Product Details
Pictures & Videos
Buying Options
Product details
High temperature hotend up to 420°C
Using the latest technology of one-piece die-cast memory alloy hot end and super wear-resistant nozzle, temperature resistance up to 420°C. Compatible with PLA, ABS, ASA, PC, nylon, carbon fiber, and glass fiber materials. The nozzle aperture wear rate does not exceed 10% after printing carbon fiber materials for 2000 hours.
Independent Dual Extruders (IDEX)
This is the best solution for printing engineering-grade materials with independent support materials, ensuring the best quality of engineering-grade material printing. It also supports copy, mirror, and backup mode printing.
Big build volume
The printing size of single printing reaches 400*300*300mm, and the printing size with support materials reaches 360*300*300mm. The printing size is larger than that of most professional-grade products on the market.
Z axis reinforcement
The back side of the Z-axis is composed of a high-precision ball screw and 4 reinforced optical axes, with high-precision tight fit and synchronous movement. The surface of the model is uniform and free of impurities, improving the printing surface quality of engineering-grade materials.
Active heating of hot bed/chamber
The active heated bed heating temperature reaches 140°C and the active chamber heating temperature reaches 70°C. It effectively prevents the shrinkage and cracking of engineering-grade materials, allowing ABS, ASA, PC, Nylon, UltraPA-CF, etc. to be perfectly formed and the mechanical properties to be maximized.
Superior Dimensional Accuracy
The F430 NX is specifically designed with a tight combination of high-precision machined structures to maintain dimensional accuracy and tight tolerances when printing the largest parts in engineering-grade materials. Not only does the Method XL avoid warping and layer adhesion issues, but it creates massive parts with industrial-grade precision.
High-resolution touch screen
Adopting 5-inch high-resolution capacitive touch screen, it has no delay in operation, delicate touch, user-friendly interface and convenient operation and management.
Specification
PRINTING | |
Print Technology | FFF |
Build Volume | Single printing: 400*300*300mm |
Dual printing: 360*300*300mm | |
Copy mode:225*300*300mm | |
Mirror mode:190*300*300mm | |
Number of Nozzles | Dual |
Independent dual nozzles | Yes |
Min layer height | 0.05mm |
Filament Diameter | 1.75 mm |
Filament Compatibility | PLA, ABS, Carbon, Nylon, Ultra-PA, UltraPA-CF, PET-CF, PC, TPU, ASA, PETG, etc. |
Nozzle Diameter | 0.4mm (0.3 0.5 0.6 0.8 1.0mm) |
Print File Type | GCODE, STL, STEP |
TEMPERATURE | |
Max. Nozzle Temperature | 420 ℃ |
Max. Bed Temperature | 140 ℃ |
Max. Chamber Temperature | 70 ℃ |
SPEED | |
Printing speed | 50-300mm/s |
ELECTRICAL | |
Power Requirements | 240V, 50-60Hz / 110V , 50-60Hz |
Max. Power | 240V: 3200W / 110V: 2500W |
Screen | 5″ Touch Screen |
Connectivity | USB/USB disk / WiFi |
SOFTWARE | |
Software Bundle | CreatWare, Simplify 3D, Cura,Slice 3r |
Supported File Types | STL, OBJ, AMF |
Operating Systems | Windows All; Mac OS |
SPECIAL FUNCTION | |
Outage Restored | Sava data when power is off |
Filament Detection | Pause printing when filament clock or run out |
Automatic leveling bed | Yes |
Automatic Shut-down | Turn off the power when printing is complete |
Camera Control | Yes |
WIFI &Ethernet | Yes |
Breathing light | Yes |
Back up model | Yes |
HARDWARE | |
Air filter | HEPA+Carbon |
Print bed | Removable magnetic platform( base on high-precision aviation aluminum plate) |
Print surface | PEI sheet+ PEI coating |
Mainboard | 32 bits |
X/Y min&max | Photoelectric switch |
SIZE & WEIGHT | |
Product Dimensions & Weight | 780* 550 800mm 78kg |
Packaging Dimensions & Weight | 865* 635*1055mm 107kg |
